3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc
SOLD OUT
3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc
SOLD OUT
Sale $42.36 / EACH
Reg.$52.95
20% OFF FOR BLACK FRIDAY SALE!
-
Key Features
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 140 Watts(280 Watts Peak)
- Impedance: 4 Ohm ~ 105dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN4VC
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-TWN4
Nominal Diameter
3"
Nominal Impedance
4 Ohm
Peak Power Handling
280W
Program Power Handling
140W
AES Power Handling
70W
Sensitivity (1w/1m)
105dB
Frequency Response
1.5KHz-20KHz
Recommended Hi Pass Crossover
2KHz
MOTOR
Voice Coil Diameter
1"/25.4mm
Voice Coil Former Material
KSV
Winding Material
CCAR
Diaphragm Material
PEN
Magnet Material
Neodymium
Magnet Size
2" x 0.2"
Body Material
Aluminum
Bullet Material
CNC Aluminum
MEASUREMENT
Overall Diameter
2.95"/75mm
Overall Depth
1.81"/45.9mm
Front Mount Baffle Cutout
2.05"/52mm
Mounting Depth
1.13"/28.7mm
Gross Single Unit Weight (lb)
0.8
Single Unit Box Dimensions W x L x H (Inches)
3.8 x 3.3 x 2.2
Quantity of Units in Master Carton
30
Gross Master Carton Weight (lb)
25
Master Carton Dimensions W x L x H (Inches)
18.1 x 9.1 x 7.9
-
Product Overview
Product Overview

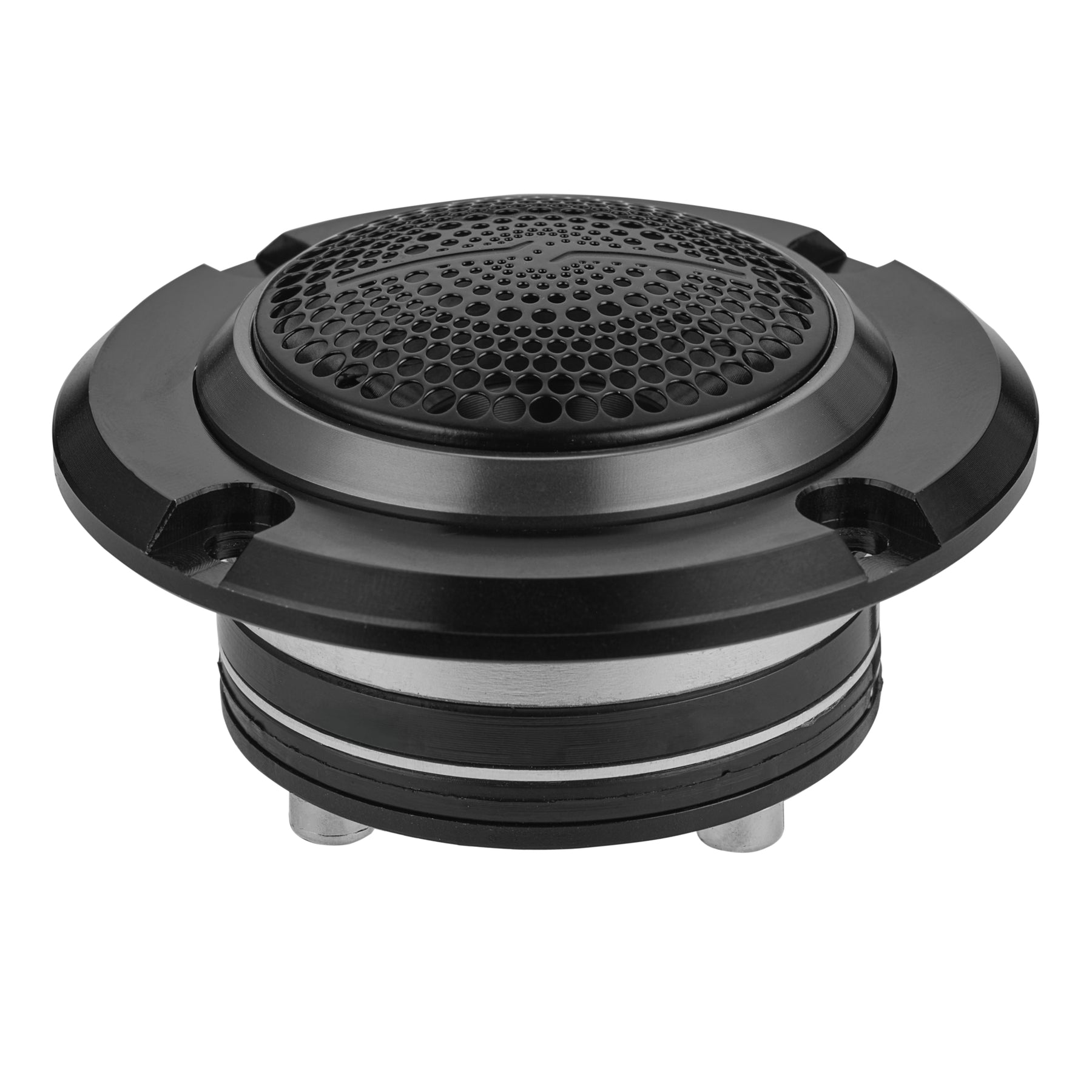

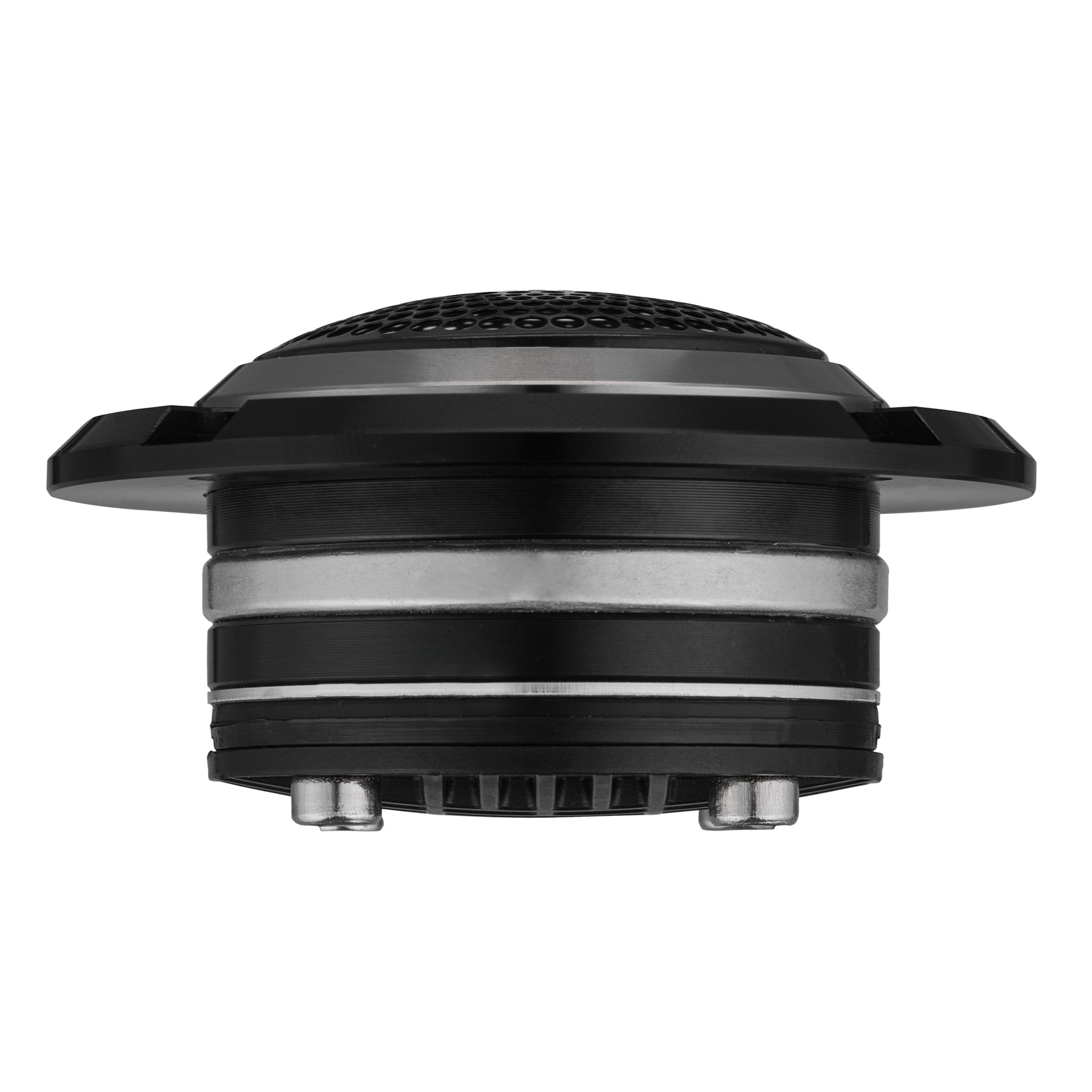

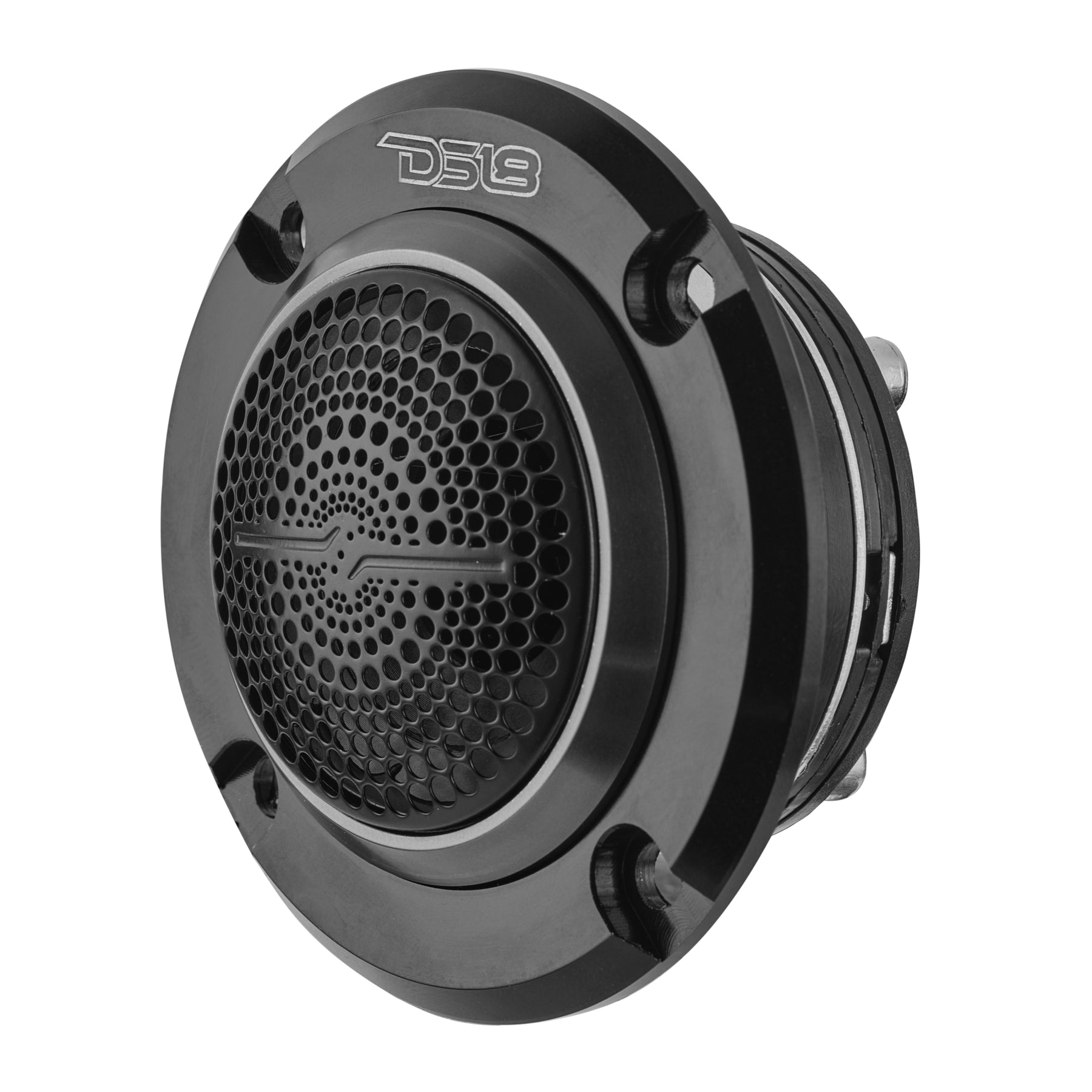

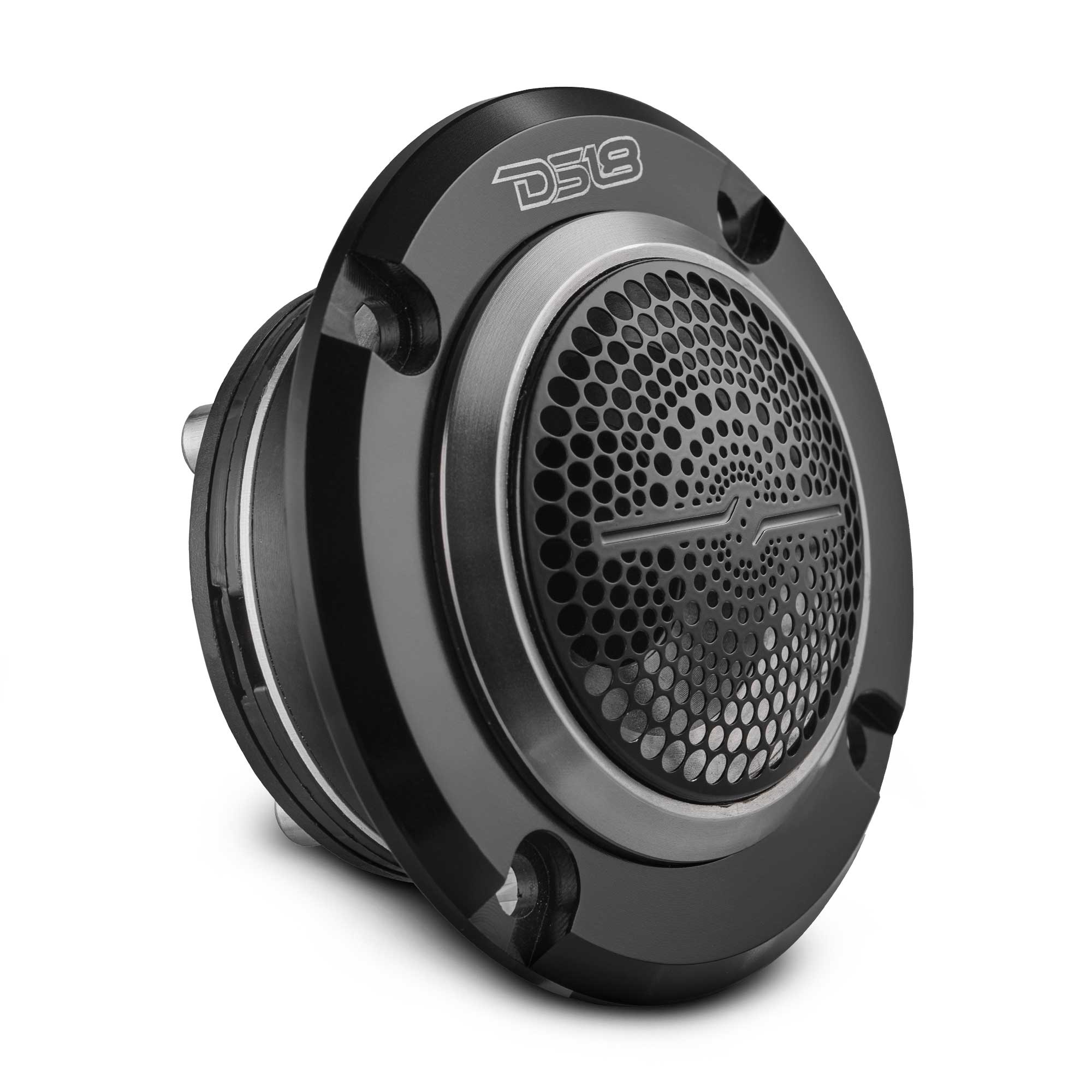

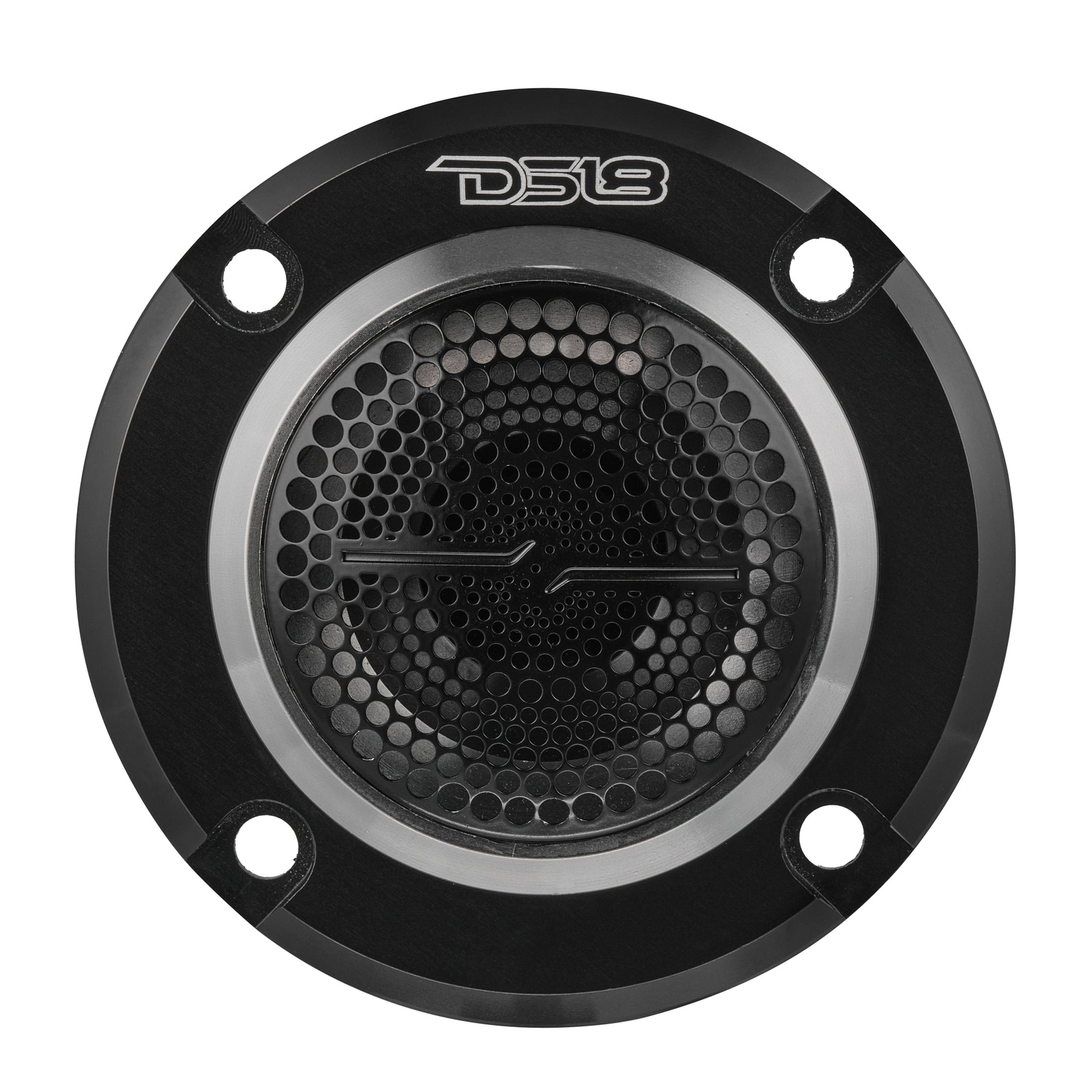

DS18 PRO-TWN4 3" High Compression Neodymium Hybrid Driver/Tweeter
The PRO-TWN4 handles 70W AES, 140W Program, and 280W MAX, offering dynamic highs that cut through any mix. Its 1-inch PEN (Polyetherimide) voice coil offers clean, distortion-free sound at all volume levels.
Lightweight Neodymium Magnet Efficiency
Built with a strong but lightweight neodymium magnet, this tweeter’s sensitivity has been maximized (105dB). This means louder, clearer sound with less power: making it ideal for a wide range of setups.Safe & Reliable with Included Bass Blocker

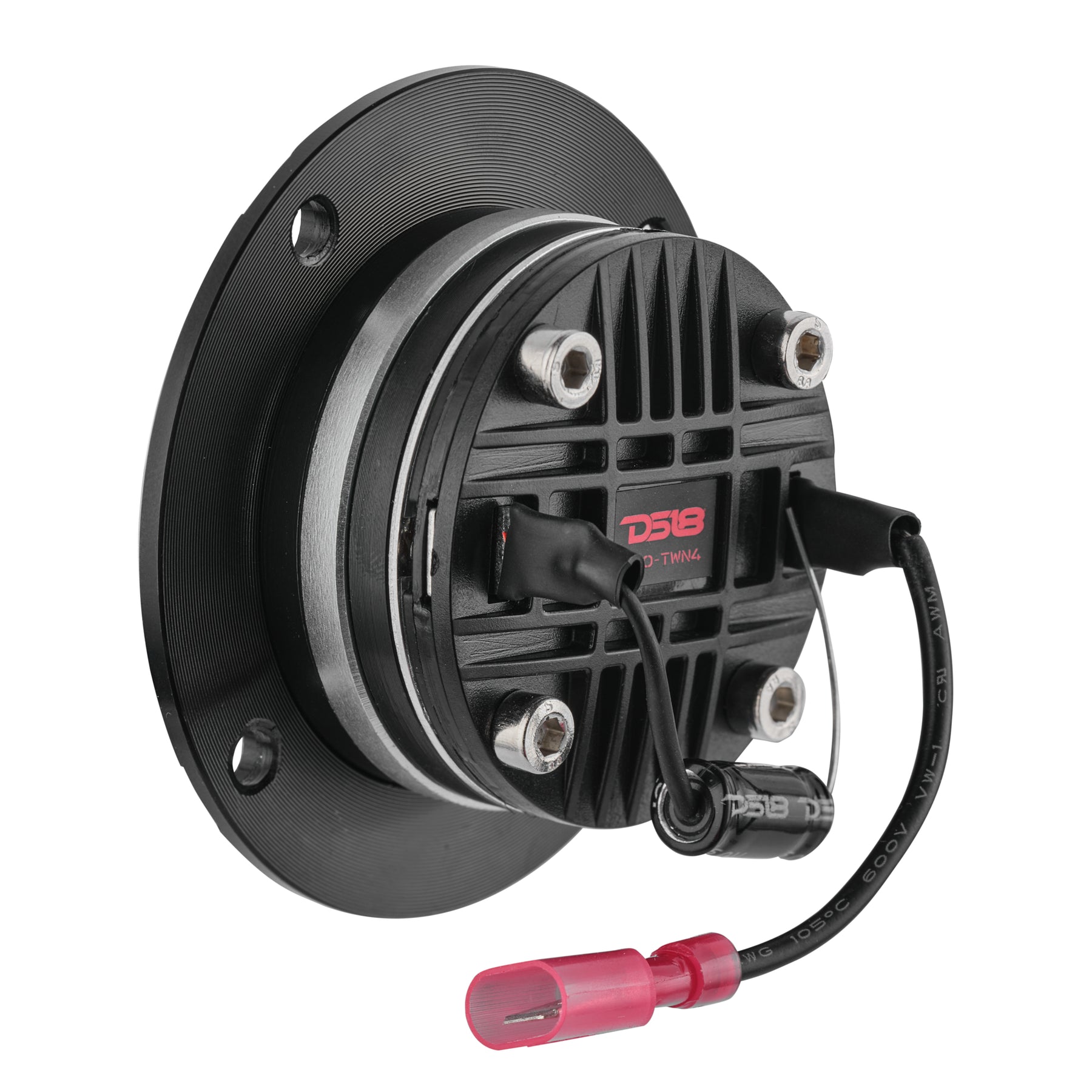

Each PRO-TWN4 includes a bass blocker to guard the tweeter from damaging low frequencies. This safeguards your system and guarantees longevity, letting you push your audio to the limits worry-free.The PRO-TWN4 combines power and clarity to elevate your soundstage. Upgrade to high performance today!
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc
Default Title
Related products
BLACK FRIDAY SALE

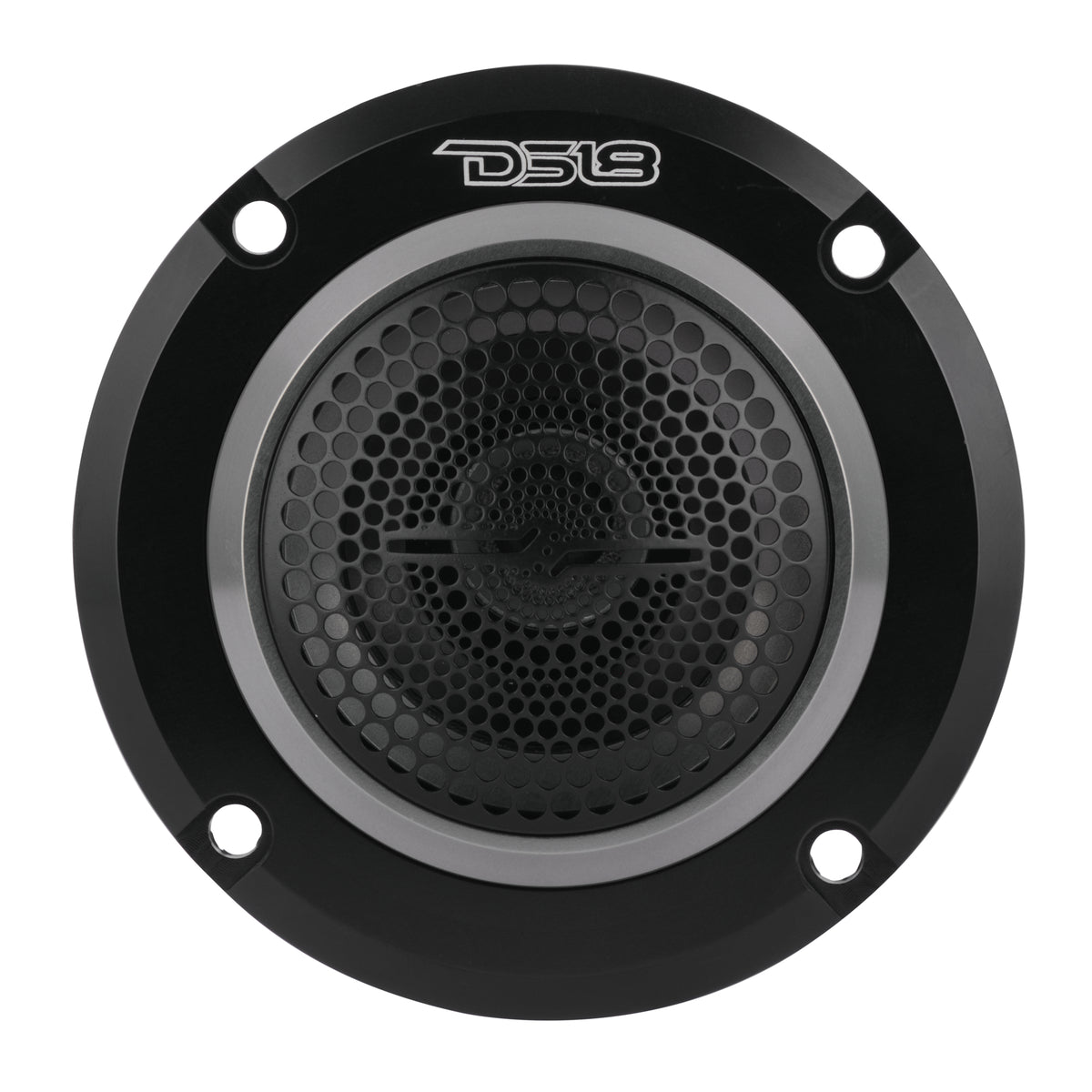

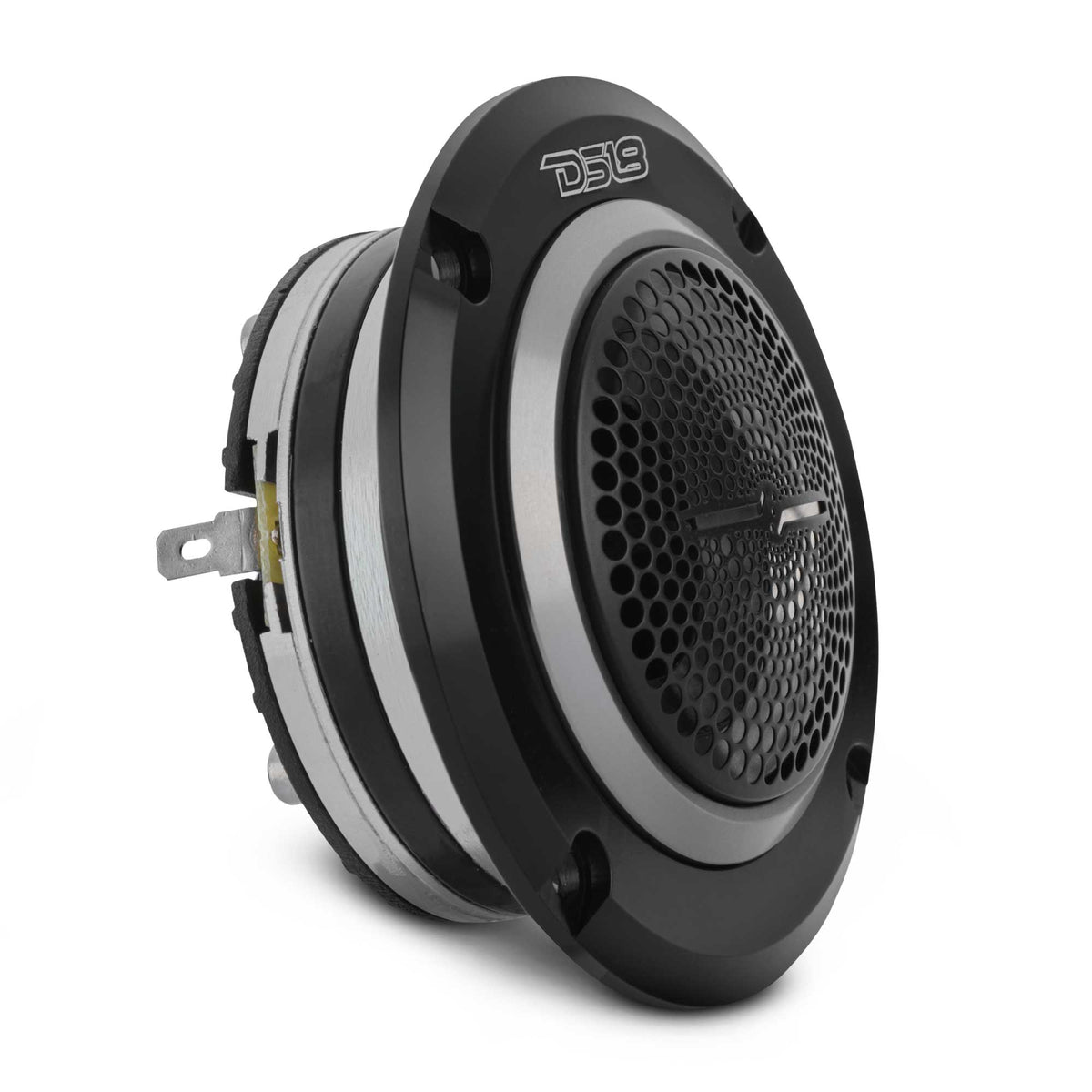

- 3.6" High Compression Hybrid Driver/Tweeter
- RMS Power: 200 Watts (400 Watts Peak)
- Impedance: 4 Ohm ~ 107dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN5VC
- 3.6" High Compression Hybrid Driver/Tweeter
- RMS Power: 200 Watts (400 Watts Peak)
- Impedance: 4 Ohm ~ 107dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN5VC
BLACK FRIDAY SALE

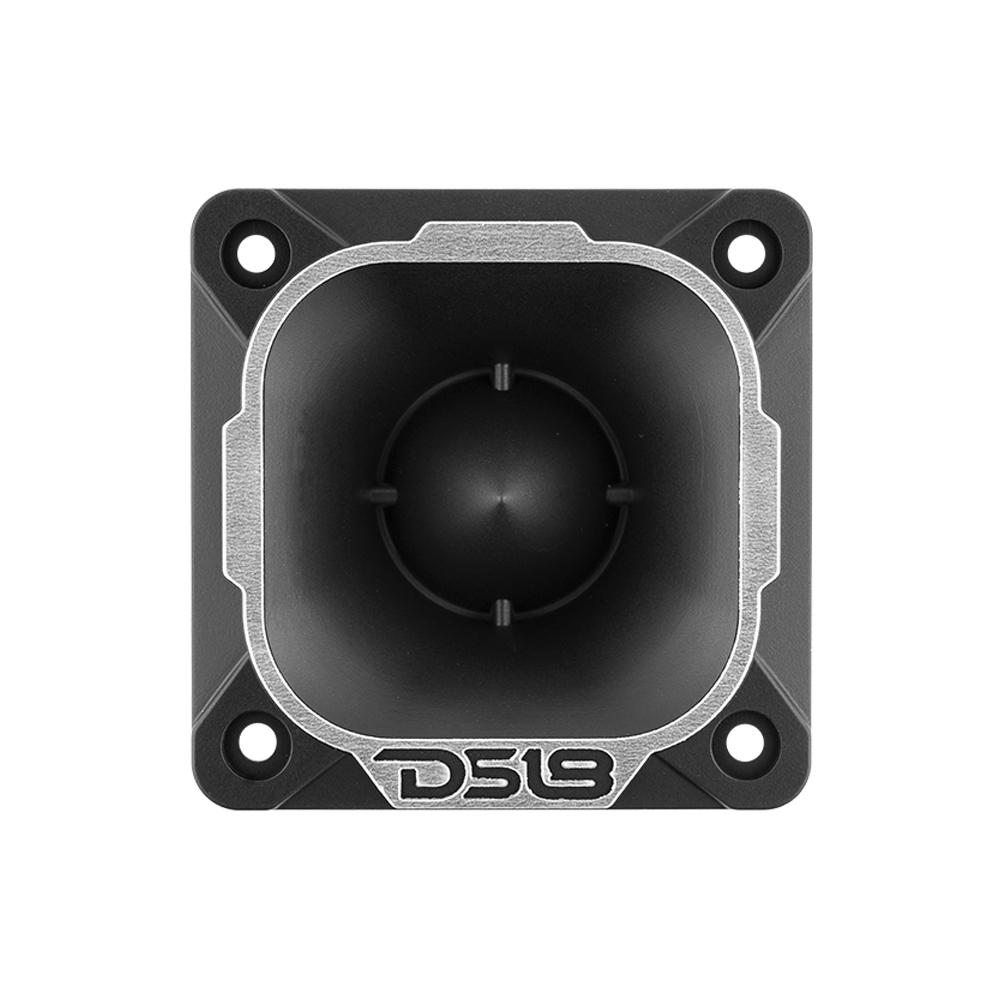

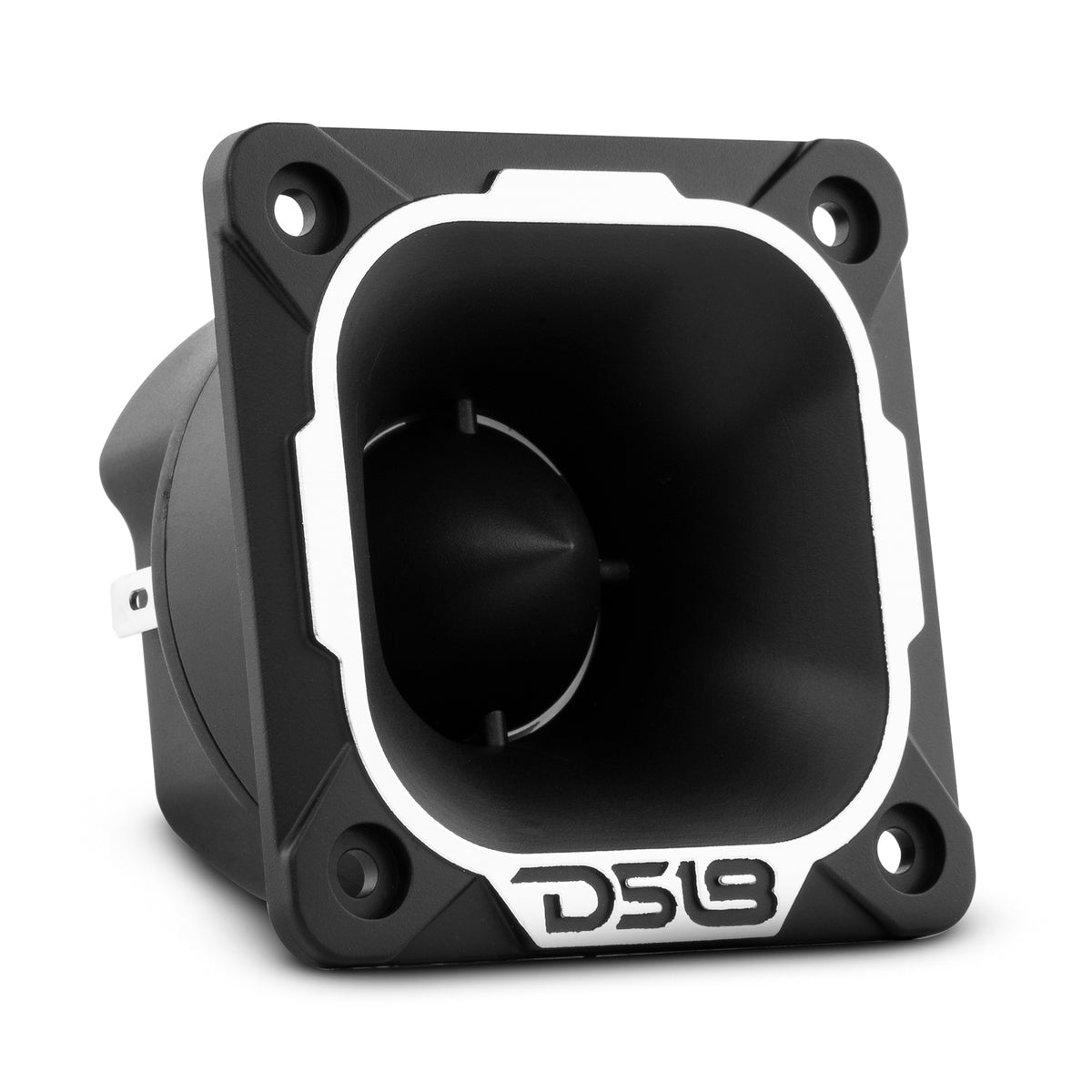

- 2.5" High Compression Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 107dB
- Neodymium Magnet
- Flush Style Mount
- Single
- 2.5" High Compression Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 107dB
- Neodymium Magnet
- Flush Style Mount
- Single
BLACK FRIDAY SALE

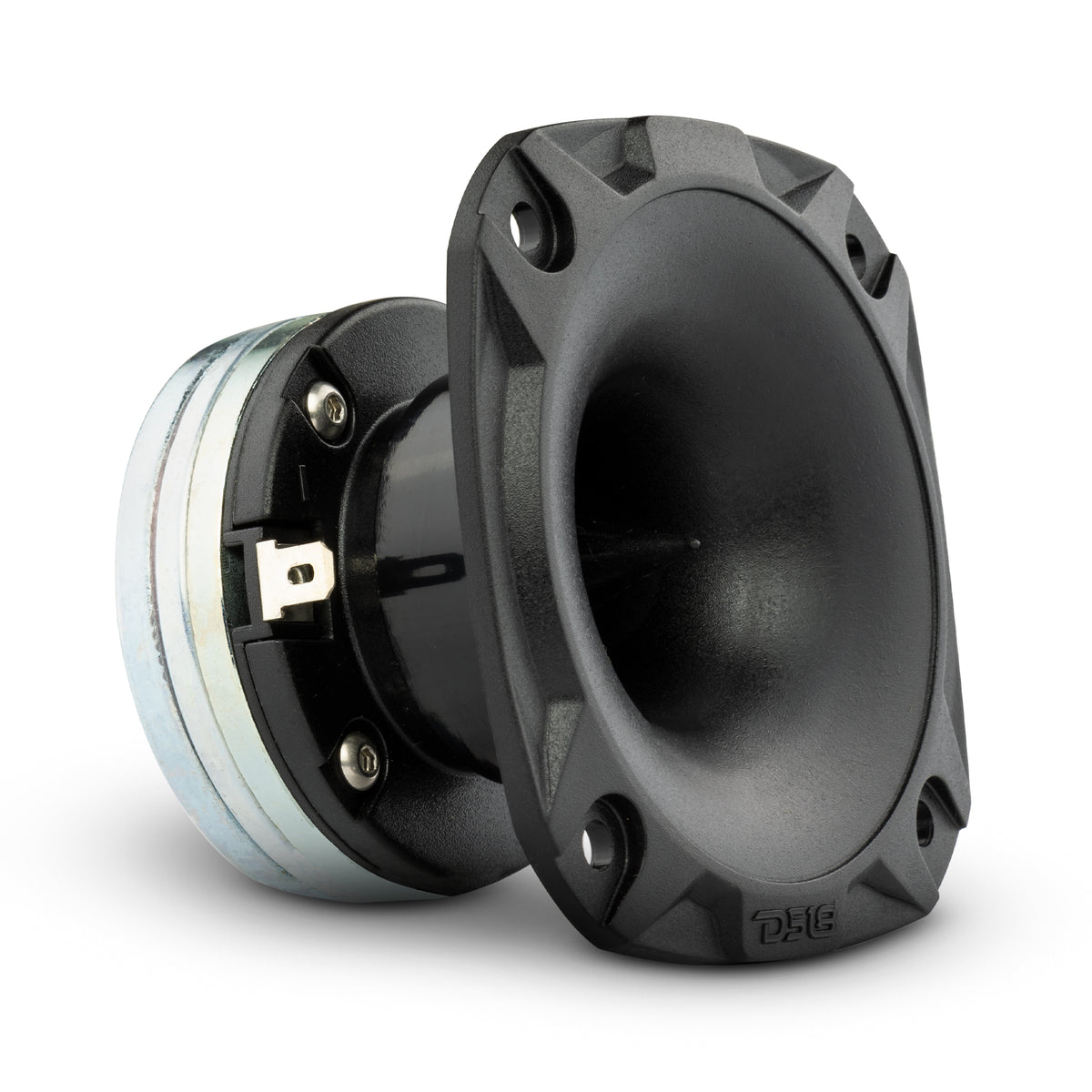

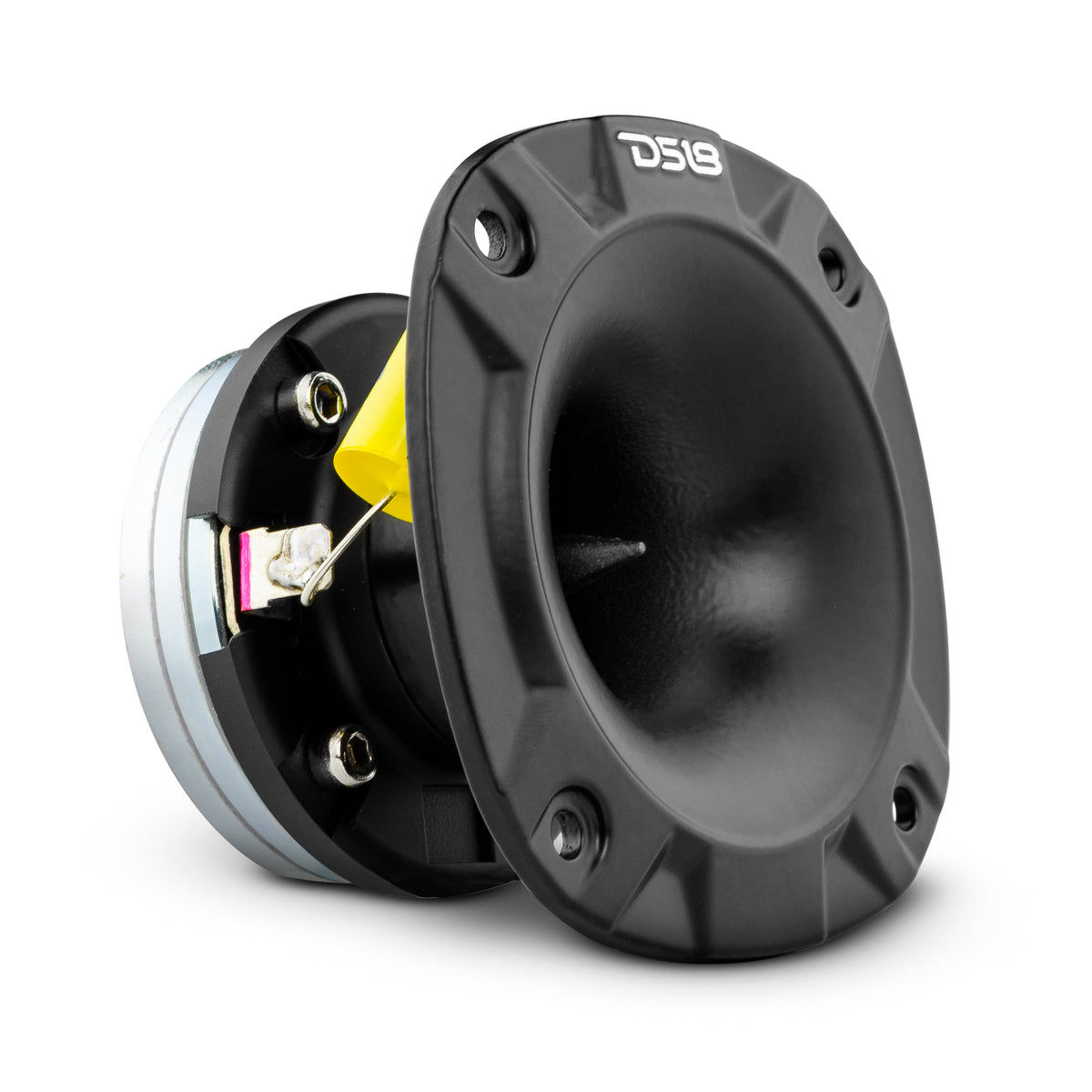

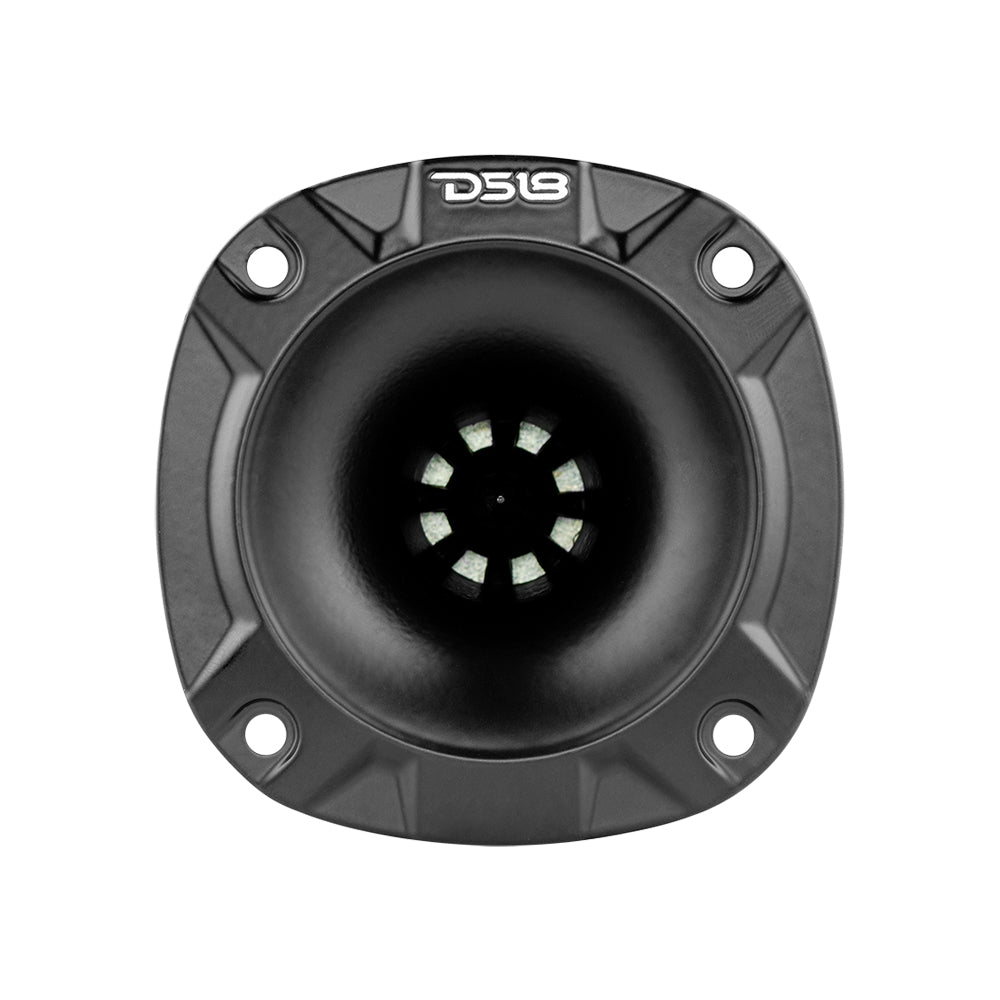

- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
BLACK FRIDAY SALE

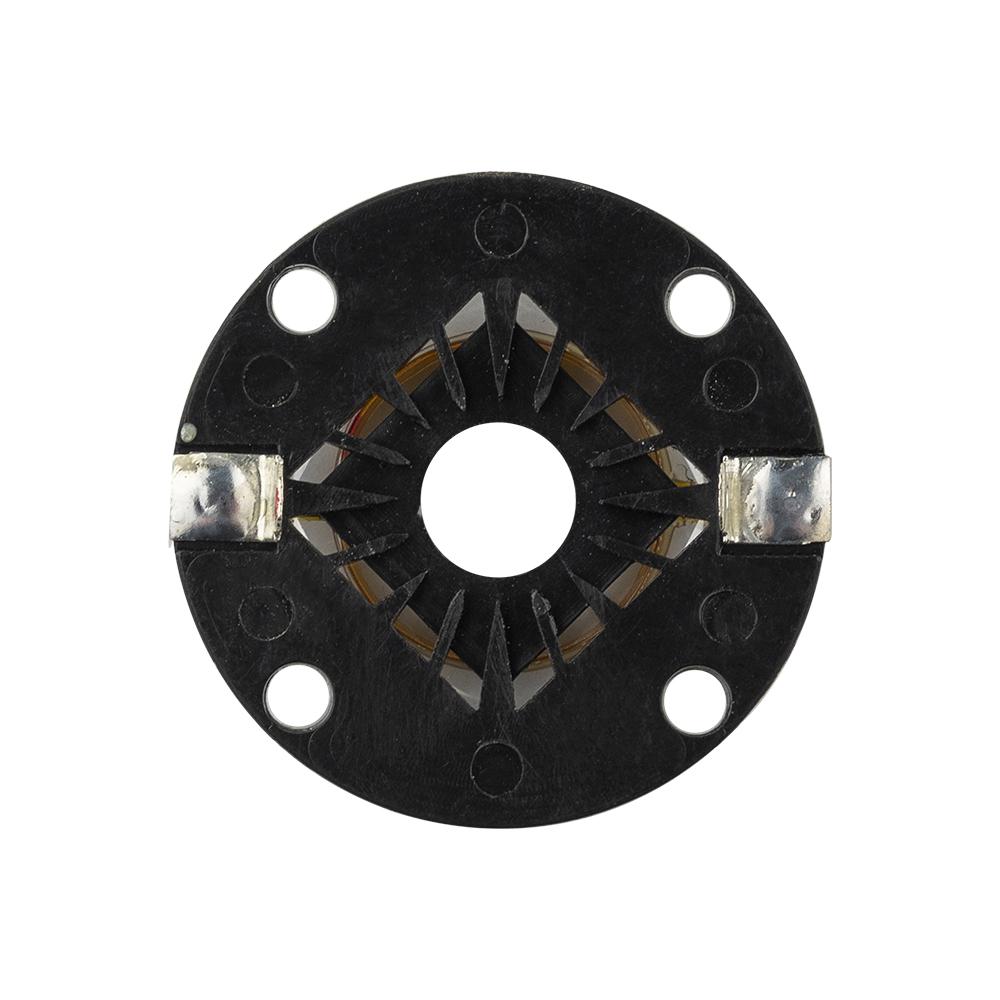

- 1" Replacement Diaphragm
- Pen
- Impedance: 4 Ohm
- For PRO-TWN4
- Single
- 1" Replacement Diaphragm
- Pen
- Impedance: 4 Ohm
- For PRO-TWN4
- Single
BLACK FRIDAY SALE
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
- 3" High Compression Hybrid Driver/Tweeter
- RMS Power: 100 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 108dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN2VC
BLACK FRIDAY SALE
Impedance:

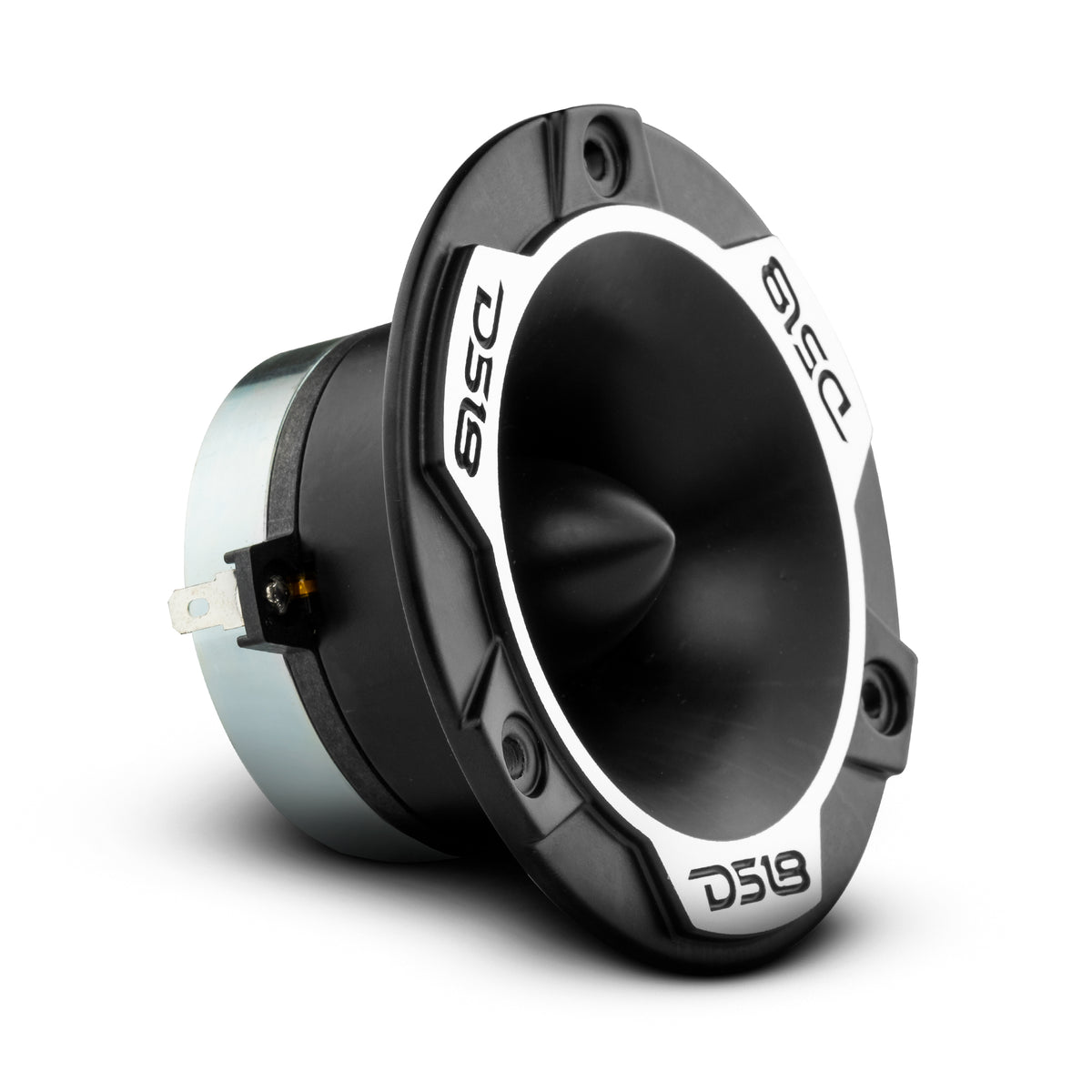

- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
BLACK FRIDAY SALE
Impedance:

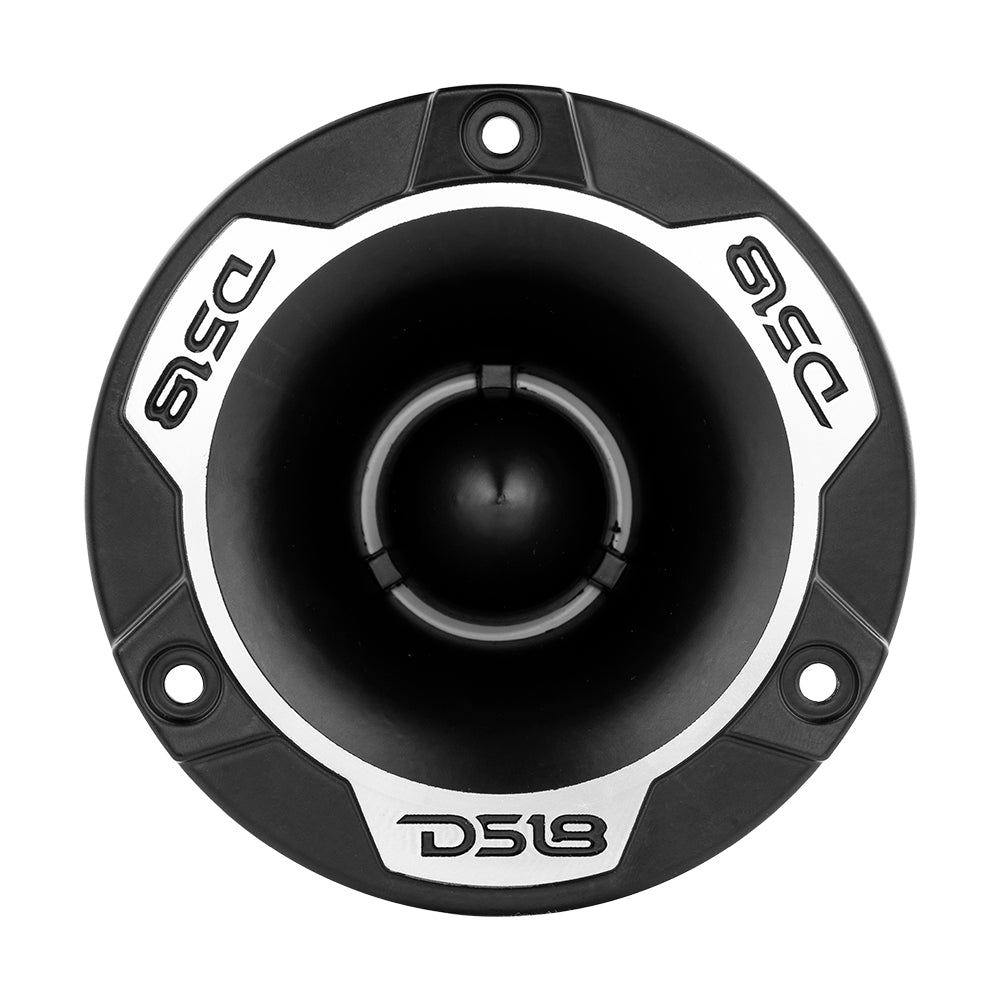

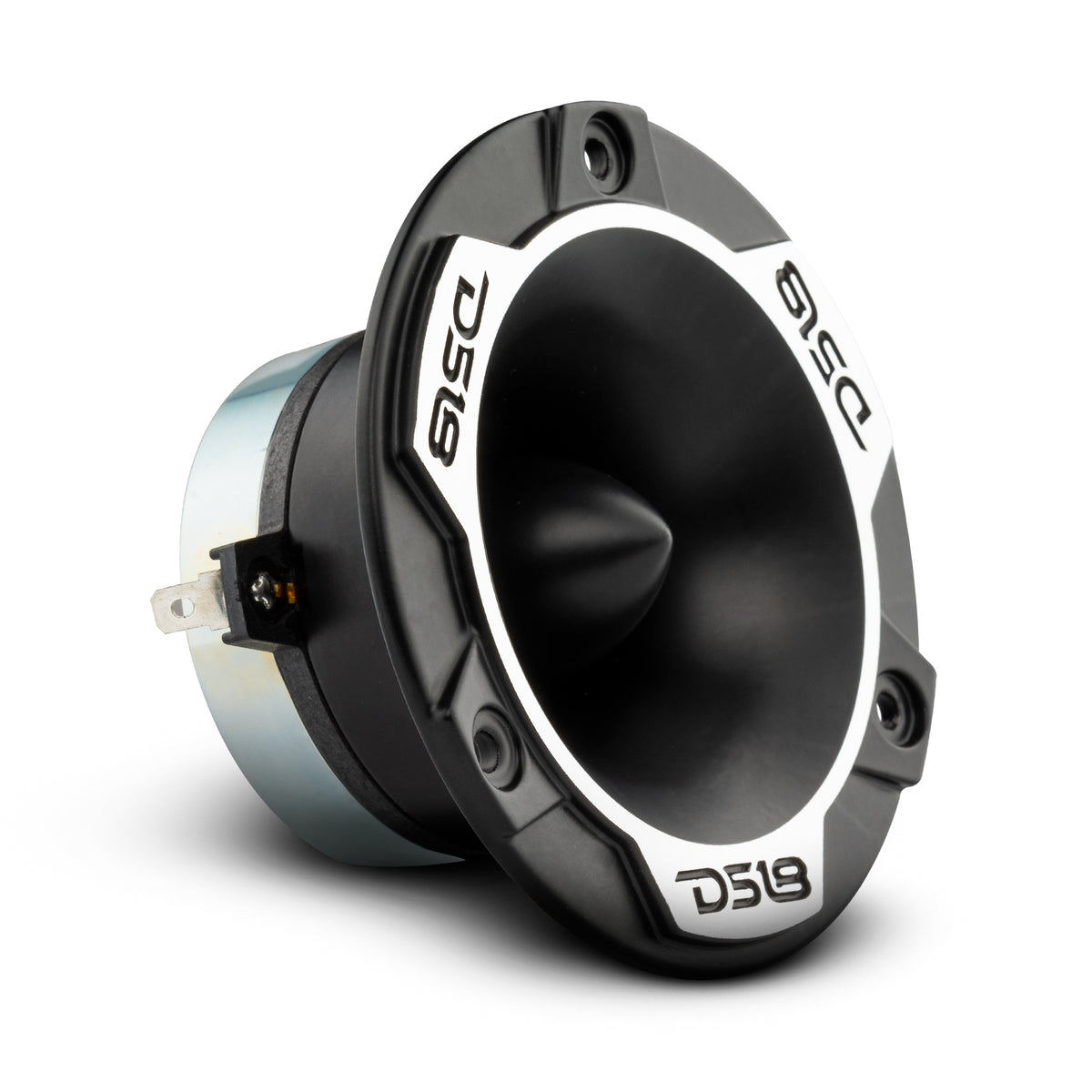

- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
BLACK FRIDAY SALE
Impedance:
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
BLACK FRIDAY SALE
Impedance:
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
BLACK FRIDAY SALE
Impedance:
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 4 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Mount
- Easily Repaired With The PRO-TWN6.4VC
BLACK FRIDAY SALE
Impedance:
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
- 4" High Compression Tweeter
- RMS Power: 150 Watts(300 Watts Peak)
- Impedance: 8 Ohm ~ 109dB
- Neodymium Magnet
- Flush Style Magnet
- Easily Repaired With The PRO-TWN6.8VC
BLACK FRIDAY SALE

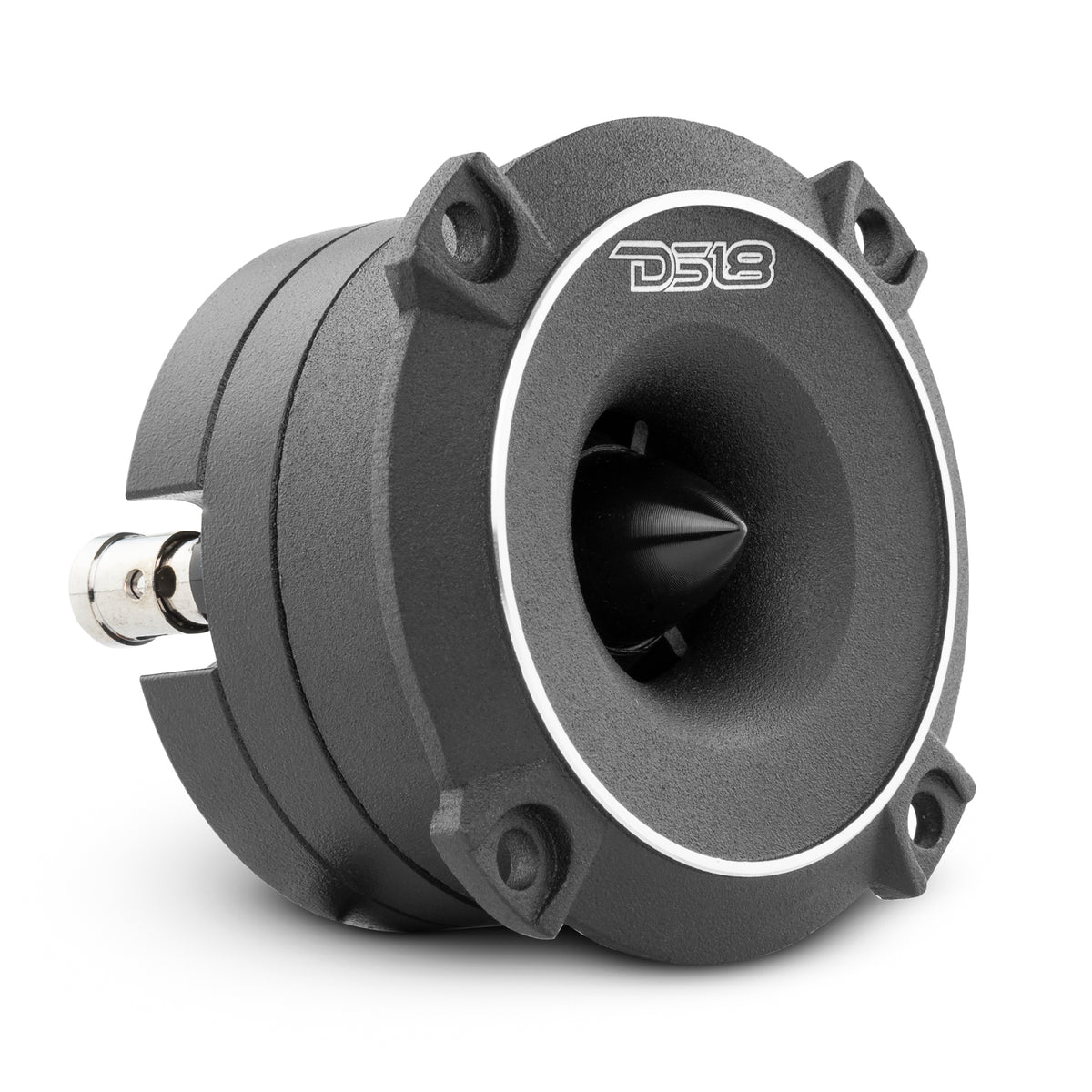

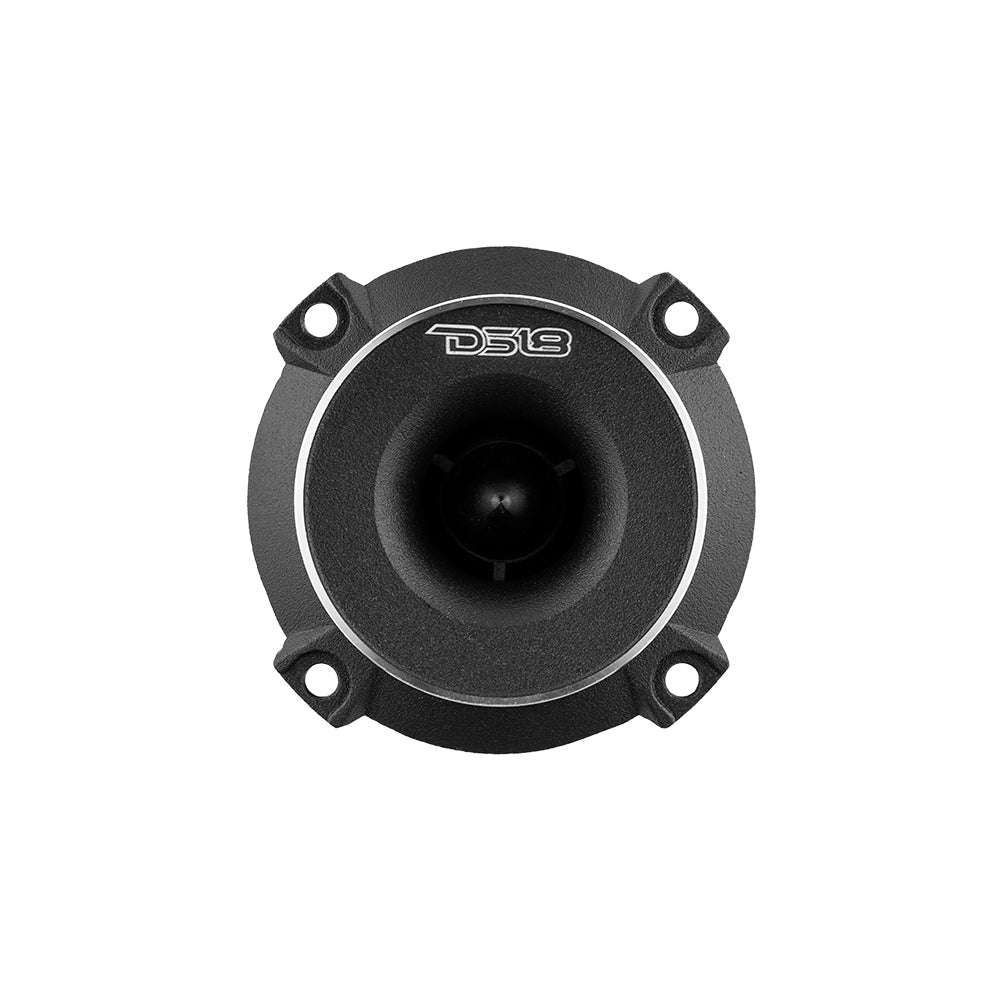

- 3" High Compression Slim Bullet Tweeter
