PRO-EXL 8" Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
SOLD OUT
PRO-EXL 8" Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
SOLD OUT
Sale $142.76 / EACH
Reg.$167.95
15% OFF FOR Labor Day Sale!
-
Key Features
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
-
Technical Data - Manual
DOWNLOAD THE USER MANUAL
Load More Show LessSPECS
SKU
PRO-EXL84
Nominal Diameter
8"
Nominal Impedance
4 ohms
RMS Power Handing
400W
Maximum Power Handing
800W
Sensitivity (1w/1m)
97dB
Frequency Response
100Hz-10KHz
Recommended Hi Pass Crossover
130 Hz
SPECS
Voice Coil Diameter
2" / 50.8 mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Basket Material
Aluminum
Magnet Weight
49oz
THIELE & SMALL PARAMETERS
Vas
7.77L
Xmax
9.2 mm
Fs
100.8 Hz
Qms
4.887
Qes
0.461
Qts
0.461
Re
3.2 ohms
MEASUREMENTS
Overall Diameter
8.34" / 212 mm
Front Mount Baffle Cutout
7.16" / 182 mm
Mounting Depth
3.66" / 93 mm
Overall Depth
4" / 103 mm
Product Weight
4 lbs
Product Dimensions
8.75 x 8.75 x 4.25
M/C Weight
33.5 lbs
M/C Dimensions
18 x 18 x 9.75
M/C QTY
8
Sold In
Piece
-
Product Overview
Product Overview
DS18 PRO-EXL84 8" Mid-Range Loudspeaker 800 Watts @ 4-Ohm
Experience car audio like never before with DS18’s PRO-EXL84! The EXL series was designed for the audiophile who demands EXTREMELY LOUD sound reproduction with no distortion.
Built with the latest in DS18 technology and constructed with only the best materials, this leading midrange series reproduces cleaner and LOUDER midrange, mid-bass, and vocal frequencies than any other loudspeaker in its class.
The PRO-EXL84 features an oversized tooled basket with brilliant red and brushed aluminum logos, making it the perfect addition to any custom car audio setup that likes it LOUD.
With an RMS of 400W and a MAX of 800W, this midrange loudspeaker can handle even the most demanding audio setups. The PRO-EXL84 is constructed with large push-style connections that allow for easy wiring and maximum power flow from your amplifier. This means you can enjoy the full power of your system without any degradation in quality. The frequency response of 100Hz-10KHz ensures that you'll hear every detail of your music, while the 97dB sensitivity ensures that you can turn the volume all the way up!
DS18’s PRO-EXL84 is available in a 4-ohm configuration, which allows greater power output from your amplifier, improved efficiency, and higher compatibility between a wider range of amplifier types. In addition to the 4-ohm configuration, the PRO-EXL 8" Mid-Range Loudspeaker is also available in an 8-ohm configuration.
So why settle for less when you can have the best? Upgrade your car audio system today with the DS18 PRO-EXL84 for the ultimate in sound quality and performance!
FREE SHIPPING ORDERS +$35
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT Hey {Recipient's Name},
{Your Name} wanted to help you out with some gift ideas ;)
Here's a super cool gift.
Cheers,
DS18
PRO-EXL 8" Mid-Range Loudspeaker 400 Watts Rms 4-Ohm
Default Title
Related products
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
- 8" Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB

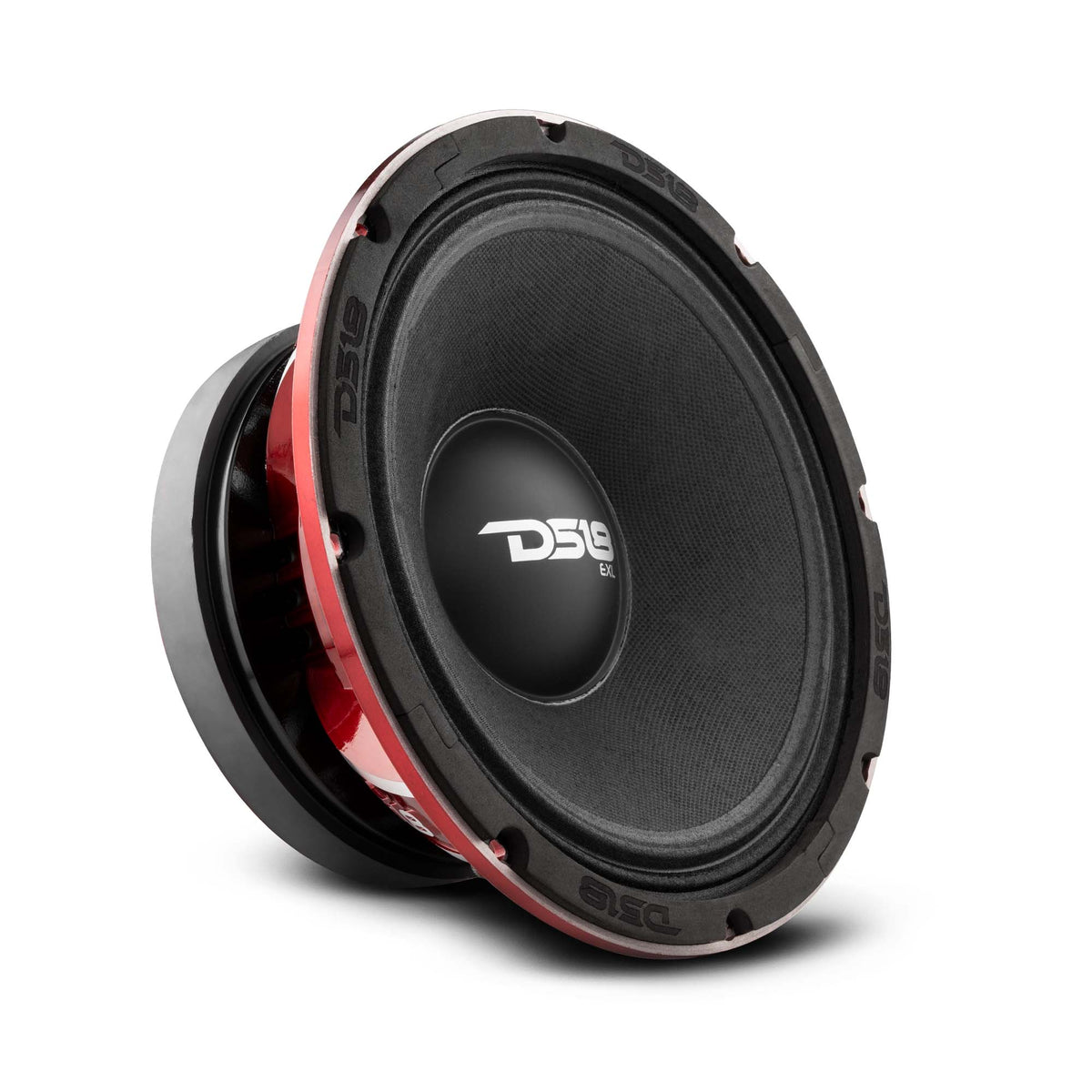

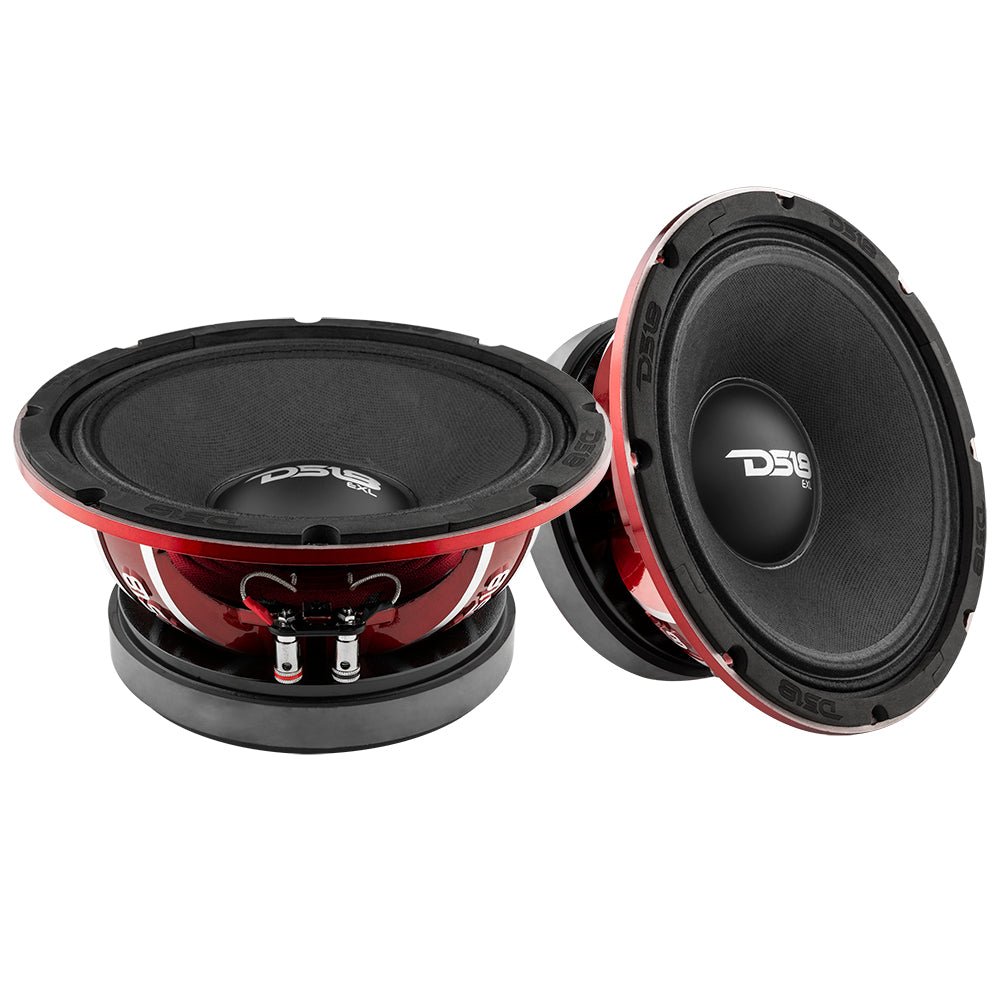

- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB
- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 97dB

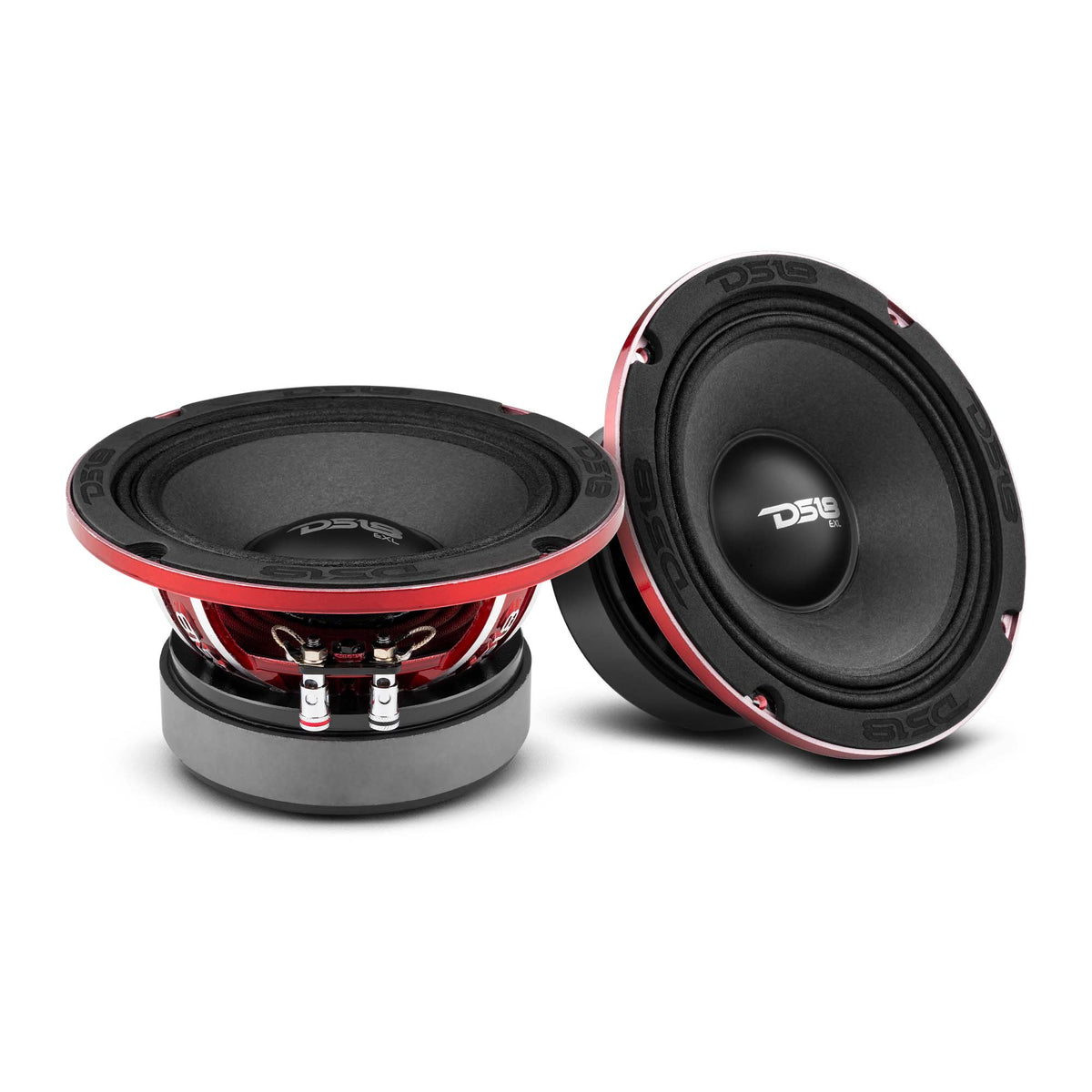

- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 91dB

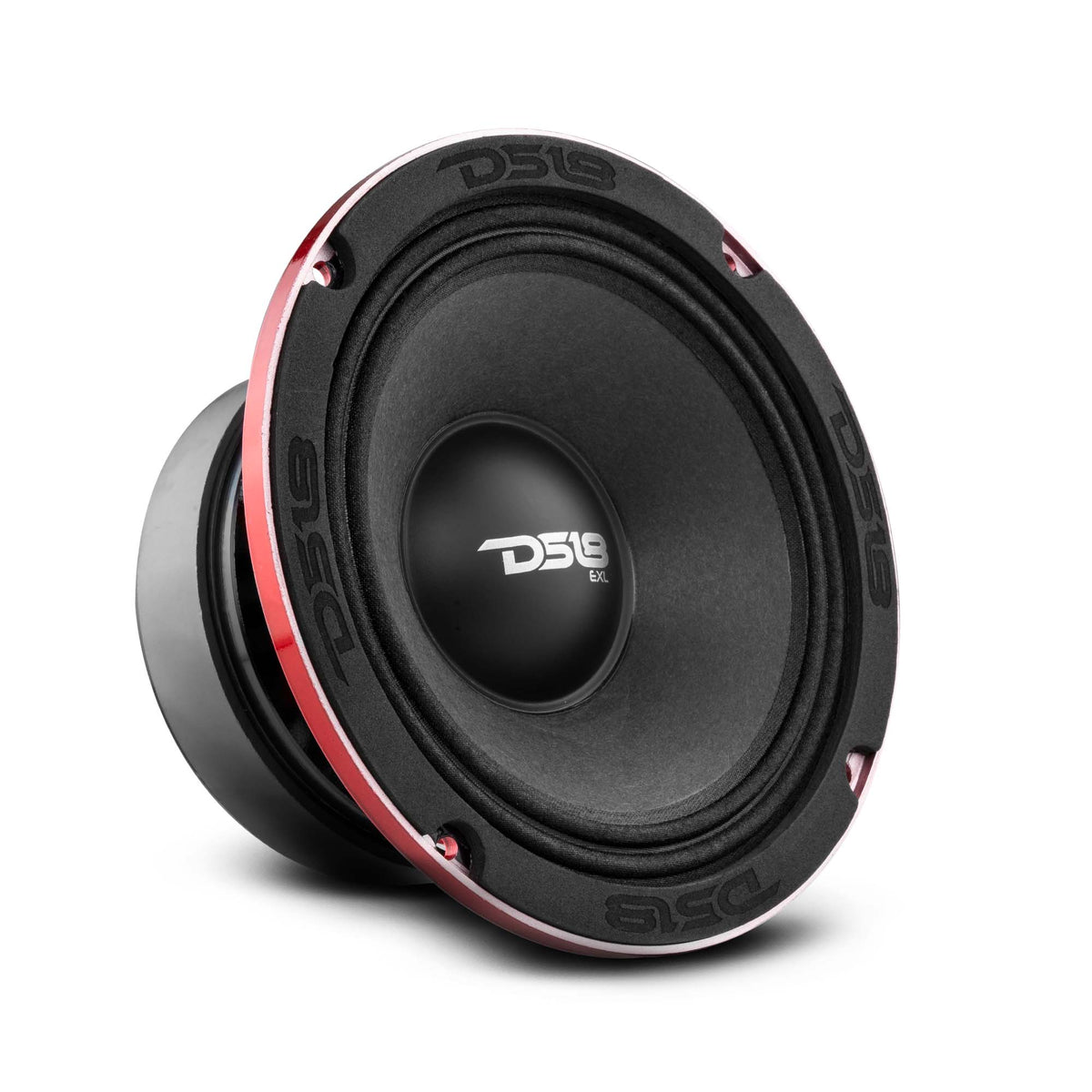

- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 91dB

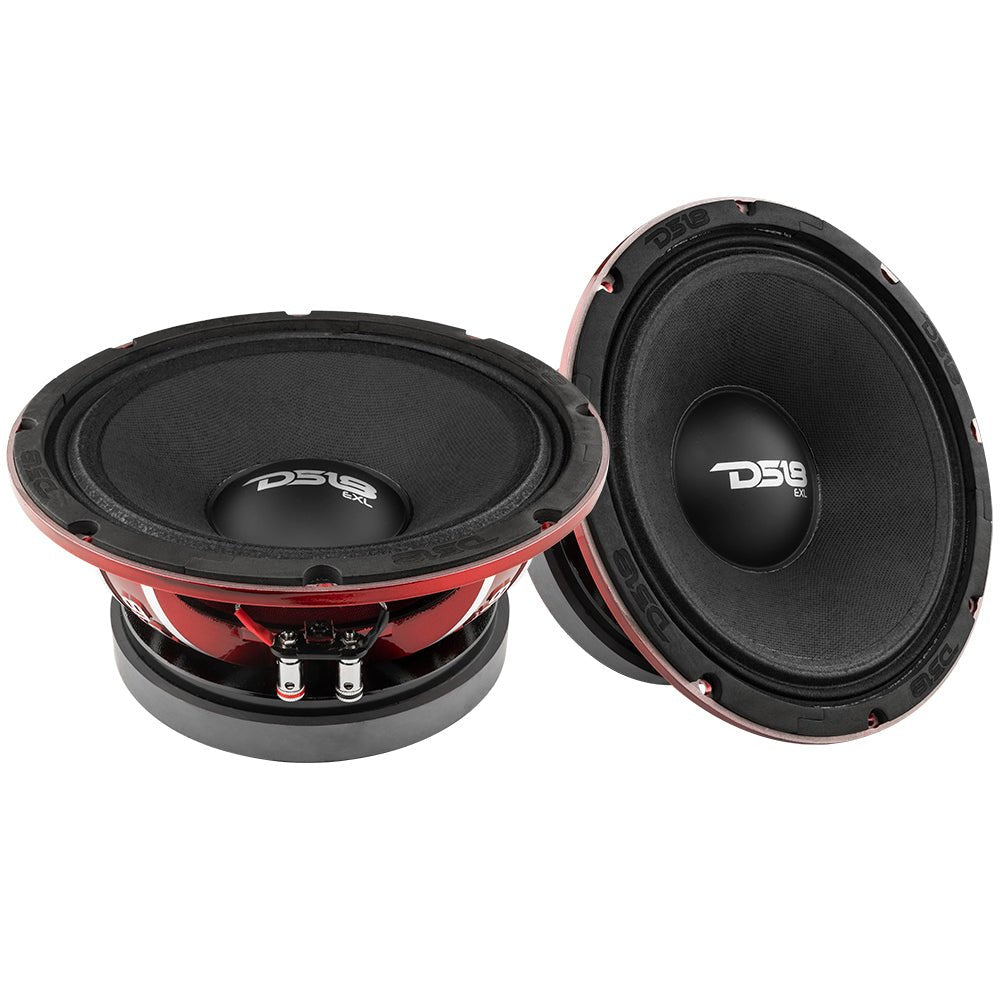

- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB

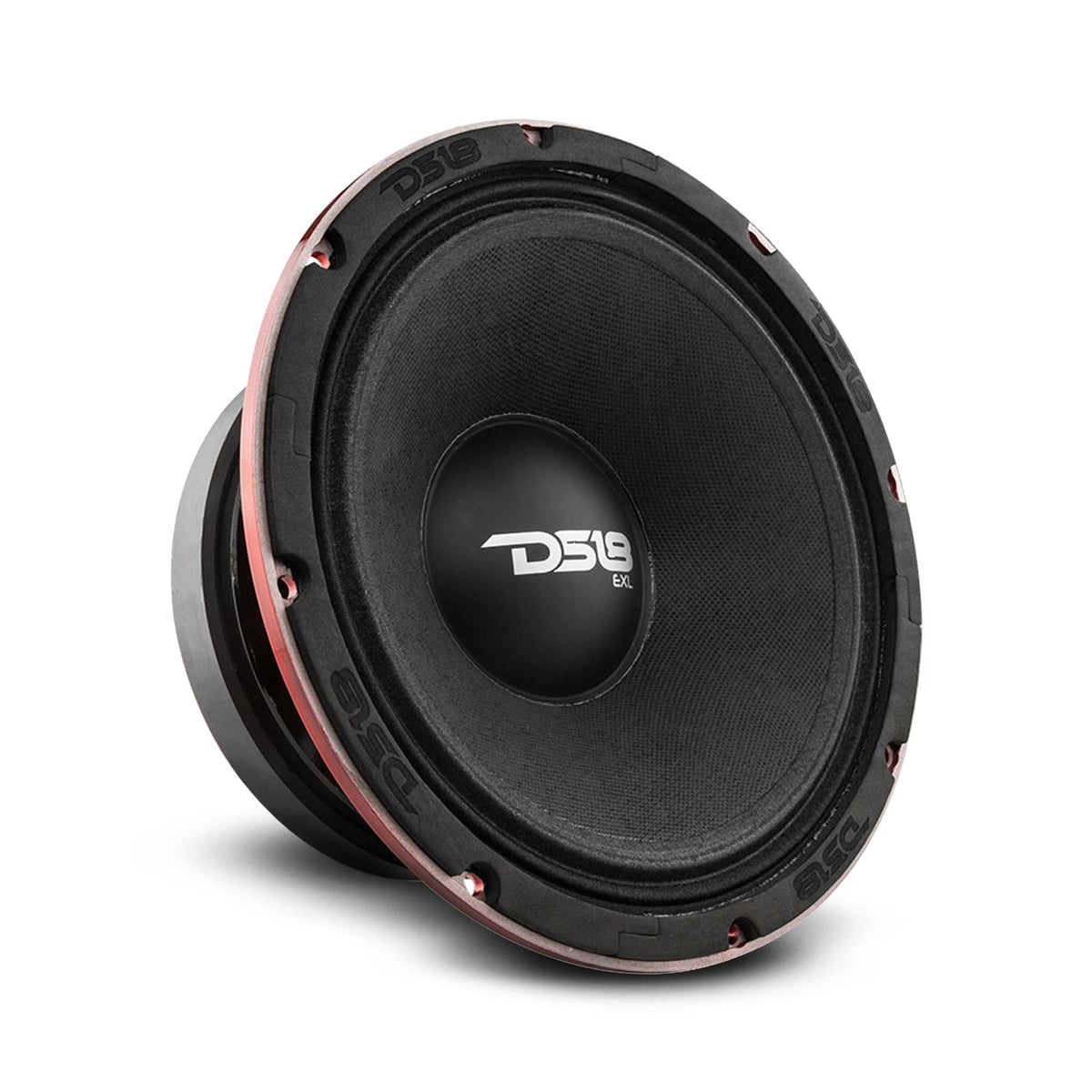

- 10" Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB

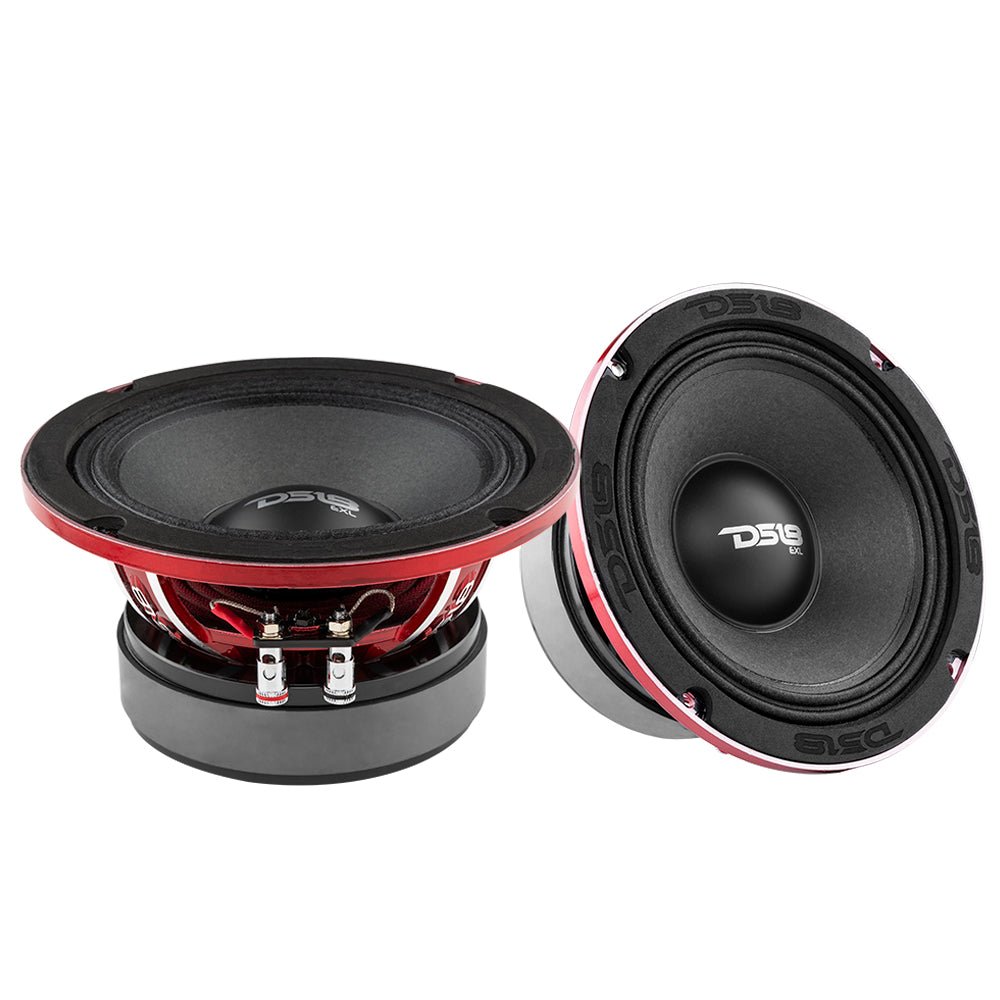

- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 92dB
- 6.5" Mid-Range
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 92dB

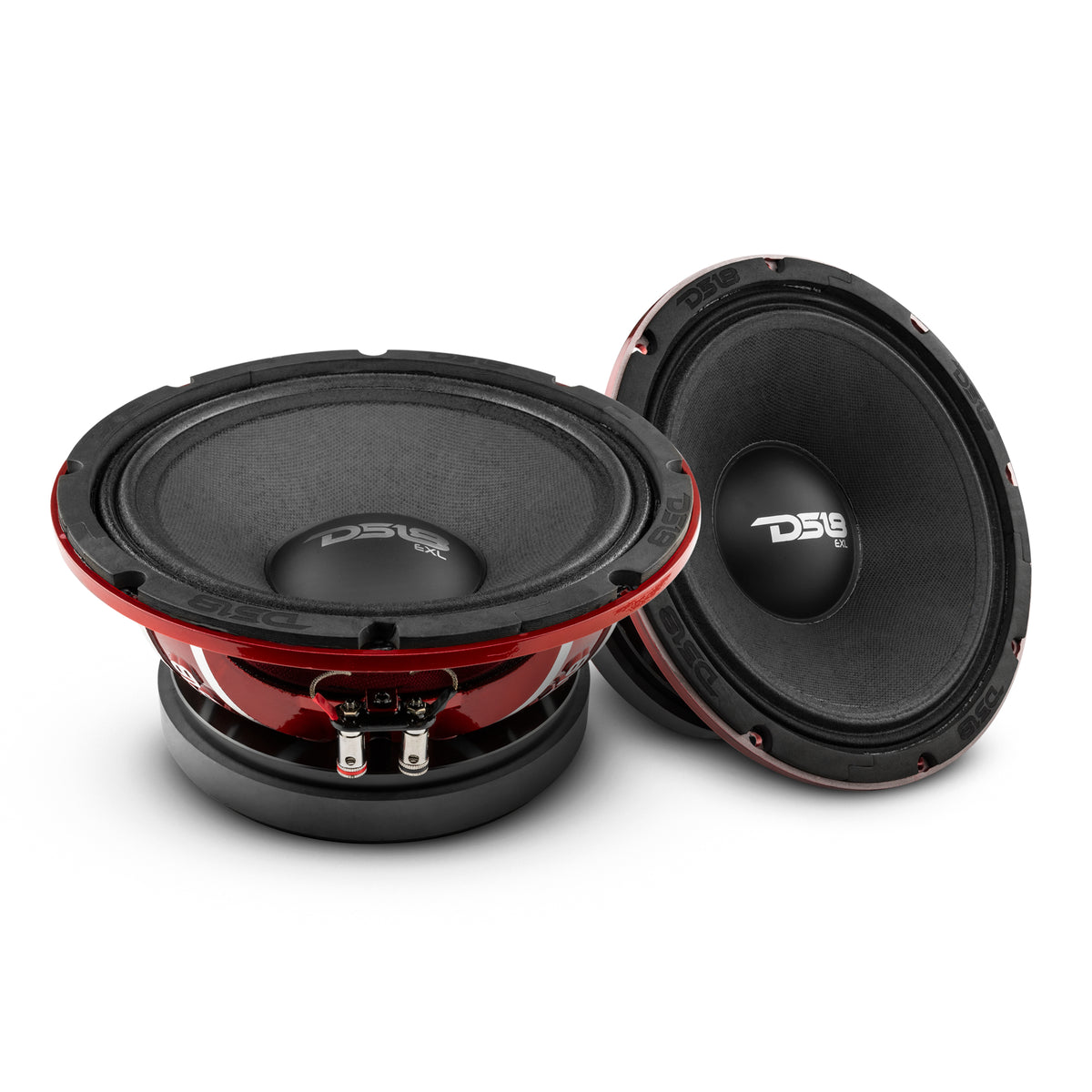

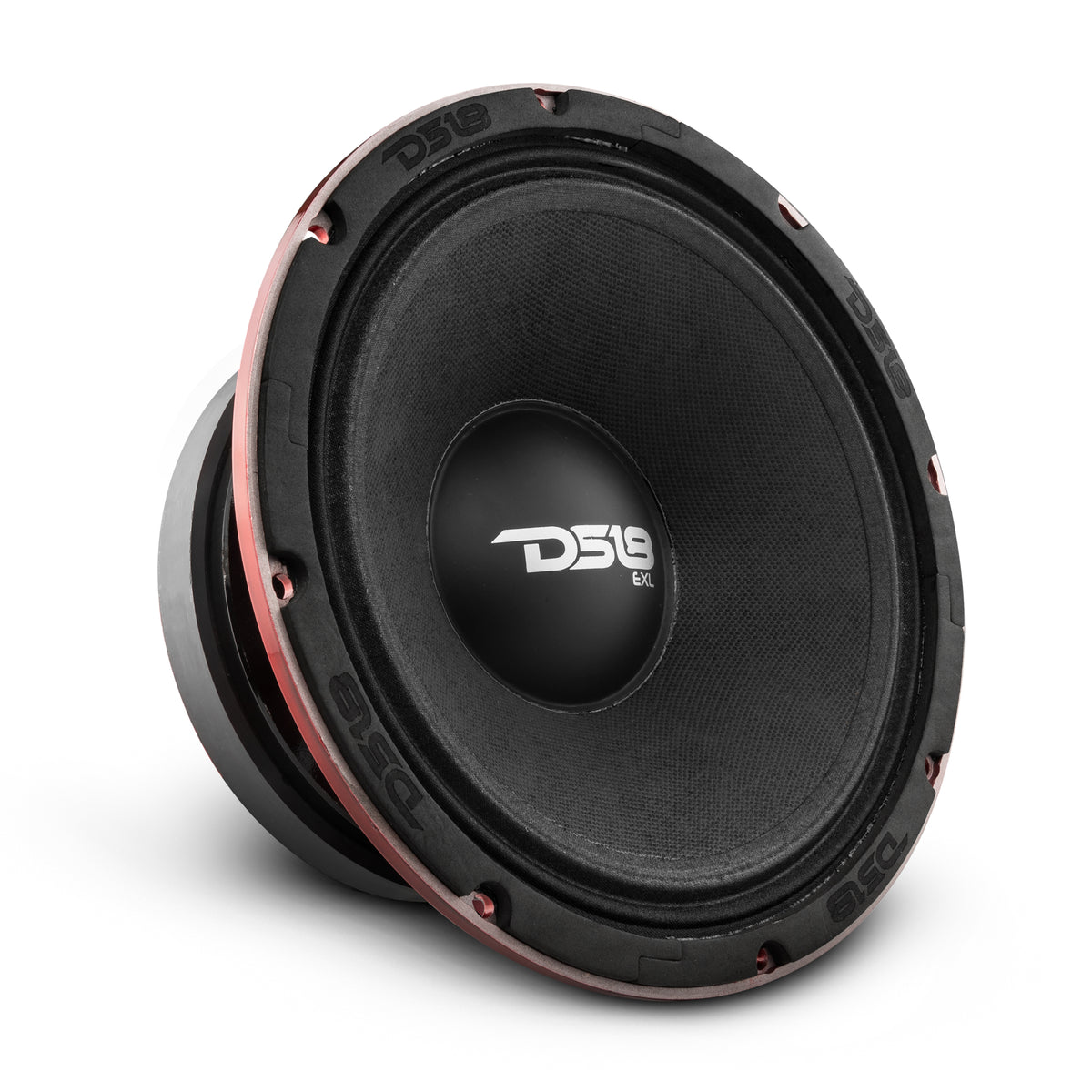

- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB
- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 96dB

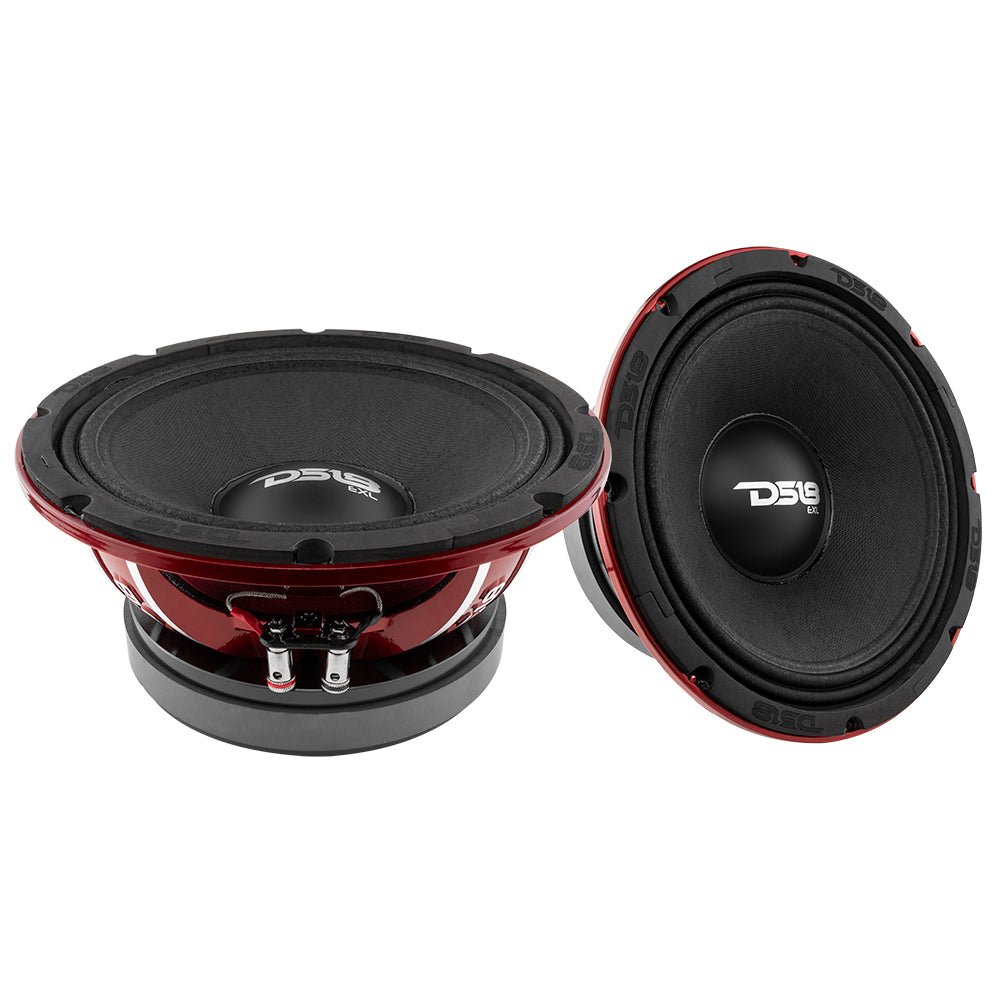

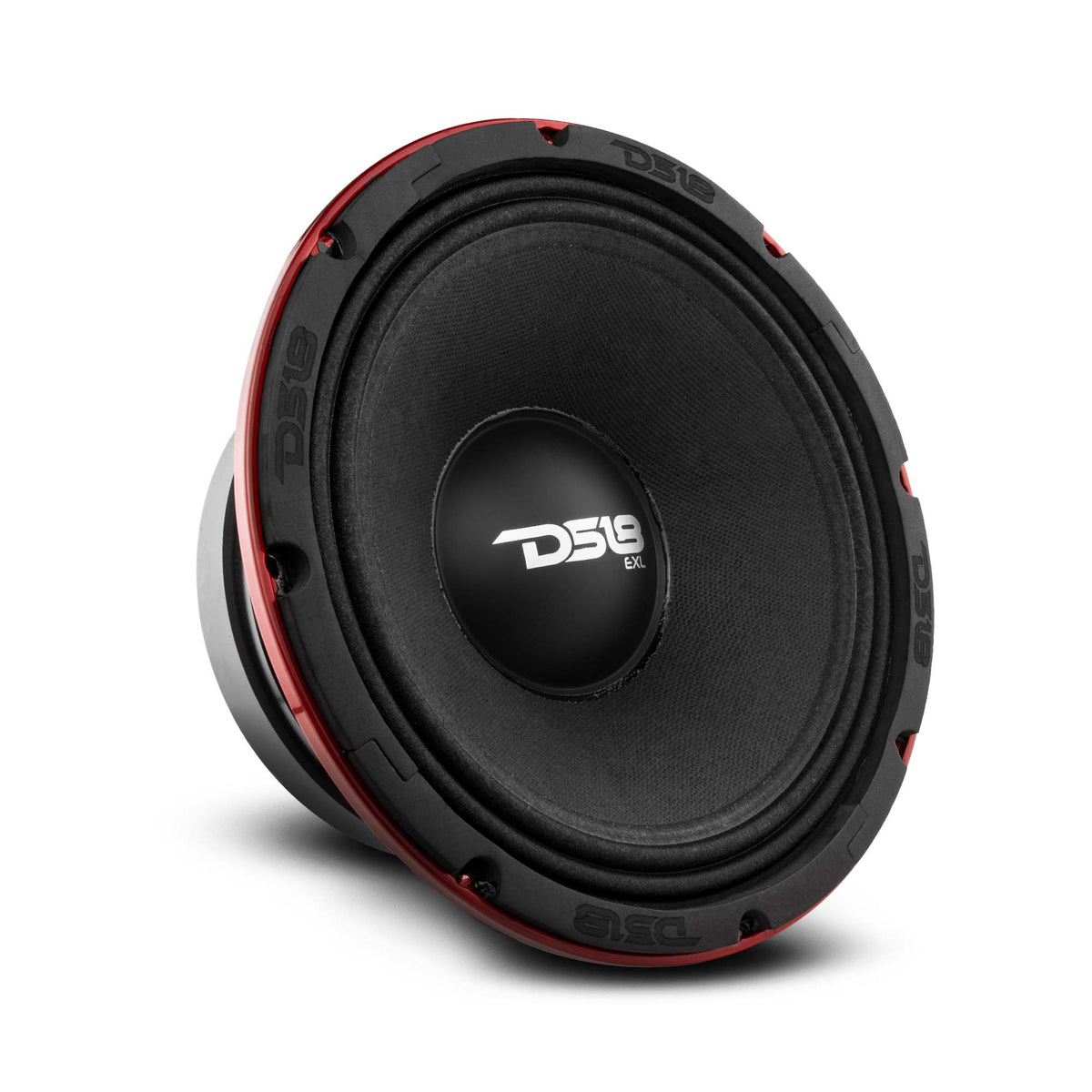

- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB
- 10" Mid-Bass
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 96dB

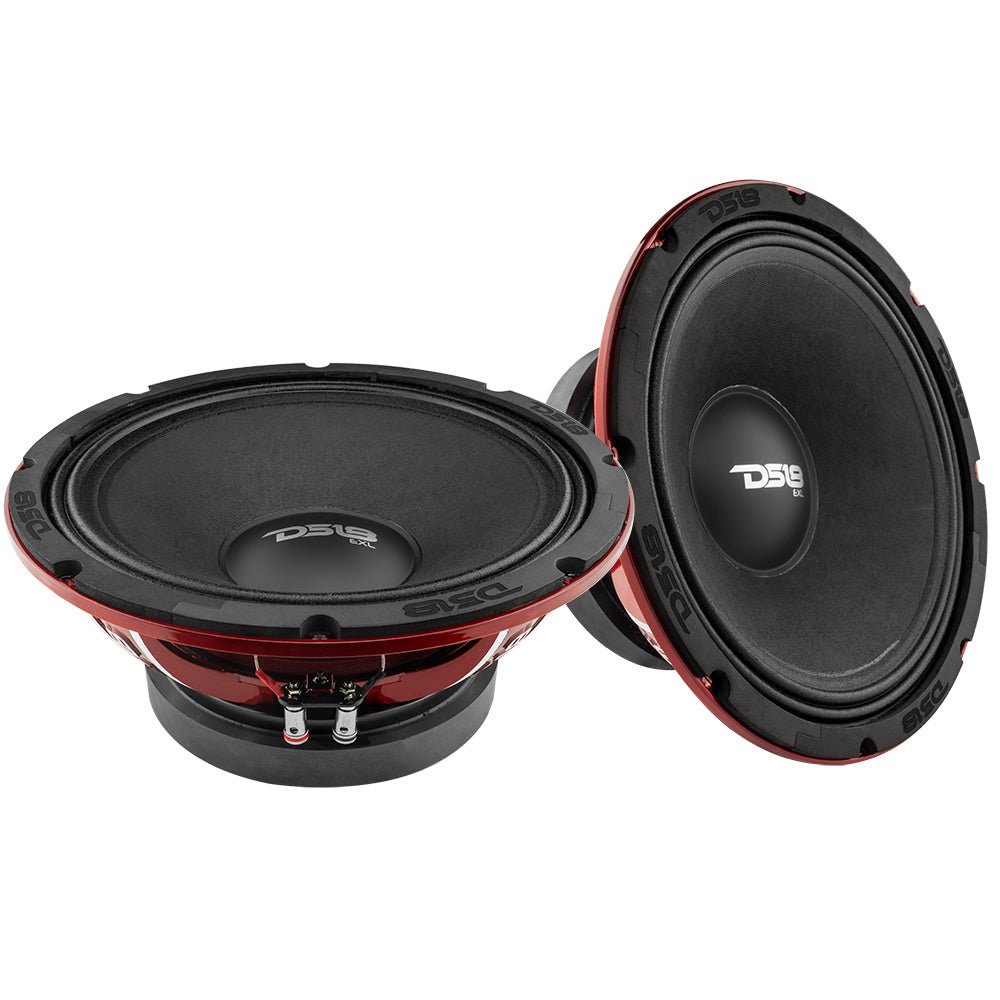

- 12" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB
- 12" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 8-Ohm
- Ferrite Magnet
- 98dB

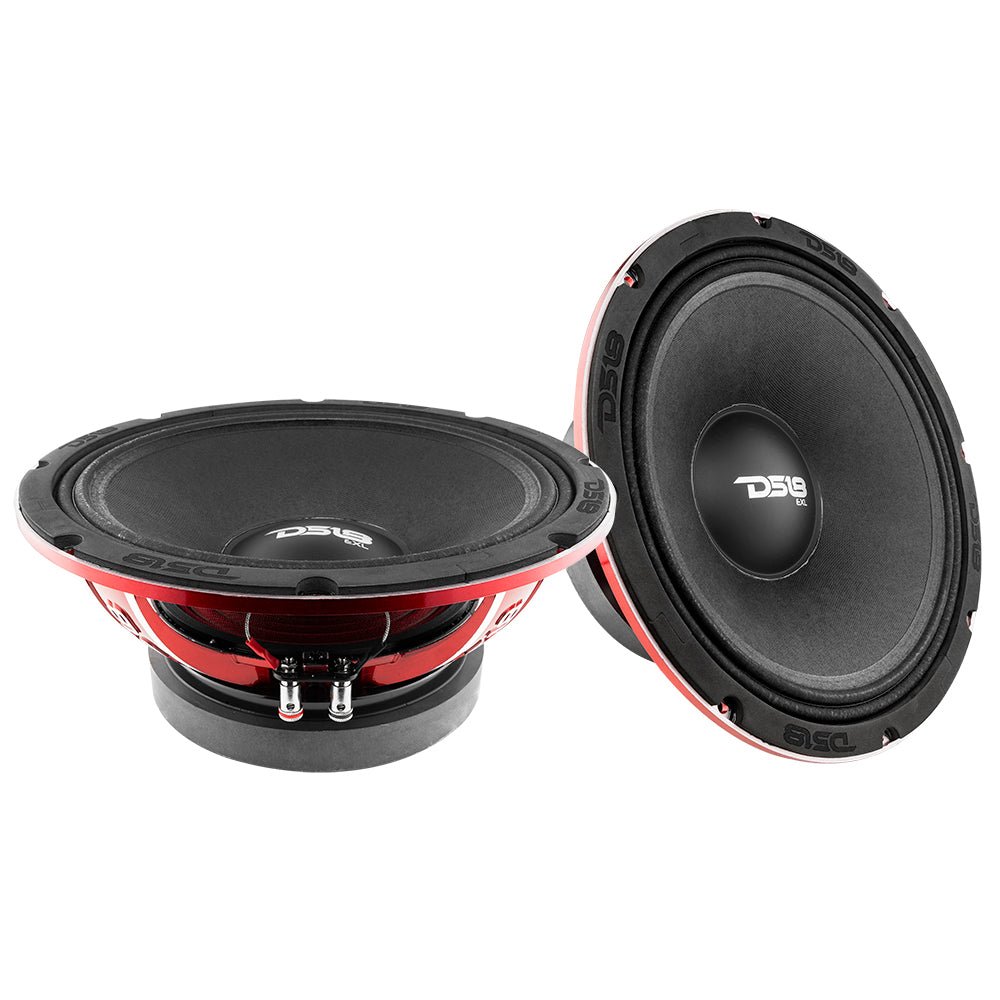

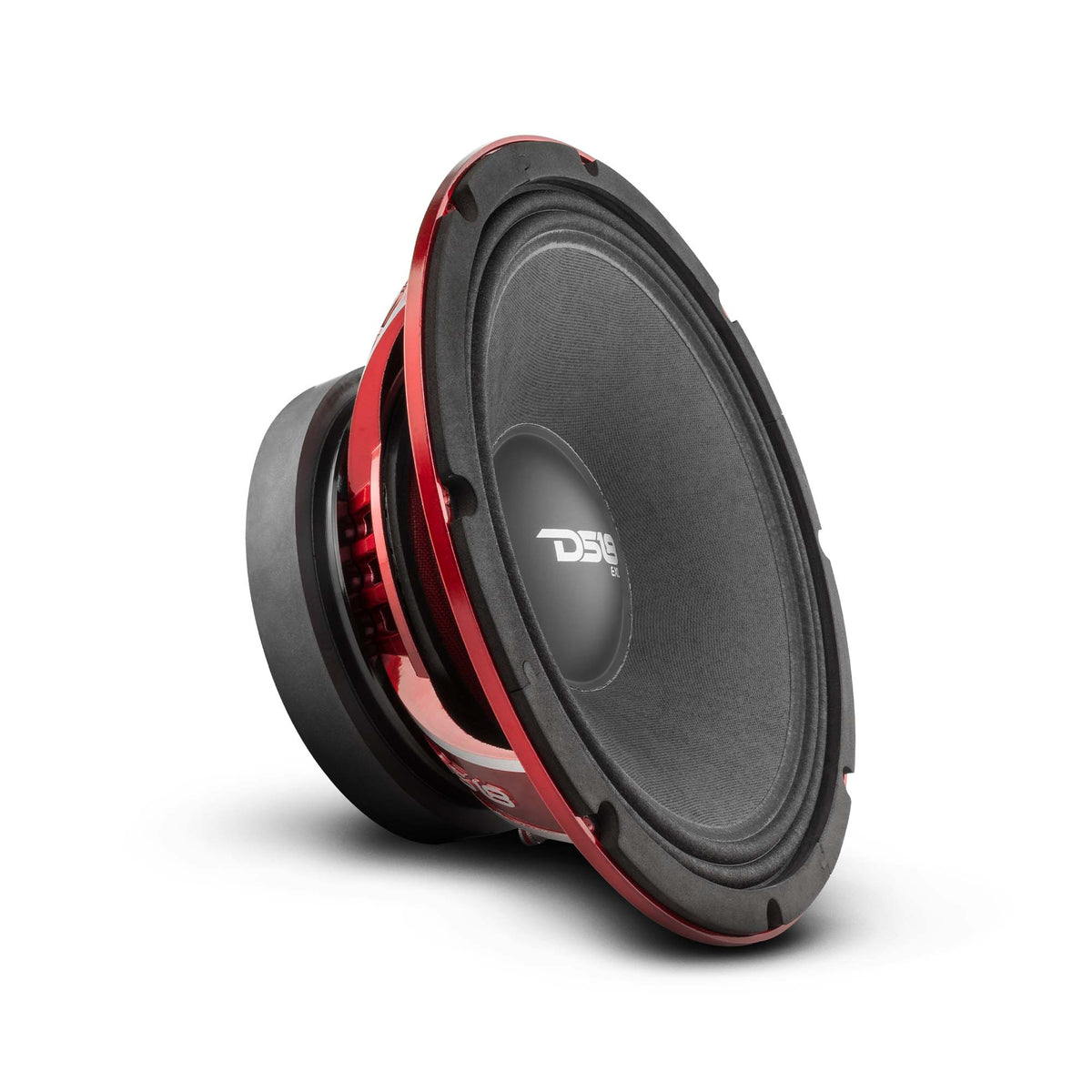

- 12" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB
- 12" Mid-Bass
- MAX Power: 1400 Watts
- RMS Power: 700 Watts
- Impedance: 4-Ohm
- Ferrite Magnet
- 97dB

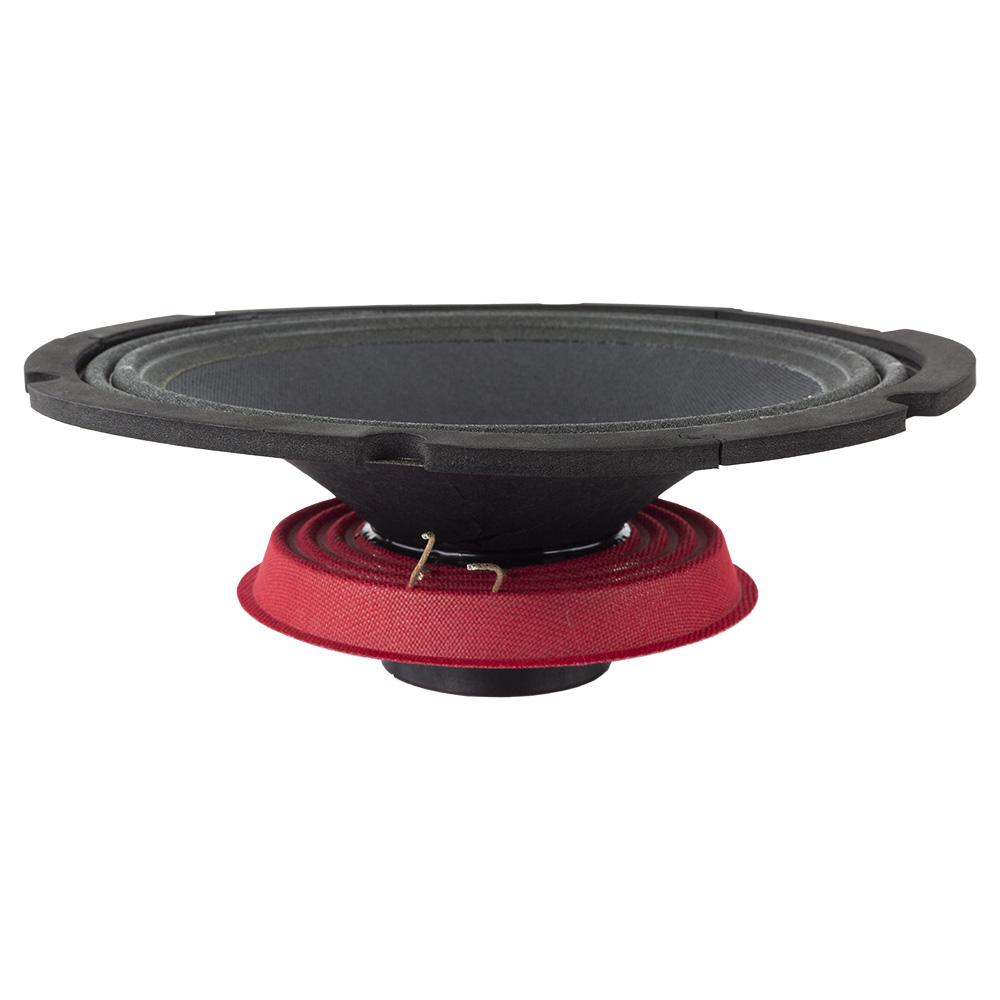

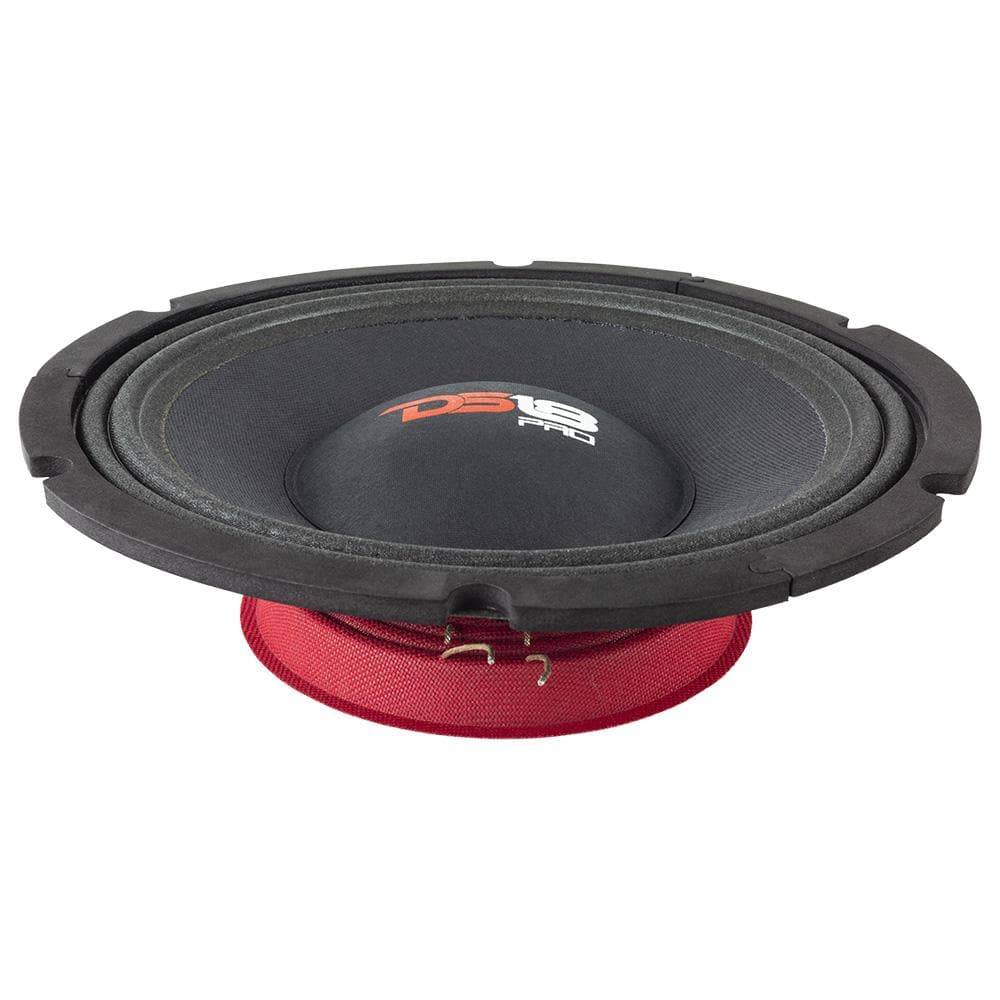

- Re Cone Kit
