NVY-M10SUB/WH

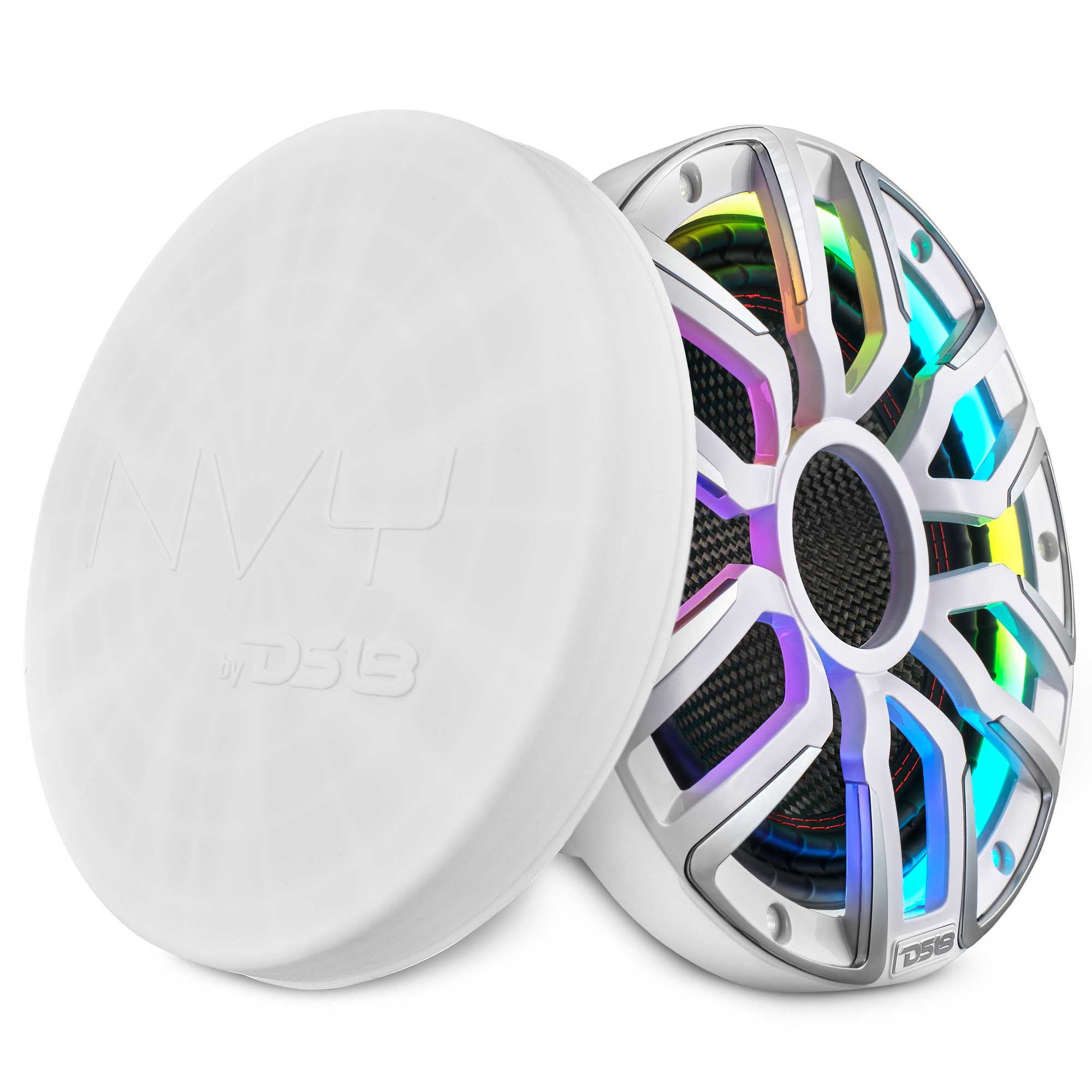

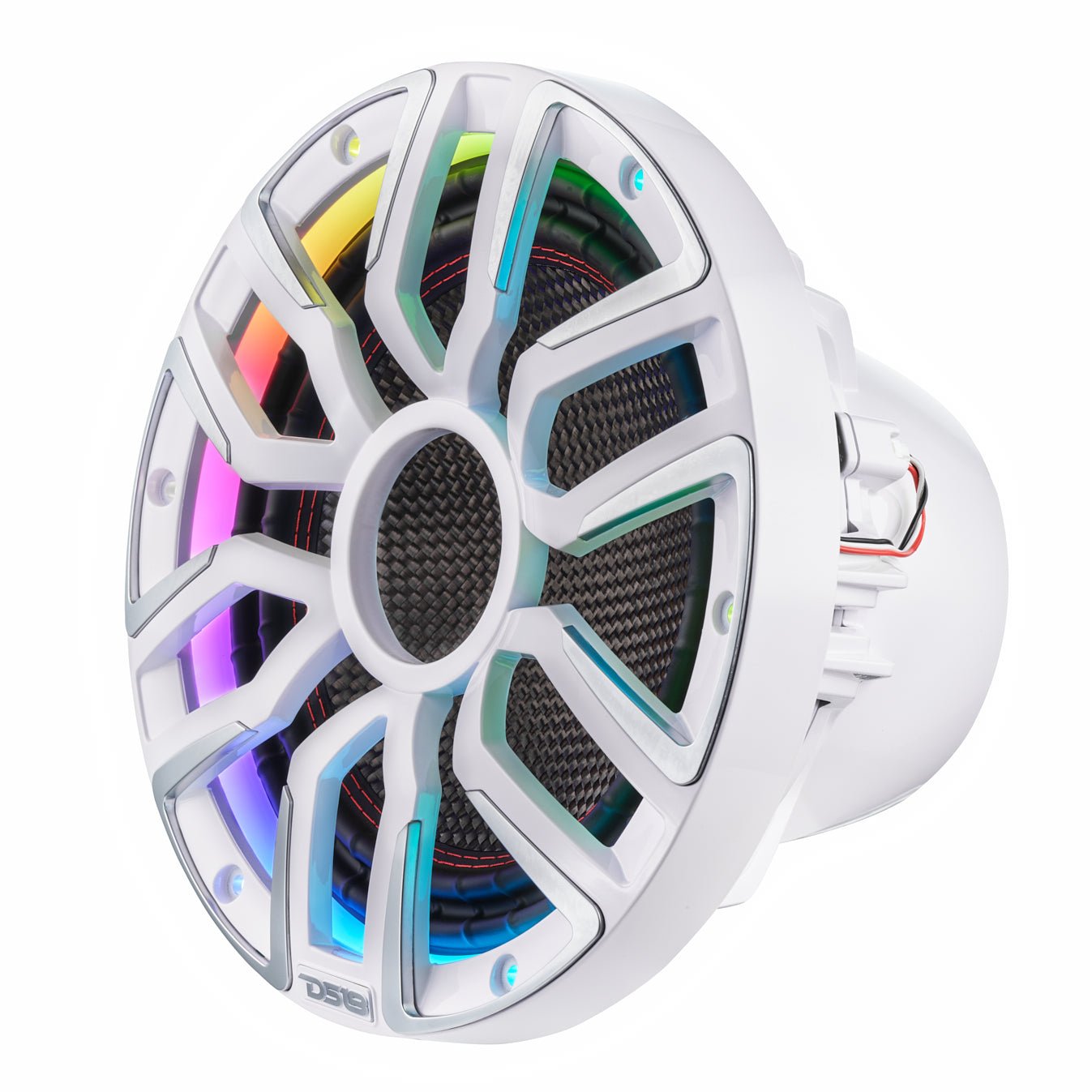

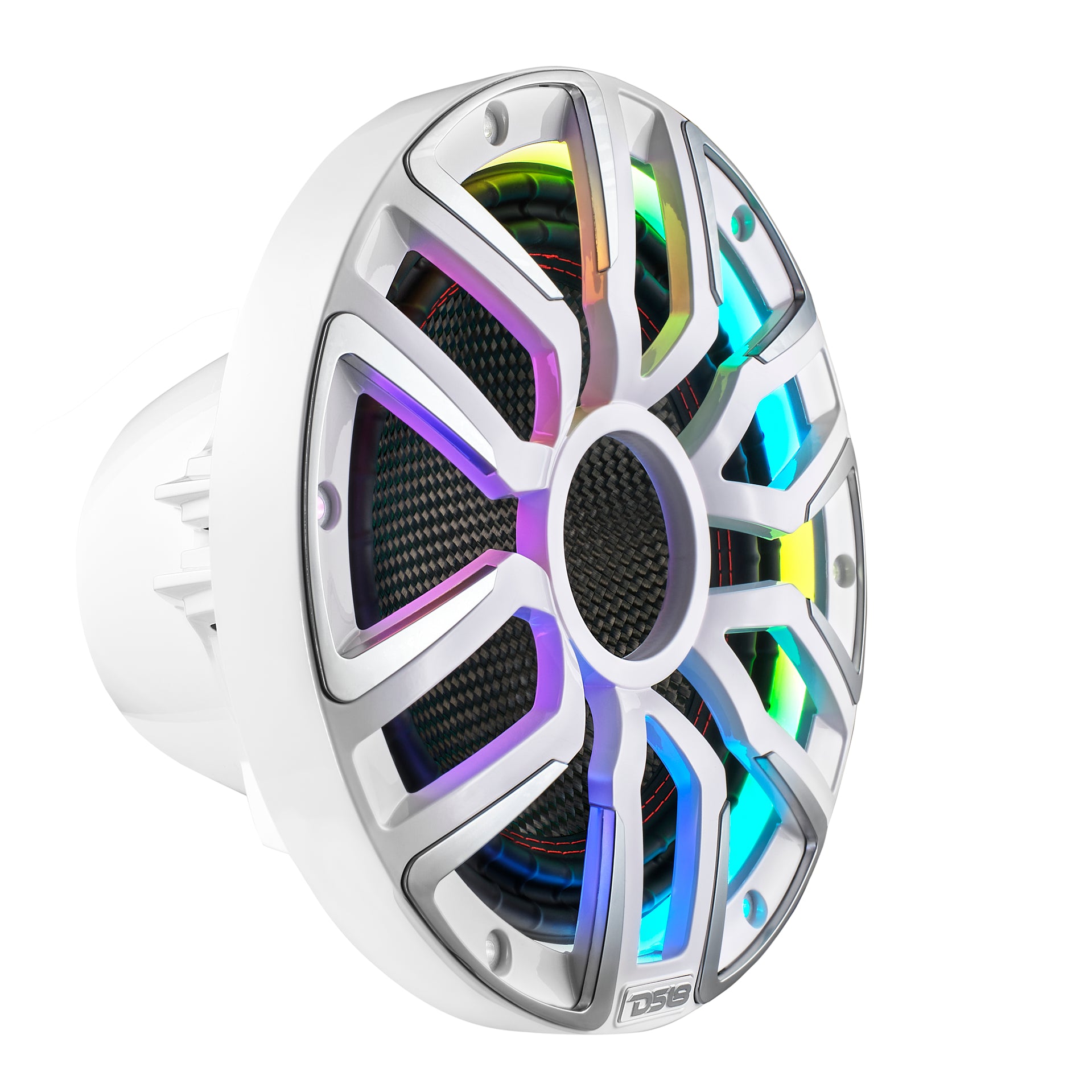

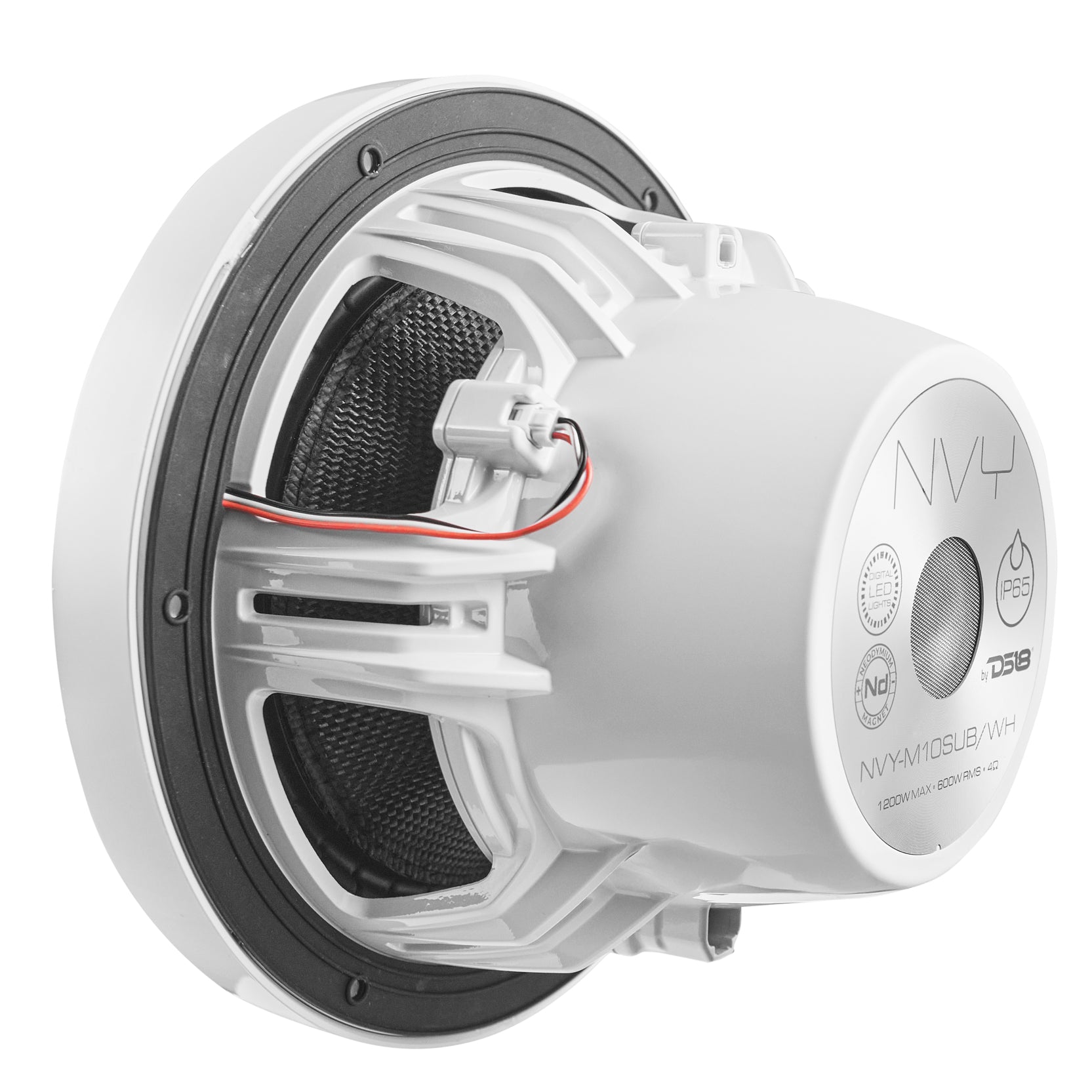

10” Neodymium Marine & Powersports Subwoofer With Carbon Fiber Cone | 600W RMS 4-Ohm

$1,000.00/ EACH

Size: 10"

10"
12"

Color: White

Black
White

KEY FEATURES

  • Carbon Fiber Cone

    Carbon Fiber Cone

  • Water-Resistant IP65

    Water-Resistant IP65

  • Waterproof Terminals

    Waterproof Terminals

  • Digital LED Lights

    Digital LED Lights

  • Neodymium Magnet

    Neodymium Magnet

  • Protection Coating

    Protection Coating

Designed To Endure

From ocean spray to off-road grit, this IP65-rated subwoofer is built for harsh environments. UV-stabilized, Santoprene sealed, and cast in marine-grade aluminum.

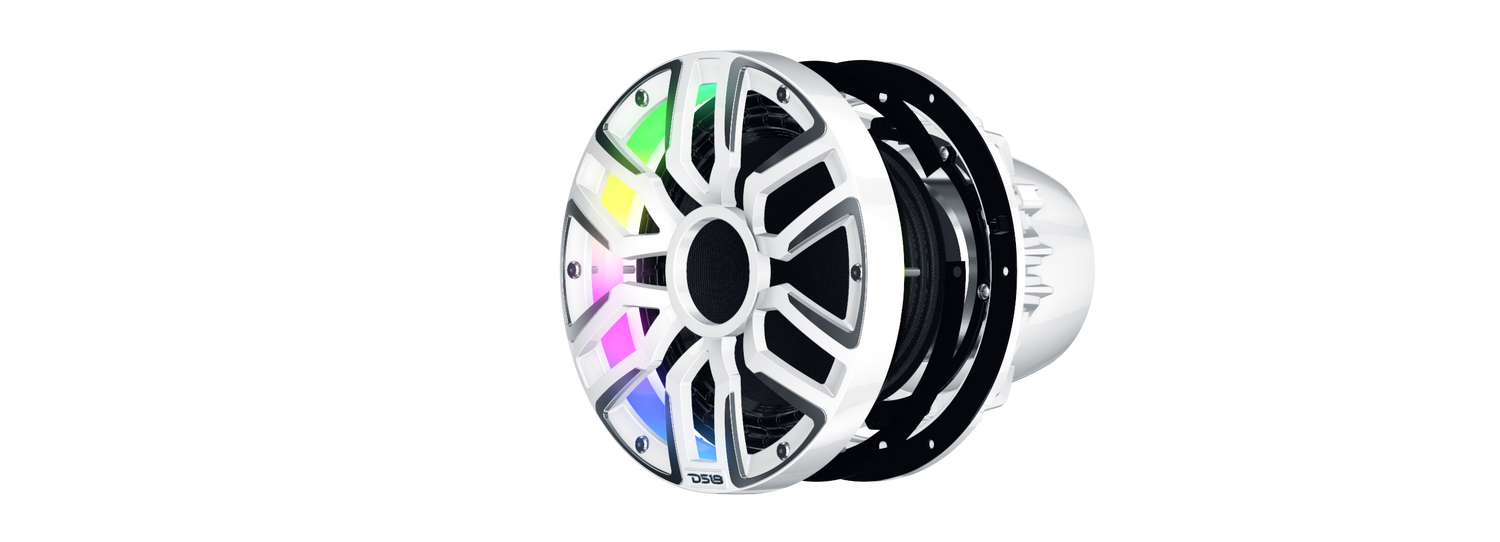

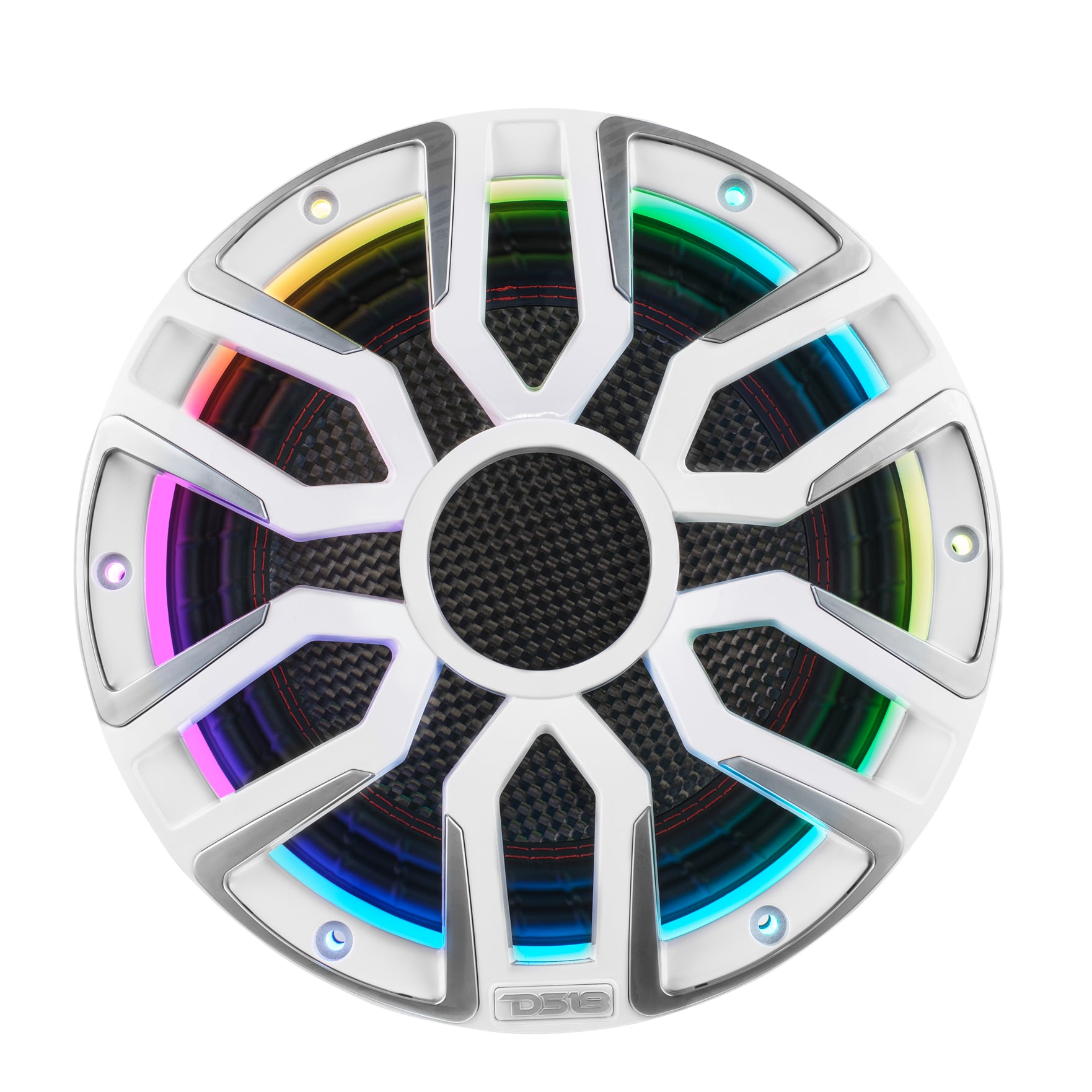

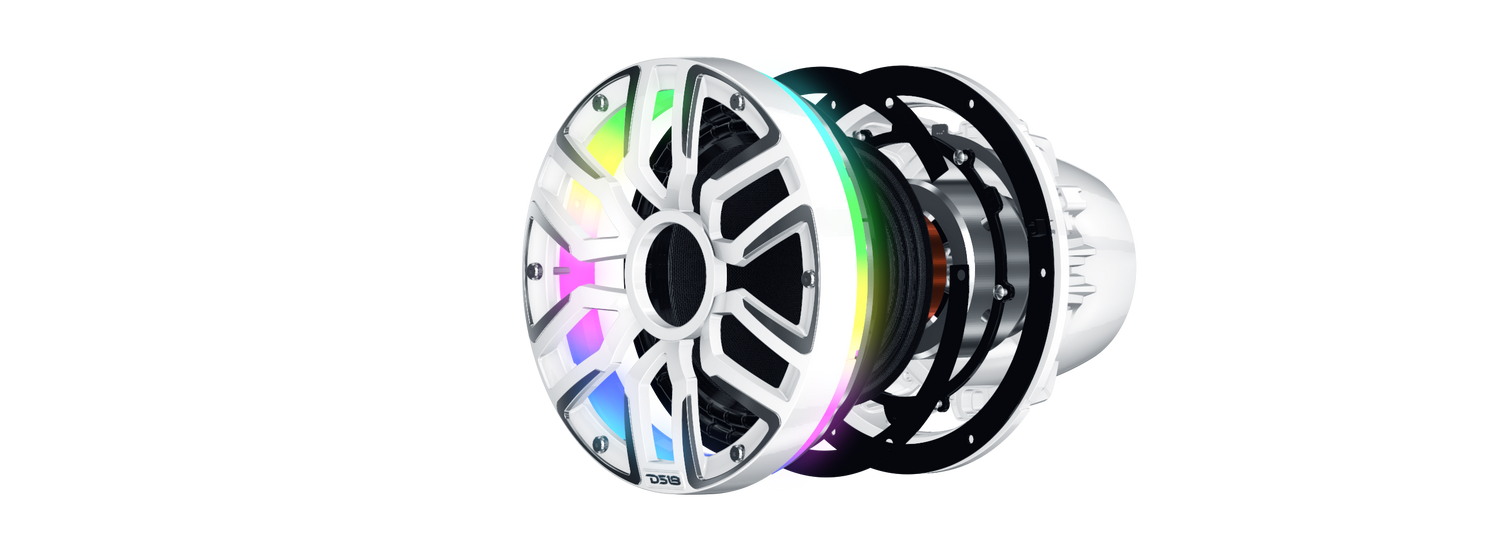

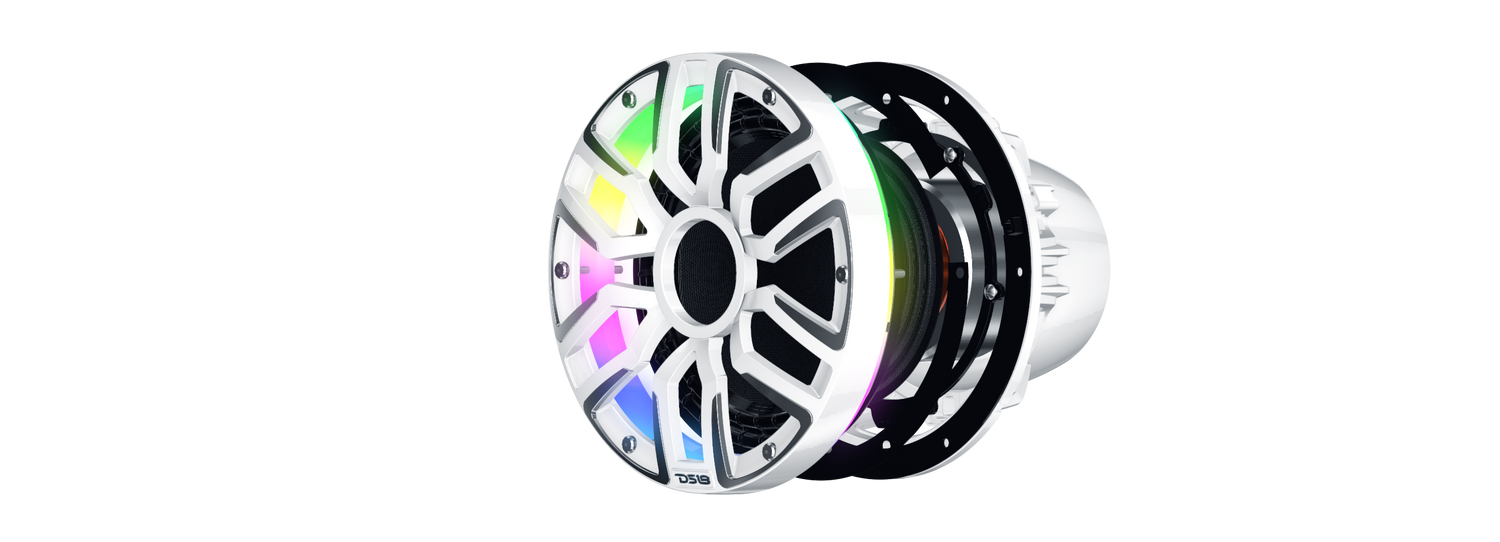

Illuminate With Intent

Digital LED lighting is seamlessly integrated into this subwoofer and is controlled via the LC-DRM (sold separately) and DS18 LC App.

Download the DS18 LC APP compatible with the DS18 LC-DRM module. This App works with both Android and iPhone.

This digital lighting system requires a digital signal from a compatible module to function correctly. Do not attempt to power it with direct current (DC). DS18’s BT Digital LED Control Module, LC-DRM, is required. (SOLD SEPARATELY)

Polished Finish

Every detail is designed for a clean install and flawless performance. Finished in White Gloss or Black Satin, the NVY-M10SUB blends into premium builds effortlessly.

  • General Specifications
  • Nominal Diameter: 10" / 254mm
  • Nominal Impedance: 4 ohms
  • RMS Power Handling: 600W
  • MAX Power Handling: 1200W
  • Sensitivity (1w/1m): 85dB
  • Frequency Response: 20Hz-250KHz
  • Recommended Low-Pass Crossover: 120Hz
  • Single

  • Body / Features
  • UV Compliant: Yes, 100% Stable
  • Protection Coating: Yes with PU
  • Decorative Strips: Yes, Electroplated
  • Marine Grade Type: IP65
  • Digital LED Lights
  • Grill Type: Injection Molded Composite (ASA)

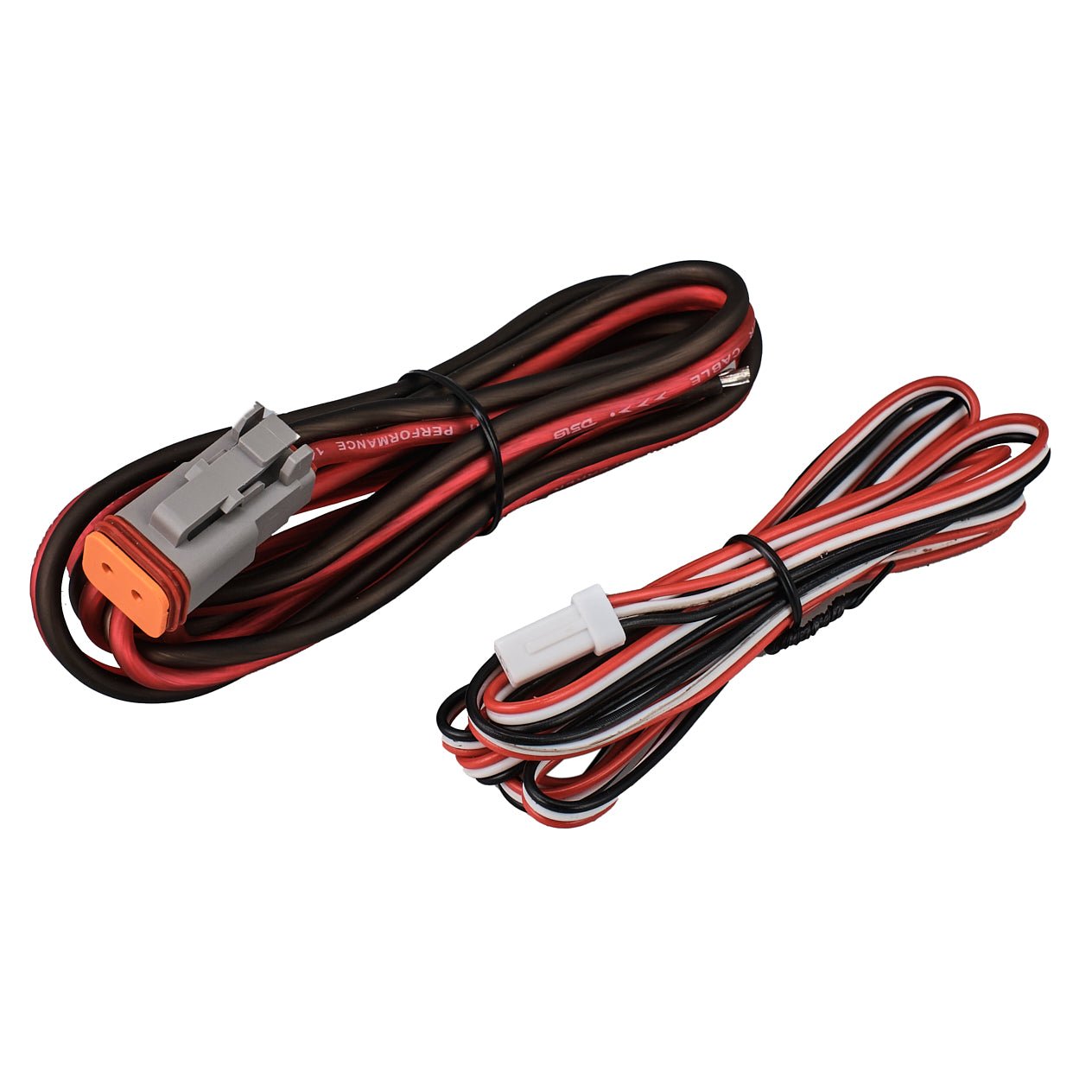

  • Speaker / Lights Connector: Waterproof Type
  • Color / Finish: White

  • Woofer Specifications
  • Voice Coil Diameter: 3" / 76.5mm
  • Voice Coil Former Material: Black Aluminum
  • Winding Material: CCAW
  • Cone Material: Carbon Fiber
  • Surround Material: Santoprene (Rubber)
  • Basket Material: Aluminum Molded with PU Coating
  • Magnet Material: Neodymium
  • Magnet Weight: 20 Oz

  • Thiele & Small Parameters
  • Equivalent Volume Vas: 13.65L / 0.482ft3
  • Excursion (one way) Xmax: 9.75mm
  • Free Air Resonance Fs: 38Hz
  • Mechanical Factor Qms: 4.26
  • Electrical Factor Qes: 0.45
  • Total Factor Qts: 0.41
  • Moving Mass Mms: 157.5g
  • Compliance Cms: 0.11mm/N
  • Bl Factor Bl: 18.7
  • Voice Coil Inductance Le: 0.75mH
  • Diaphragm Area Sd: 298.65cm2
  • Dc Resistance Re: 3.7 Ohms
  • Efficiency Bandwidth Product: EBP 84

  • Speaker Measurement
  • Overall Diameter: 10.5" / 268mm
  • Overall Depth: 6.93" / 176mm
  • Front Mount Baffle Cutout: 8.66" / 220mm
  • Mounting Depth: 5.31" / 135mm
  • Motor Diameter: 5.23" / 133mm
