NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS
DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7 DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7 DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7 DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7 DS18 HYDRO NVY-IPX7.4 Full-Range Digital Marine 4-Channel Amplifier 120 x 4 @4 ohm Watts Waterproof IPX7
Video thumbnail - NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS
Video thumbnail - NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS

NVY-IPX7.4

NVY 4-Channel Full-Range IPX7 Submersible Marine and Powersports Amplifier 120 x 4 @ 4-Ohm Watts RMS

$700.00/ EACH

KEY FEATURES

  • IPX7 Submersible Waterproof Rating

    IPX7 Submersible Waterproof Rating

  • UV-Protected - All Elements

    UV-Protected - All Elements

  • Direct Power Harness Design

    Direct Power Harness Design

  • Waterproof Terminals

    Waterproof Terminals

  • Thermal Protection

    Thermal Protection

  • OFC Tinned Wires

    OFC Tinned Wires

Waterproof By Standard

The NVY-IPX7.4 is IPX7 certified. That means submersion protection, sealed internals, and no shortcuts. Designed to handle real exposure while maintaining NVY-Grade clarity and balance, this amplifier performs wherever it’s placed.

Dialed In Precision

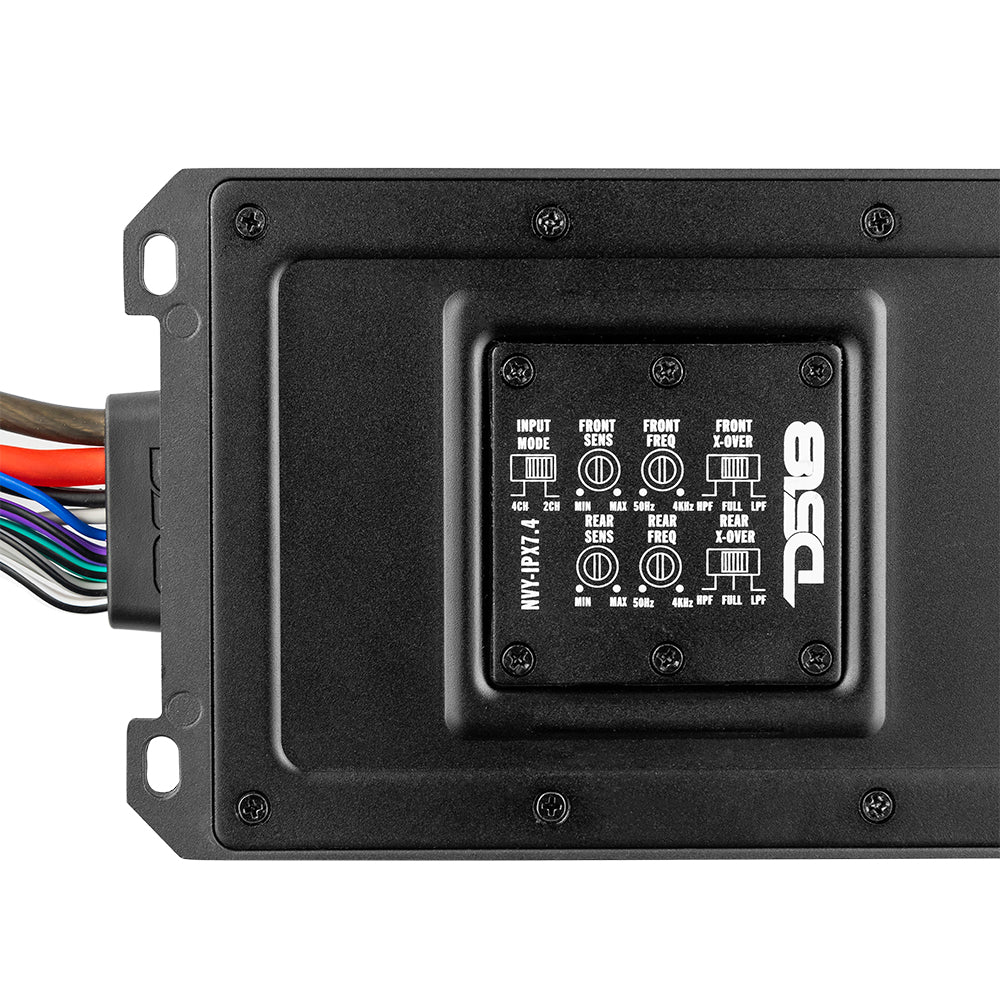

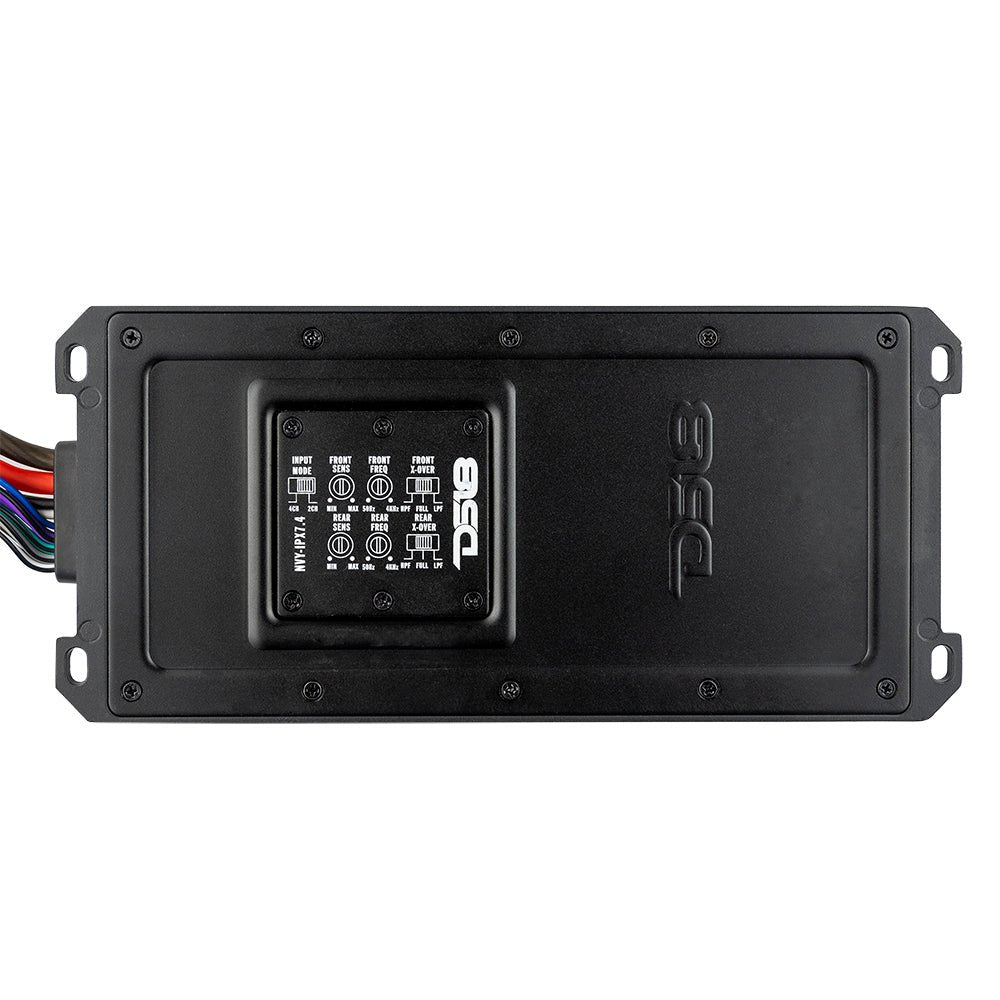

With variable gain, crossover control, and 4-channel flexibility: you get the chance to shape your sound around your environment, speakers, and music.

Integrate Easily

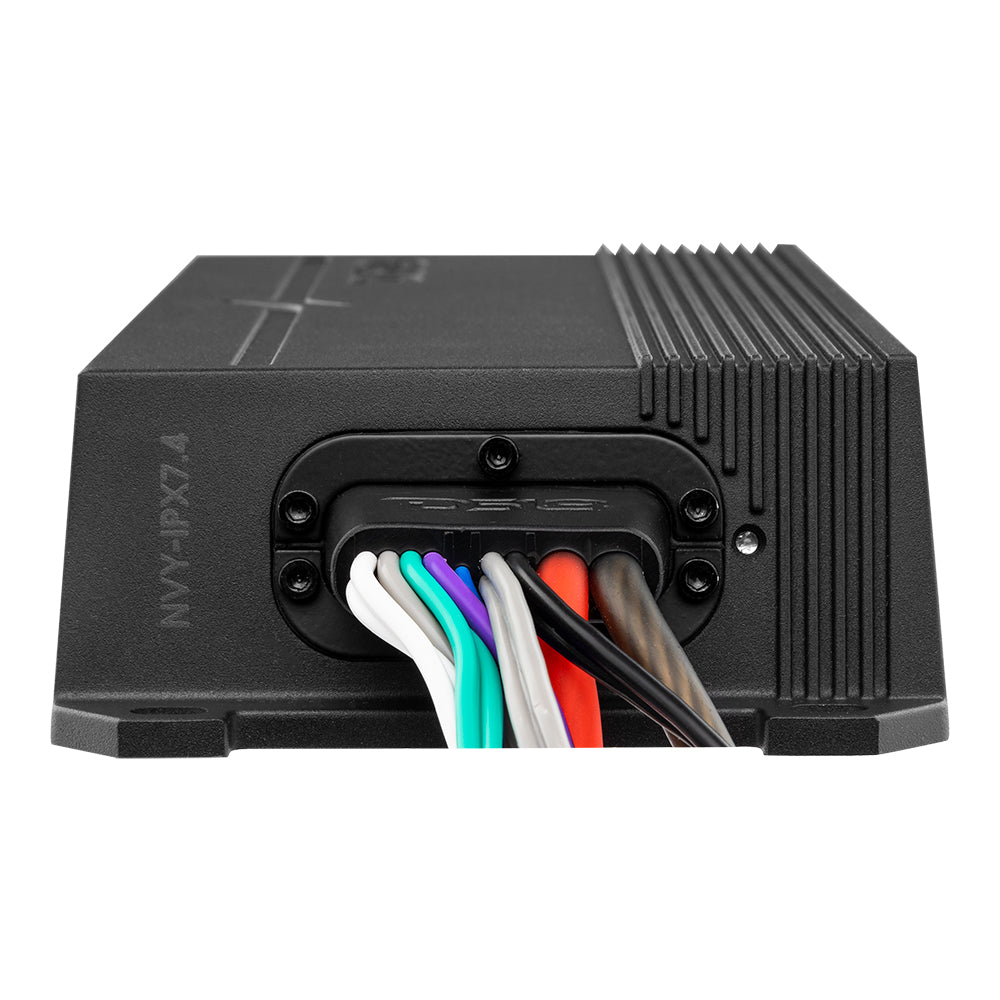

Pre-terminated harnessing and a compact sealed chassis makes install easy across all marine and powersport applications.

  • General Specifications
  • Total Watts (Peak): 1440W
  • RMS Power @ 4 ohm: 4 x 120W
  • RMS Power @ 2 ohm: 4 x 200W
  • RMS Power @ 4 ohm Bridge: 2 x 350W

  • Audio Specifications
  • Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: 1W@4Ω >90dB
  • Efficiency @ 4ohm: 94%
  • Input Impedance:>20KΩ
  • Channel Separation: >-70dB
  • Total Harmonic Distortion: (THD)<0.1%
  • Low Level Input Range: 270mV-5.6V
  • Selectable X-Over: HPF/FULL/LPF
  • X-Over Filter Range: 50Hz-4KHz

  • Features
  • Amplifier Class: Digital (D)
  • Amplifier Type: Full Range Digital Marine Amplifier
  • Number of Channels: 4
  • Minimum Impedance: 2 ohms/Ch (4 ohm Bridge)
  • Led Indicator Protection (Red) / Power (Blue)
  • Power Input Size: 8Ga
  • Fuse: 2 x 30A
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (9.5-16V)
  • Body Color / Finish Black / Anodizing

  • Extra Features
  • 2Ch/4Ch Input Selector: Yes
  • Waterproof Rating: IPX7
  • UV / Salt Fog Protection: Yes
  • Power Direct Harness Design: Yes
  • Surface Mount Component Technology: Yes

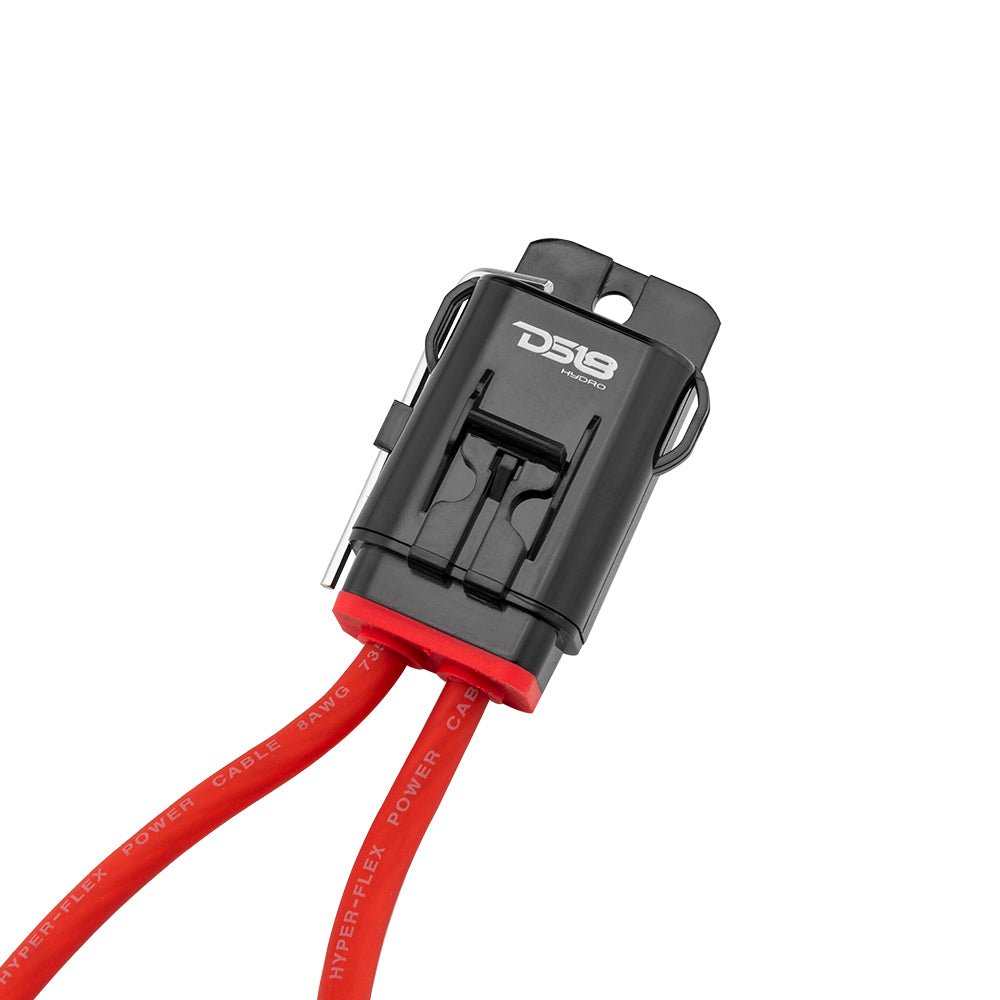

  • Marine Grade Fuse Holder: Yes

  • Measurement
  • Overall Length: 10" / 253mm
  • Overall Width: 4.5" / 116mm
  • Overall Height: 1.9" / 48.5mm
  • Heatsink Length: 8.5" / 216mm
  • Gross Single Unit Weight: 1.8kg
