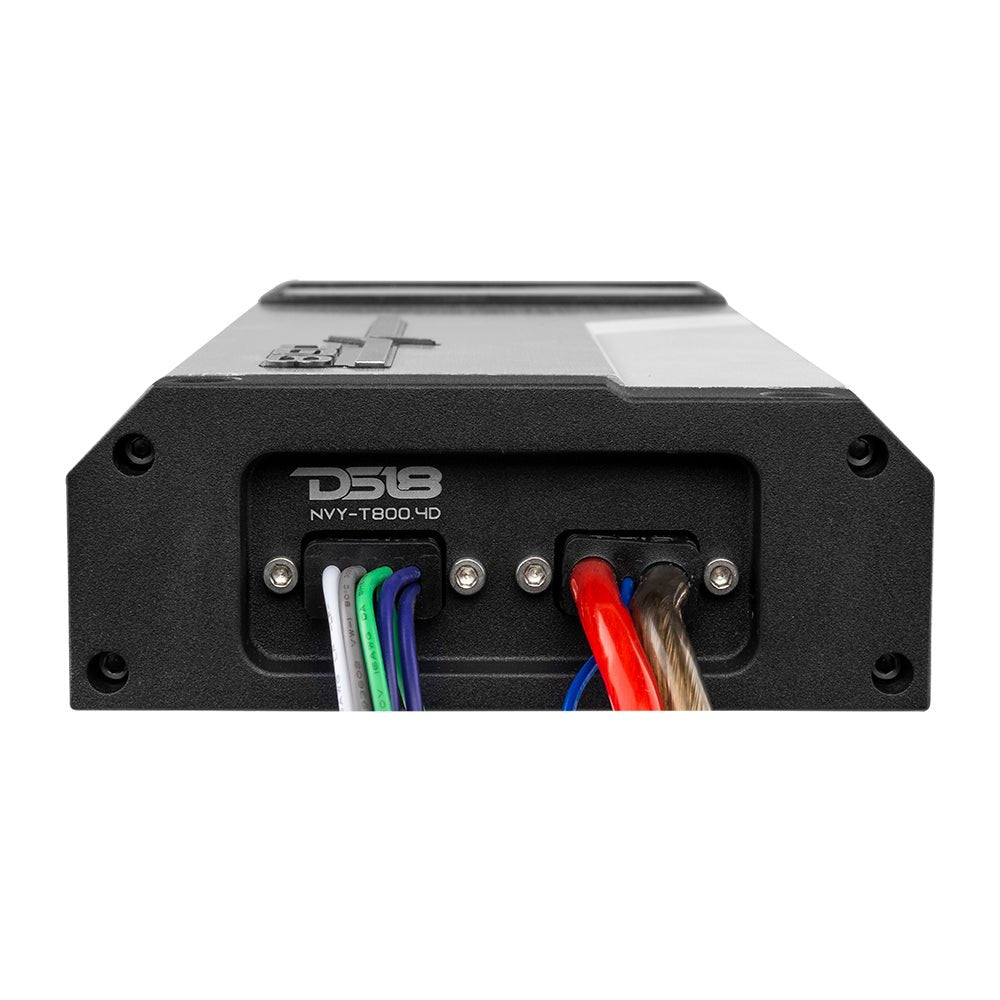

IPX6 Waterproof Amp

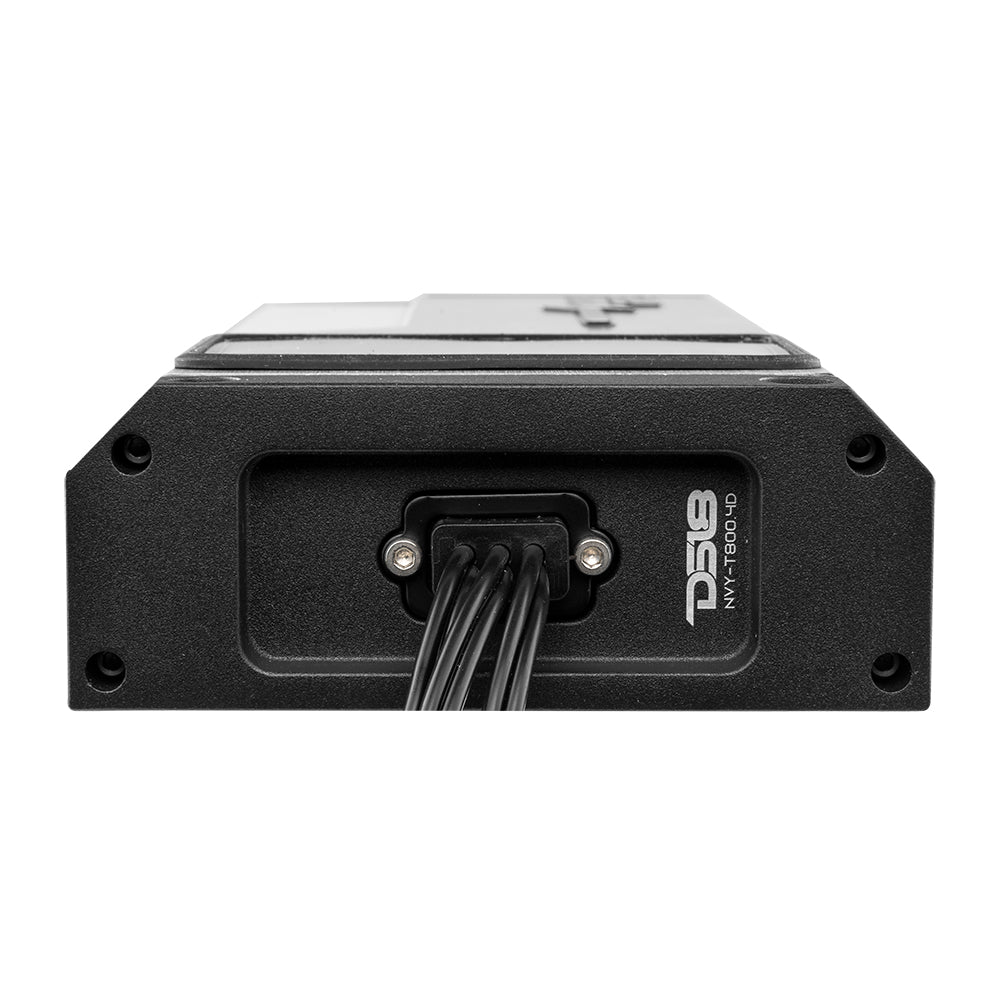

DS18 Powersports Amplifier

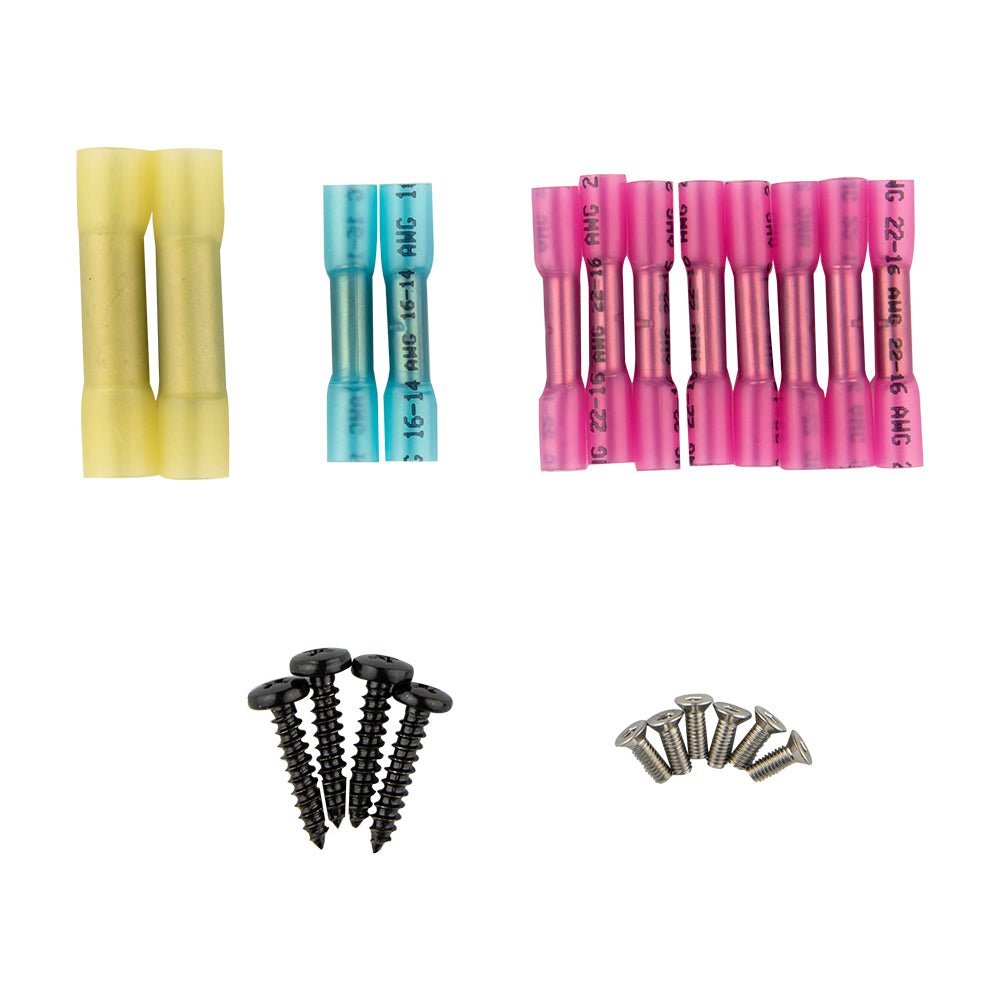

Amplifier Accessories to install
Marine Amplifier Waterproof Amplifier Brushed Aluminum Amplifier IPX6 Waterproof Amp DS18 Powersports Amplifier Amplifier Accessories to install

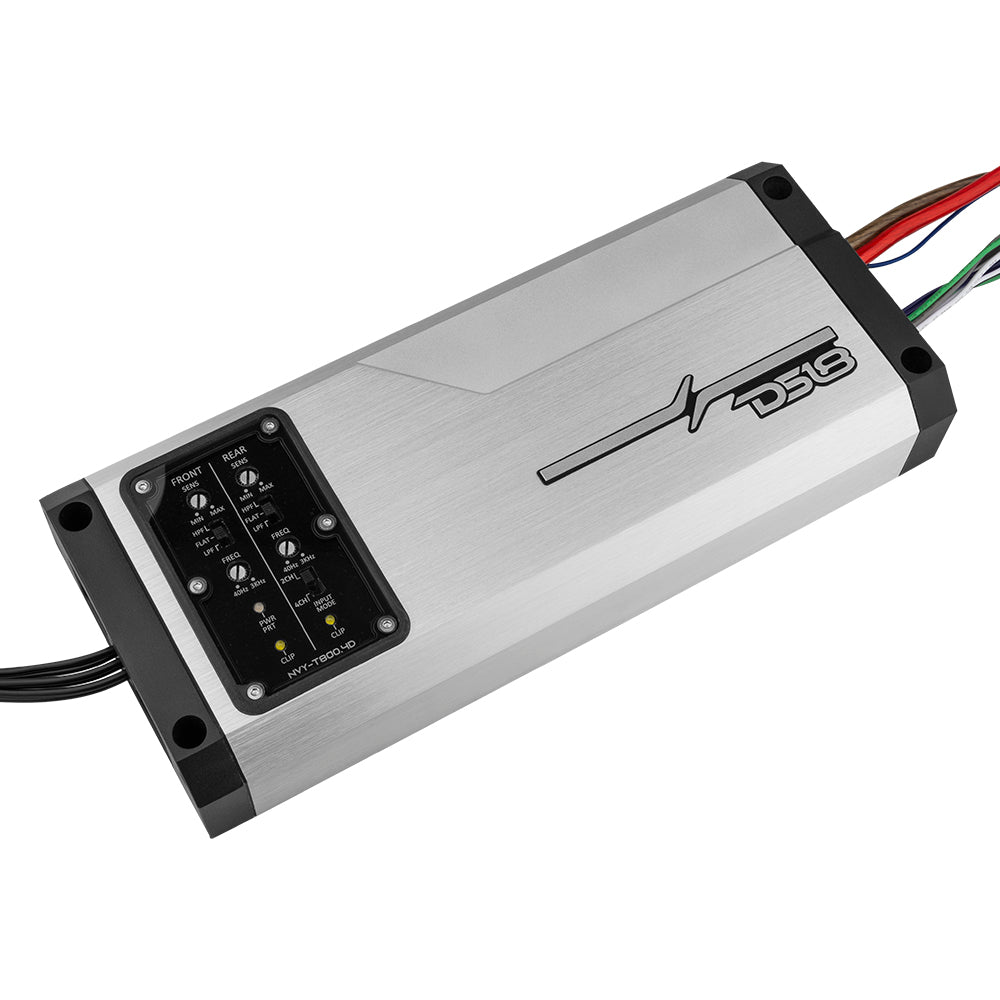

NVY-T800.4D

NVY 4-Channel Full-Range IP67 Marine and Powersports Amplifier 200 x 4 @ 4-Ohm Watts RMS

$700.00/ EACH

KEY FEATURES

  • IP67 Waterproof Rating

    IP67 Waterproof Rating

  • UV-Protected - All Elements

    UV-Protected - All Elements

  • Direct Power Harness Design

    Direct Power Harness Design

  • Waterproof Terminals

    Waterproof Terminals

  • Thermal Protection

    Thermal Protection

  • OFC Tinned Wires

    OFC Tinned Wires

Built For All Environments

IPX6-rated and thermally efficient, the T800.4D is built for environments where exposure is constant. Its sealed chassis, coated internals, and vibration-resistant design ensure reliable performance in all environments.

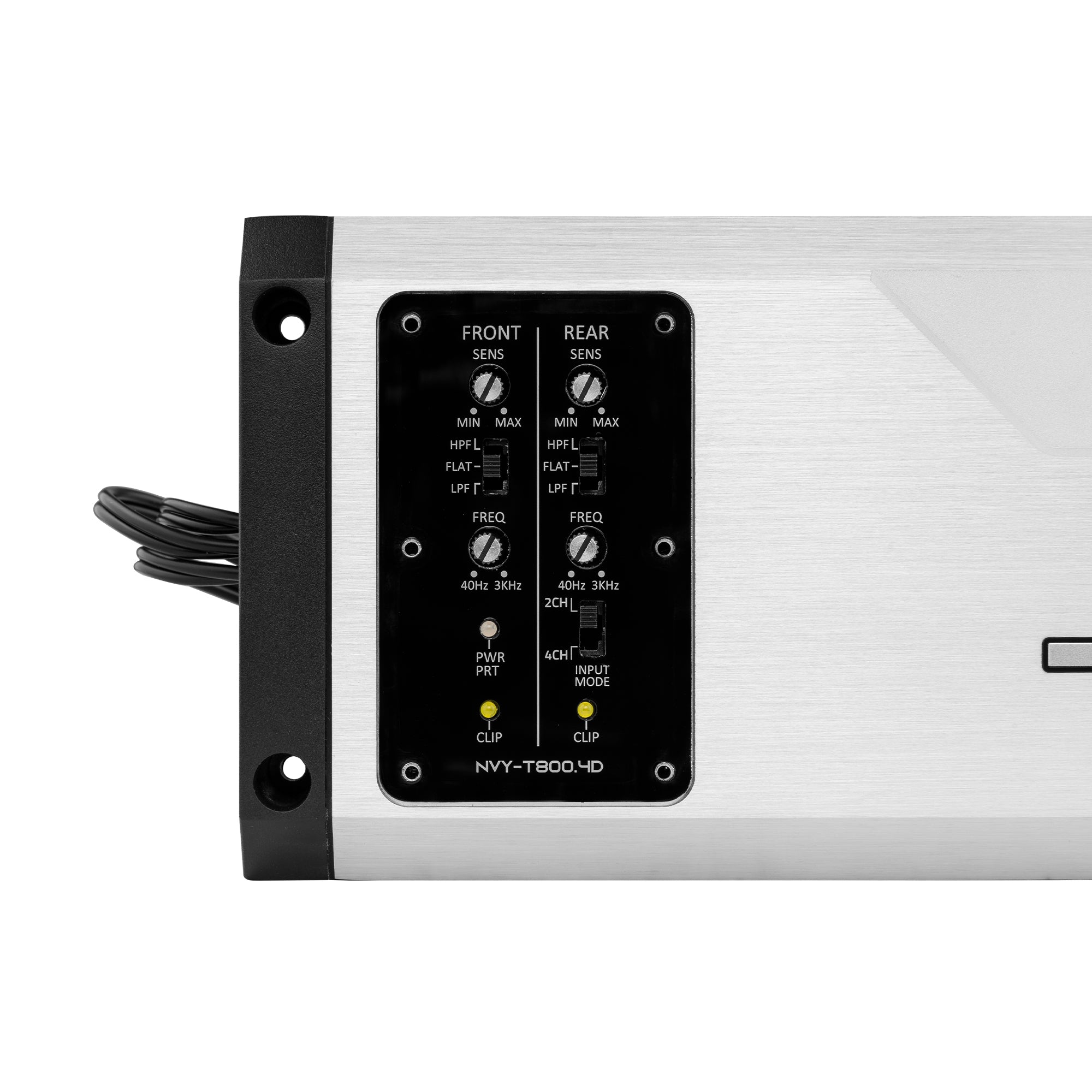

Elevated Control

Variable gain and crossover settings give you full command of your soundstage. Dial in for tight balance or boosted presence, every element preserves clarity and maintains NVY’s signature quality.

Ready For All Systems

The NVY-T800.4D’s low-profile and versatile mounting options make it easy to place in any system. The NVY-T800.4D is built for the realities of marine and powersport systems.

  • General Specifications
  • Total Watts (Peak): 2400W
  • RMS Power @ 4 ohm: 4 x 200W
  • RMS Power @ 2 ohm: 4 x 300W
  • RMS Power @ 4 ohm Bridge: 2 x 600W

  • Audio Specifications
  • Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: >80dB
  • Efficiency @ 4ohm: 85%
  • Damping Factor: >100
  • Input Impedance: 20Kohms
  • Channel Separation: >55dB
  • Total Harmonic Distortion (THD): 0.05%
  • Low Level Input Range: 200mV-5V
  • Selectable X-Over: HPF/LPF/FLAT
  • X-Over Filter Range: 40Hz-3KHz

  • Features
  • Amplifier Class: Digital
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 4
  • Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)
  • Led Indicator: Power / Protection / Clip
  • Power Input Terminal Size: 8GA Tinned OFC
  • Recommended Fuse Size: 80A
  • Thermal Protection: Yes (76.4°C)
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes
  • Clipping Protection: Yes
  • Body Color / Finish: Brushed Aluminum

  • Extra Features
  • 2Ch/4Ch Input Selector: Yes
  • Waterproof Rating: IP67
  • UV / Salt Fog Protection: Yes
  • Power Direct Harness Design: Yes
  • Surface Mount Component Technology: Yes
  • Metal Knobs: Yes

  • Measurement
  • Overall Length: 11.6" / 295mm
  • Overall Width: 4.9" / 125mm
  • Overall Height: 1.8" / 47mm
  • Heatsink Length: 10.2" / 261mm
  • Gross Single Unit Weight: 2.86Kg
