PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm

SKU: PRO-X46.4BM

SOLD OUT

PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm
PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm

PRO-X 4x6” Mid-Range Loudspeaker with Bullet | 100W RMS 4-Ohm

SKU: PRO-X46.4BM

SOLD OUT

Sale price$47.95
/EACH
Ships Free – Dispatches Next Business Day Within the USA
With some limitations - subject to verification and order volume

Size: 4x6"

Impedance: 4-Ohm

4-Ohm
8-Ohm
  • Key Features

    • 4x6" Mid-Range w/Bullet
    • MAX Power: 200 Watts
    • RMS Power: 100 Watts
    • Impedance: 4-Ohm
    • Ferrite Magnet
    • 90dB
  • Technical Data - Manual

    DOWNLOAD THE USER MANUAL

    Specifications

    Nominal Diameter
    4x6" / 102x152mm
    Nominal Impedance
    4 Ohm
    RMS Power Handling
    100w
    MAX Power Handling
    200w
    Sensitivity (1w/1m)
    90dB
    Frequency Response
    100Hz-12.5kHz
    Recommended HI Pass Crossover
    125Hz
    Sold in Pair or Single
    Single
    Grill Included
    No

    Motor

    Voice Coil Diameter
    1" / 25.4mm
    Voice Coil Former Material
    Kapton
    Winding Material
    CCAW
    Cone Material
    Paper
    Bullet Material
    Aluminum
    Bullet Color/Finish
    Red Gloss
    Surround Material
    Cloth
    Basket Material
    Steel
    Basket Color/Finish
    Red Gloss
    Magnet Material
    Ferrite
    Magnet Weight
    10 Oz
    Displacement Volume
    0.14L / 0.0049ft3

    Thiele & Small Parameters

    Equivalent Volume
    2.44L / 0.086ft3
    Excursion (one way)
    1.3mm
    Free Air Resonance
    158Hz
    Mechanical Factor
    7.012
    Electrical Factor
    0.533
    Total Factor
    0.495
    Mechanical Mass
    3.772g
    Mechanical Compliance
    0.0273mm/N
    BL Factor
    4.87
    Voice Coil Inductance
    0.134 mH
    Cone Area
    84.95Cm2
    DC Resistance
    3.3 Ohms

    Measurement

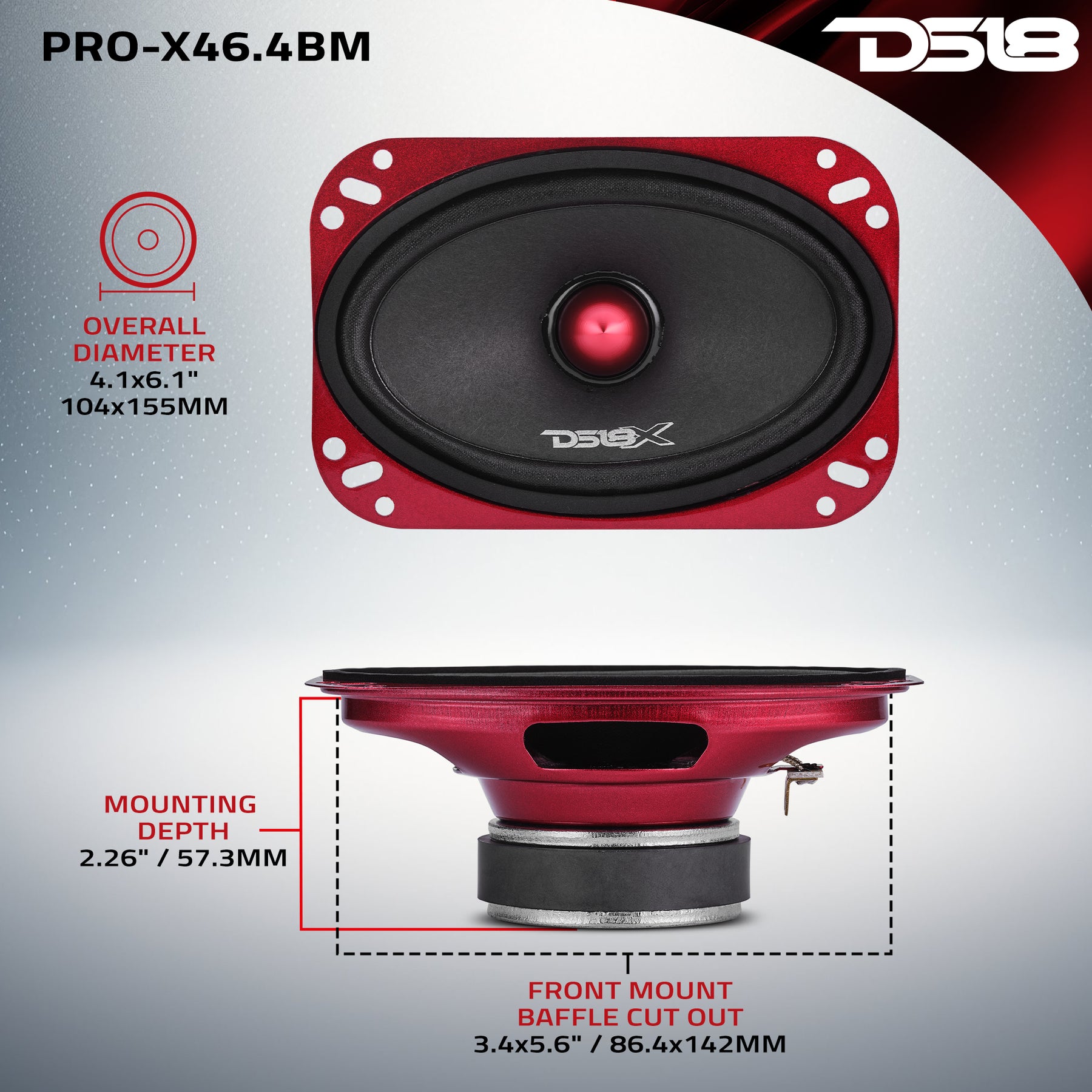

    Overall Diameter
    4.1x6.1" / 104x155mm
    Overall Depth
    2.45" / 62.2mm
    Front Mount Baffle Cutout
    3.4x5.6" / 86.4x142mm
    Mounting Depth
    2.26" / 57.3mm
    Motor Diameter
    2.76" / 70mm

    Load More
  • Product Overview

    Product Overview

    4x6” Mid-Range Loudspeaker with Bullet

    DS18’s PRO-X46.4BM is a high-output 4x6” mid-range loudspeaker with a bullet bringing impressive clarity that cuts through all noise. Pushing 100W RMS and 200W MAX at 4 ohms, with 90dB sensitivity the PRO-X’s deliver blistering mids that won’t get lost in any mix!

    Pro-Level Build
    The built-in gloss red aluminum bullet directs audio right to your soundstage, projecting sound further and more precisely, even in open-air rides. The CCAW voice coil is wound on a Kapton former for high-heat resistance and long-lasting performance, while the ferrite magnet powers fast, punchy response.


    Upgrade to the PRO-X46.4BM and let your system do the talking!
