Overview
-
The ZUMBA LOUDž¢ series standalone DS18 poweredspeakers have been designed to produce impressive bass response and full range sound to any space where loud and clear music is needed. With the ZUMBA LOUDž¢ series of PA speakers, the music can literally be felt pounding through the room. These internally powered mega blasters are available in a staggering 500w-1000w max power rating depending on which model best fits your needs. The power, bass, crossover settings are conveniently located on the rear panel to help you tune to the perfect sound and feel the rhythm you and your Zumba® students crave. With Bluetooth connectivity, LCD displays, USB card slots, and mic jacks, we designed these Zumba® loudspeakers to make it easy to get the music you love beating through the room.
Technical Details
Download ZL-12M Product Manual
| System | |
| Model: | ZL12M |
| Type: | Self Powered Loudspeaker |
| Size: | 12" |
| SPL Sensitivity | 96dB |
| Maximum SPL Output | 125 dB |
| Frequency Response (-10dB) | 42Hz - 20KHz |
| Frequency Response (-3dB) | 50Hz-19kHz |
| Amplifier | |
| System Power Rating | 250W Continuous(RMS)(200w LF +50W HF)500W MUSIC PROFRAM (400W LF + 100W HF) 1000 PEAK |
| Type: | Class A/B Toshiba |
| Input Impedance | 20k |
| Line Input Gain | Infinity to +4 dBu |
| MIC input Gain | infinity to +6 dBU |
| Maximum Input Level | 4dBu / Mic - 20 dBu |
| Equalizer | 3 Band Graphic |
| Connectors | 2 x XLR- 1/4" Combo Inputs;Mic/Line Selector 1 x XRL Mixed Output |

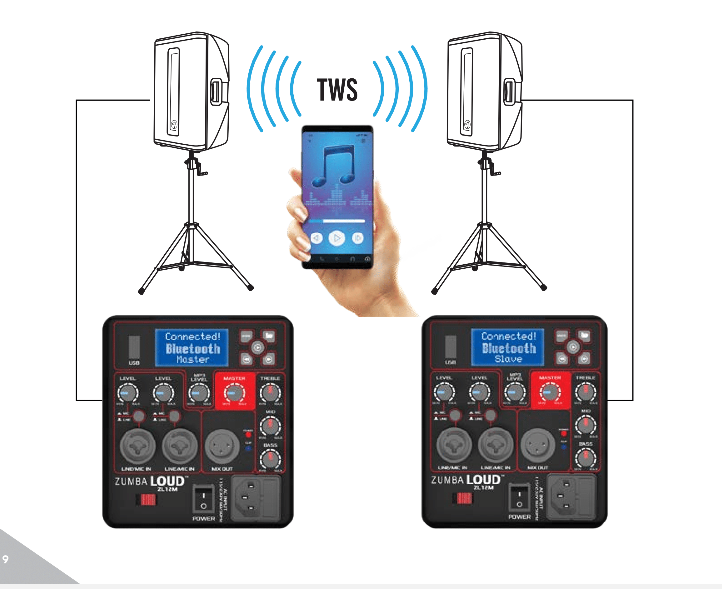

| MP3 Player | USB Mp3/WMA ,Bluetooth v4.2 With TWS (True Wirless Stereo) |
| LED Indicators | Front Power LED, Rear Power LED(Blue) Rear Clip (RED) |
| Cooling | Passive |
| AC Power Input | 100-120VAC 50/60Hz;230-240 VAC 50/60Hz |
| AC Power Consumption (120-v) | Full power - 3.5A ( Max) |
| Speaker | |
| LF Driver | 1 PRO-Z12 (12") woofer with 2.5" voice coil,pure copper wire coil,43oz ferrite magnet, paper cone |
| HF Driver | 1x PRO-DR1.75(1") HORN 24 OZ FERRITE MAGNET,Titanium Diaphragm,1.75" Kapton 2 Layer Voice Coil And Ferrofluid |
| Coverage Pattern | 90 x 60 Degrees |
| Crossover Frequency | 2.1 kHz |
| Enclosure | |
| Material | Polyproylene, Black |
| Monitor Angle | Both sides |
| Suspension/Mounting | 35mm Pole Socket ,3 X M8 Suspension points |
| Dimensions (L x W X H) | 14.1: x 14.9" x 23.2" |
| Weight | 20.3 kg / 44.7 LB |
