XL Mid-Range Loudspeaker (TEST)
XL Mid-Range Loudspeaker (TEST)
XL Mid-Range Loudspeaker (TEST)
XL Mid-Range Loudspeaker (TEST)
XL Mid-Range Loudspeaker (TEST)
XL Mid-Range Loudspeaker (TEST)

XL Mid-Range Loudspeaker (TEST)

SKU: 6XL600-4

$79.95
/

Guaranteed Christmas delivery: Order by Dec 17th.

Ships Free Next Business Day
With some limitations - subject to verification and order volume
In stock

Loading variants....

Size:6.5"
Nominal Impedance :4-Ohm
Quantity:

Have a Question? Ask a Specialist 305-928-8734 / Live Chat

FAST FREE SHIPPING
30-DAY RETURNS
2 YEAR WARRANTY
SECURE PAYMENT

KEY FEATURES

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

DOWNLOAD THE USER MANUAL

GENERAL SPECIFICATIONS

SKU 6XL600-4 Nominal Diameter 6.5" / 165mm Nominal Impedance 4 Ohms RMS Power Handling 300 Watts MAX Power Handling 600 Watts Sensitivity (1w/1m) 97dB Frequency Response 60Hz-12.5KHz Recommended Hi Pass Crossover 100Hz Pair or Single Single

MOTOR

Voice Coil Diameter 2" / 50.8 mm Voice Coil Former Material Kapton Winding Material CCAW Cone Material Non-pressed Paper Dust Cap Material Paper Surround Material Cloth Basket Material Aluminum Basket Color | Finish Satin Black Magnet Material Ferrite Magnet Size 34 Oz Displacement Volume 0.45L / 0.015ft3

THIELE & SMALL PARAMETERS

Vas 5.71L / 0.201ft3 Xmax 3.7 mm Fs 100Hz Qms 4.93 Qes 0.5 Qts 0.454 Mms 11.917 Cms 0.214 mm/N BL 6.906 Le 0.1647mH Sd 136.85 cm² Re 3.2 ohms Mmd 10.996g

MEASUREMENTS

Overall Diameter 6.7" / 170mm Overall Depth 3.5" / 89mm Front Mount Baffle Cutout 5.9" / 150mm Mounting Depth 3.14" / 80mm Motor Diameter 4.96" / 126 mm

SKU 6XL600-8 Nominal Diameter 6.5" / 165mm Nominal Impedance 4 Ohms RMS Power Handling 300 Watts MAX Power Handling 600 Watts Sensitivity (1w/1m) 97dB Frequency Response 60Hz-12.5KHz Recommended Hi Pass Crossover 100Hz Pair or Single Single

MOTOR

Voice Coil Diameter 2" / 50.8 mm Voice Coil Former Material Kapton Winding Material CCAW Cone Material Non-pressed Paper Dust Cap Material Paper Surround Material Cloth Basket Material Aluminum Basket Color | Finish Satin Black Magnet Material Ferrite Magnet Size 34 Oz Displacement Volume 0.45L / 0.015ft3

THIELE & SMALL PARAMETERS

Vas 5.71L / 0.201ft3 Xmax 3.7 mm Fs 100Hz Qms 4.93 Qes 0.5 Qts 0.454 Mms 11.917 Cms 0.214 mm/N BL 6.906 Le 0.1647mH Sd 136.85 cm² Re 3.2 ohms Mmd 10.996g

MEASUREMENTS

Overall Diameter 6.7" / 170mm Overall Depth 3.5" / 89mm Front Mount Baffle Cutout 5.9" / 150mm Mounting Depth 3.14" / 80mm Motor Diameter 4.96" / 126 mm

TECHNICAL DATA

Load More

PRODUCT OVERVIEW

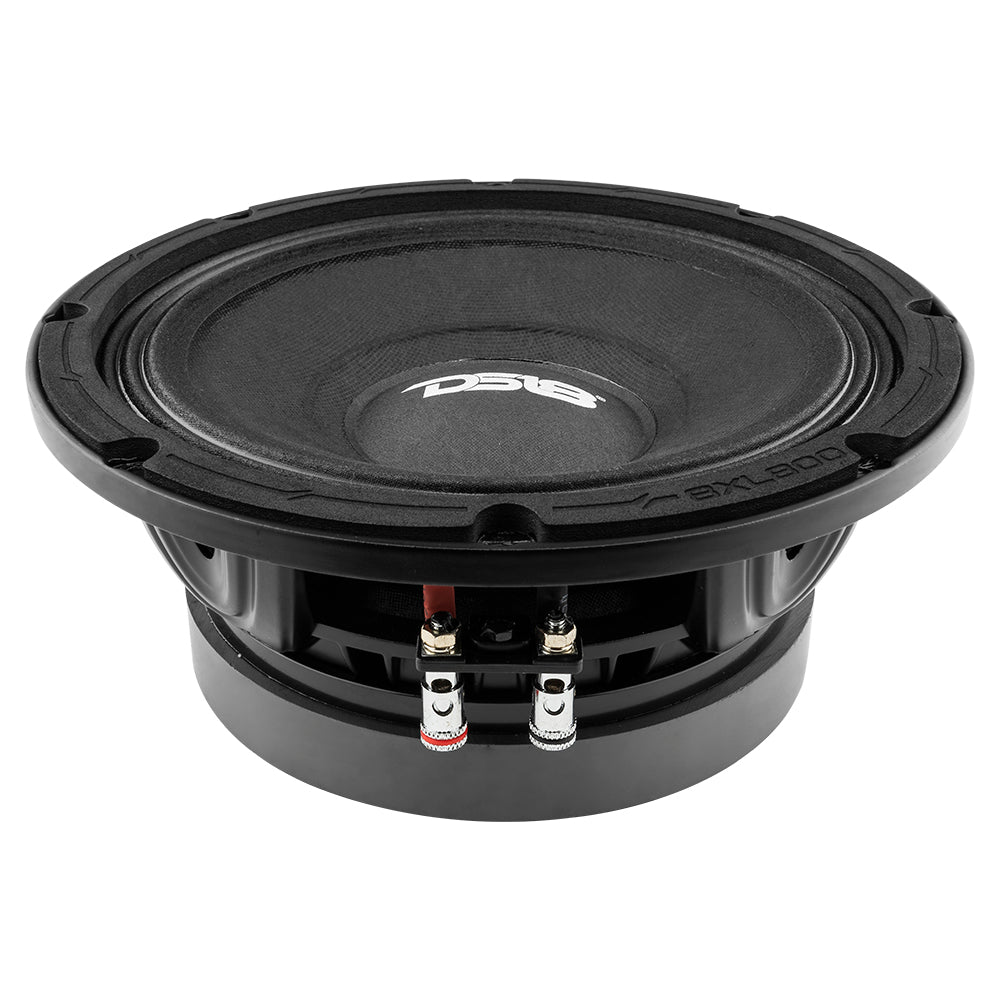

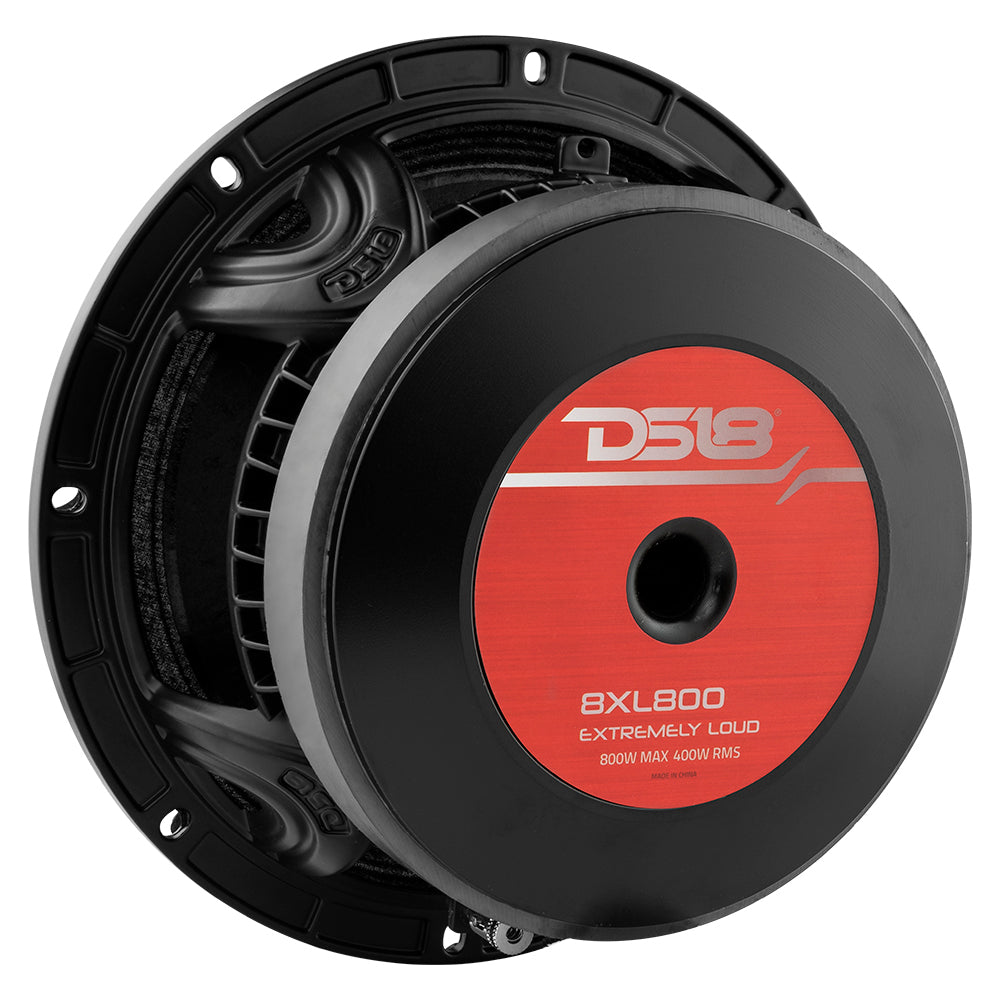

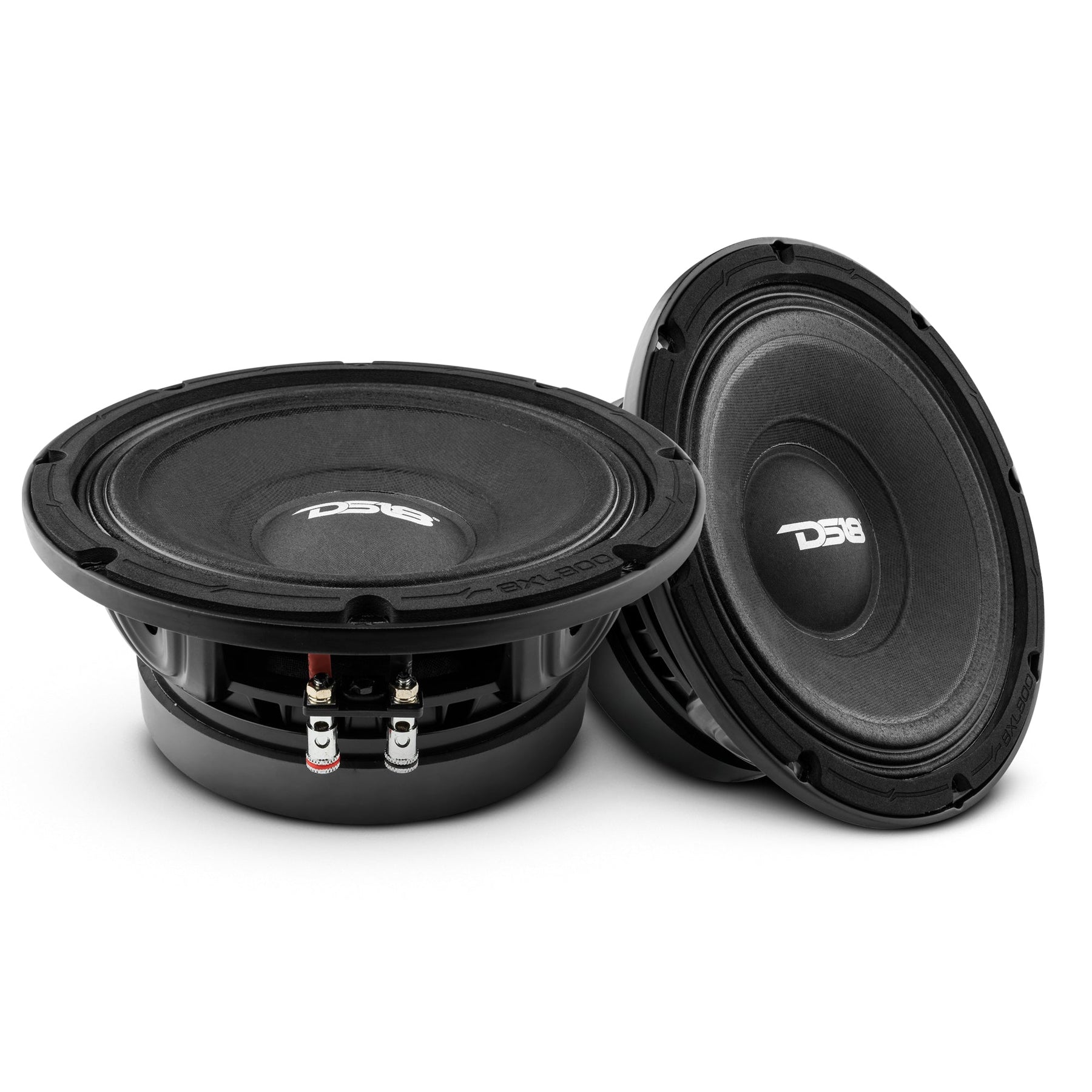

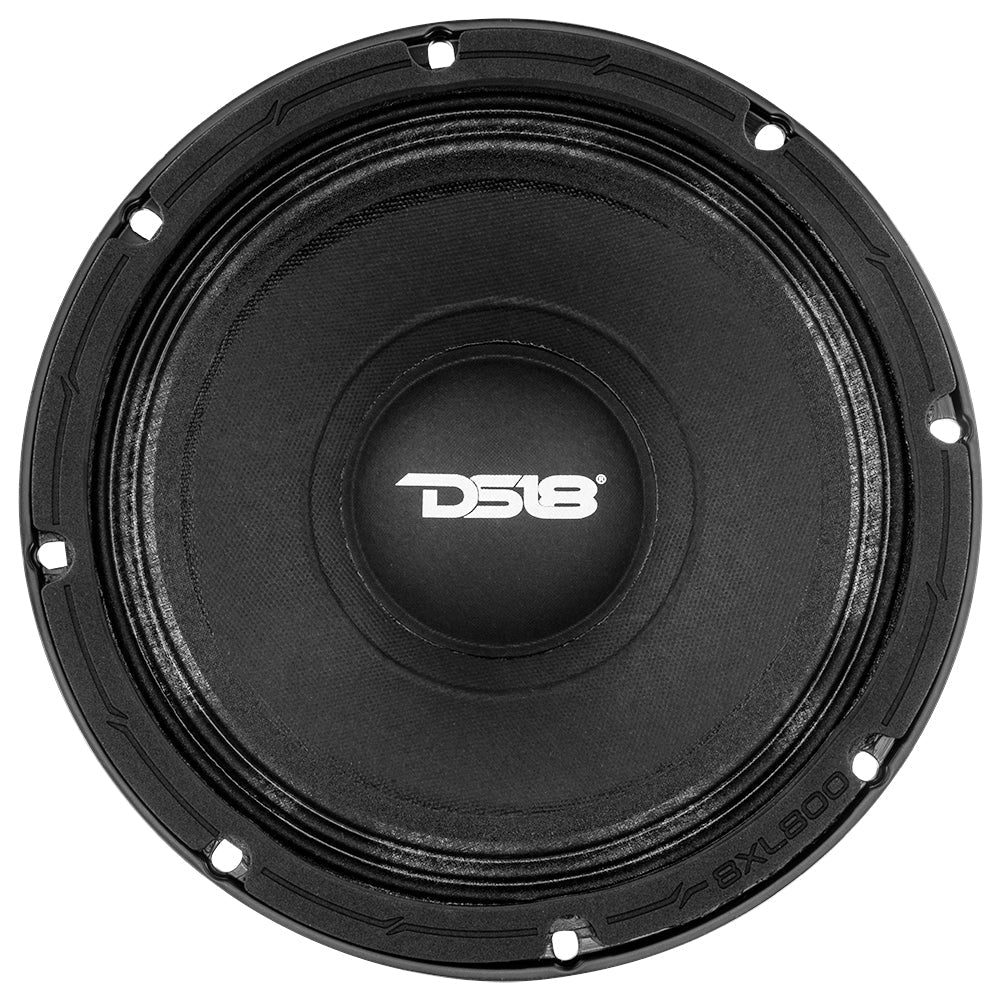

DS18’s 8XL800-4 is power and precision personified. Designed for an unparalleled sound experience, this speaker is sure to change the way you experience music.

DS18’s 8XL800-4 stands head and shoulders above the mid-range competition. This 8-inch loudspeaker comes in 4-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup.

With power handling of 400W RMS and 800W MAX these speakers are guaranteed to blow you away. The frequency response of 60Hz-8KHz ensures an extensive range that captures every nuance of your favorite music genres while the sensitivity rating of 99 dB guarantees crystal-clear sound reproduction, even in large venues.

Crafted with precision, DS18’s 8XL800-4 features a 2" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at 56 ounces ensures powerful and accurate bass responses that will leave you amazed.

Elevate your audio game with the DS18 8XL800-4!
