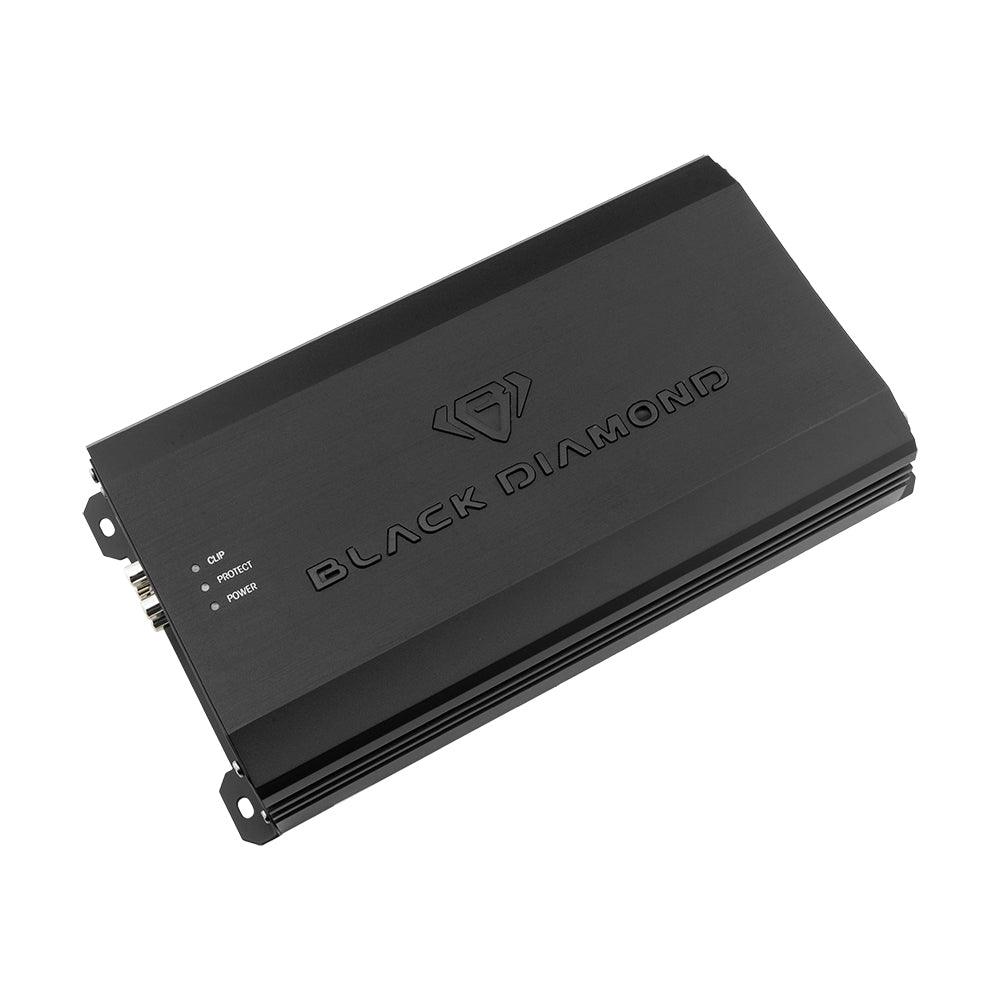

Black Diamond 1-Channel Class D Monoblock Amplifier | 1000W RMS at 1-Ohm
Black Diamond 1-Channel Class D Monoblock Amplifier | 1000W RMS at 1-Ohm
-
Key Features
- Powerful Output: 900W RMS @ 1Ω, 600W @ 2Ω, 380W @ 4Ω
- Bass Control
- Compact Design
- Built-In Protections
- Remote Ready
-
Technical Data - Manual
-
Product Overview
Product Overview
1-Channel Class D Monoblock Amplifier
Black Diamond’s DIA-P1000X1D delivers 380W RMS at 4 ohms, stepping up to 650W RMS at 2 ohms, and 1000W RMS at 1 ohm. This amp brings clean, distortion-free power perfect for any subwoofer setup.
Precise Bass Control
Gain control is adjustable from 0.2 to 6 volts input sensitivity, letting you match your head unit perfectly. The bass boost switch offers 0, 6, or 12 decibels of added punch. A subsonic filter adjustable from 10 to 50 hertz protects your subwoofer from damaging ultra-low frequencies. The low-pass filter is adjustable between 40 and 180 hertz to fine-tune your bass output with tight, clear sound.
Built to Last
This amplifier is engineered to run cool and safe: thanks to thermal, overload safeguard, short circuit, and DC output protection. Its rugged heatsink ensures excellent heat dissipation during long, hard-hitting sessions.
Easy Fit

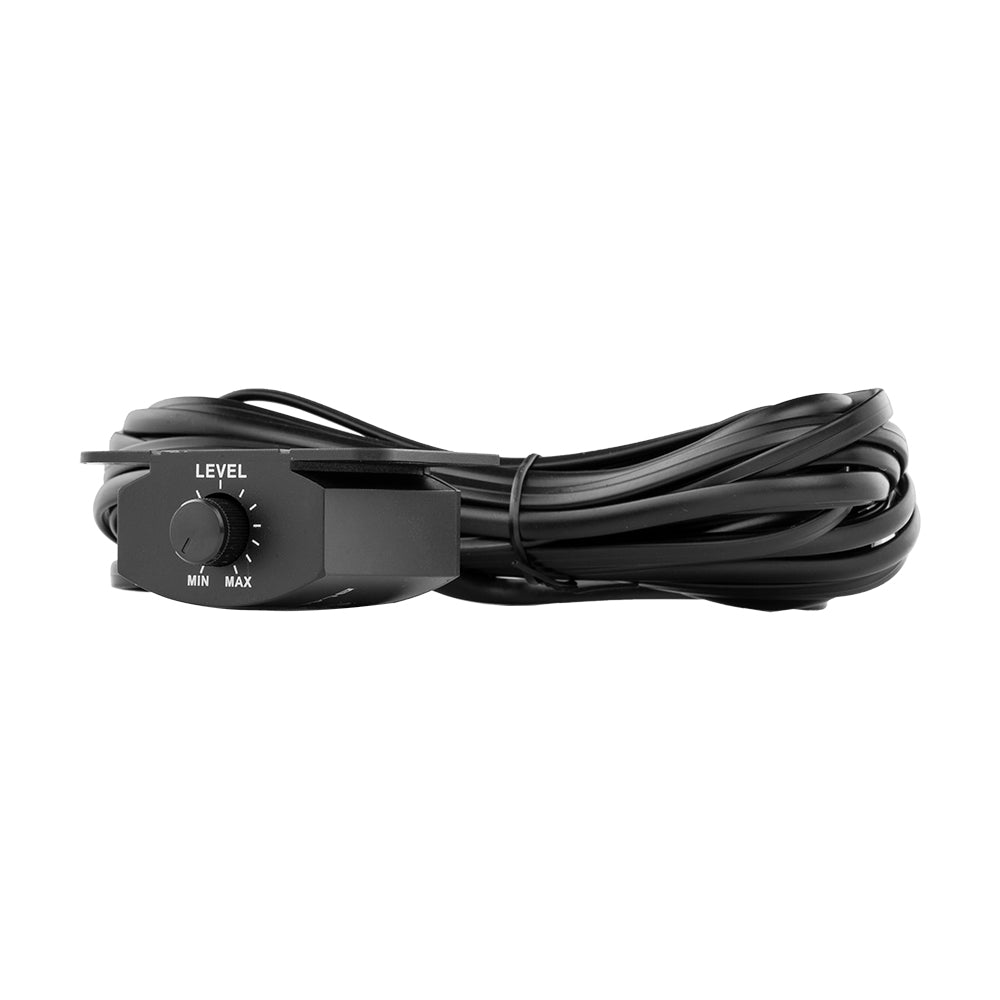

At just 11.2 inches long, the DIA-P1000X1D fits tight spaces without hassle. It includes a remote bass level input, allowing convenient volume adjustment from the driver’s seat.
